Главная
›
Mercedes
›
TRUCK
›
2422 /L,2426 /L,2427 L, 2524 L,2527 L,2531 L
›
654.418
›
46 STEERING
›

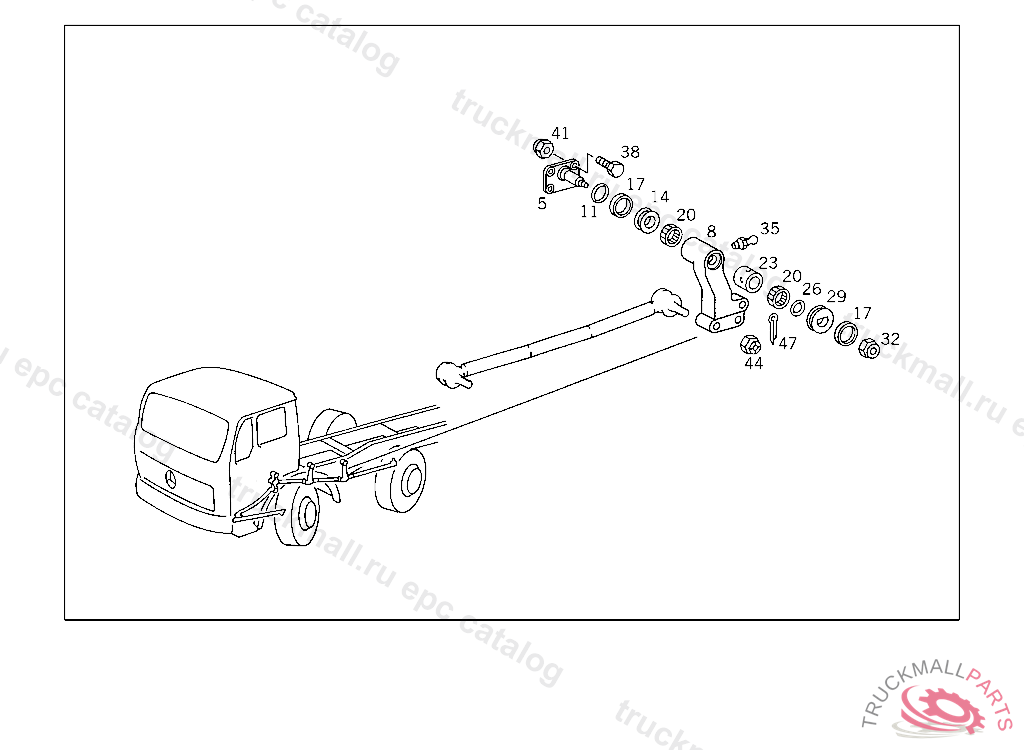

360 STEERING SUPPORT,STEERING ARM AND DRAG LINK IL. 1
Mercedes A0169973648 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
2422 /L,2426 /L,2427 L, 2524 L,2527 L,2531 L 654.418
46 STEERING - 360 STEERING SUPPORT,STEERING ARM AND DRAG LINK IL. 1
Поз.
Артикул
Описание
5
A6224610140
STEERING SUPPORT INTERMEDIATE LEVER III
8
A6994602019
INTERMEDIATE LEVER"II"
11
A0069977545
SEAL RING INSIDE TO 622 463 01 10
14
A6224630162
THRUST WASHER , Replaced By: A6574630162
17
A0069973048
SEAL RING INSIDE AND OUTSIDE TO 622 463 01 10
20
A0049813810
NEEDLE BEARING INSIDE AND OUTSIDE
23
A3634630053
SPACER TUBE INSIDE
26
A0169973648
SEAL RING OUTSIDE TO 622 463 01 10
29
A6224630062
THRUST WASHER , Replaced By: A6574630062
32
N910113018004
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
32
N913004018003
NUT , Replaced By: N910113018004
35
N071412008102
GREASE NIPPLE
35
N071412008101
GREASE NIPPLE , Replaced By: N071412008102
38
N000960014237
SCREW STEERING SUPPORT TO FRAME M 14X50
38
N308676014012
SCREW SUPPORT TO SIDE MEMBER M 14X45
38
N000961014101
SCREW , Replaced By: N308676014012
41
N910113014000
NUT STEERING SUPPORT TO FRAME
41
N913004014005
NUT , Replaced By: N910113014000
44
N000937024002
NUT DRAG LINK TO LEVER
44
N000937024005
NUT , Replaced By: N000937024002
47
N000094005035
COTTER PIN DRAG LINK TO LEVER
