Mercedes N000931010268 - SCHRAUBE M 10 X 70

2422 /L,2426 /L,2427 L, 2524 L,2527 L,2531 L 654.418

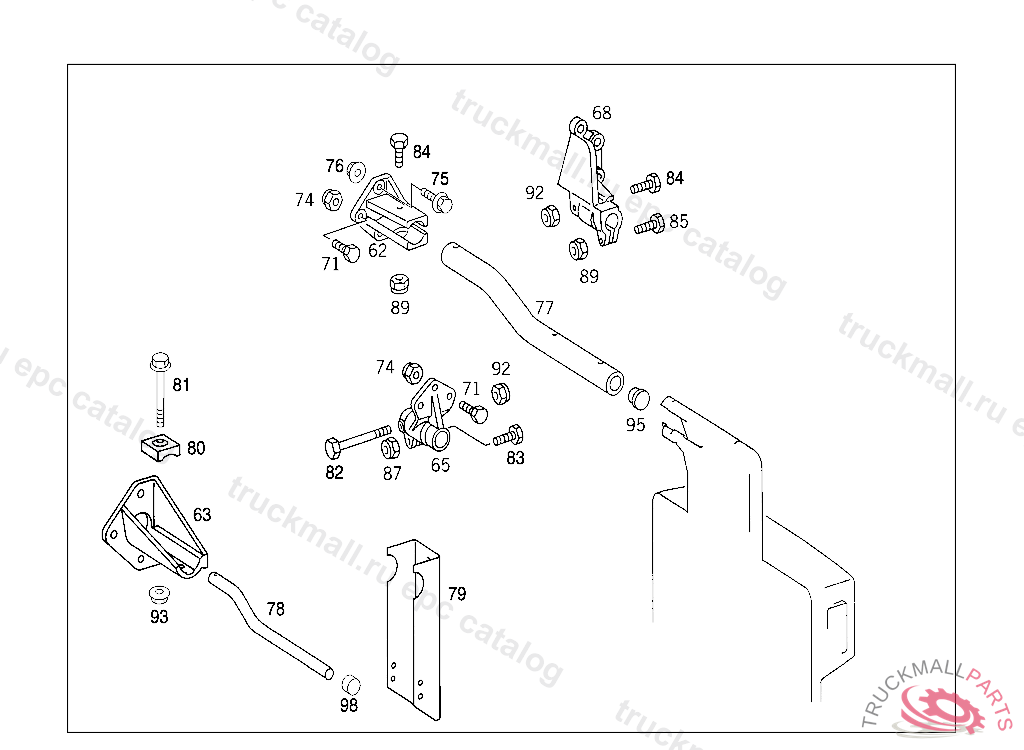

52 SHEET METAL,AIR INTAKE - 060 FENDER FIXTURE IL. 2

Поз.
Артикул
Описание
62
A6555220092
BEARING BRACKET TAIL LAMP, FOR USE WITH SHORT MERCEDES-BENZ CAB
71
N000933010145
SCREW REAR EXHAUST PIPE TO MUFFLER
74
N910113010000
NUT STRAP TO BRACKET
77
A6525221640
BRACKET TAIL LAMP
77
A6525220440
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525221640
77
A6525220340
BRACKET , Replaced By: A6525221640
84
N304017010050
SCREW , Replaced By: N304017010055
84
N000931010268
SCREW , Replaced By: N304017010050
89
N910113010000
NUT STRAP TO BRACKET
89
N913004010008
NUT , Replaced By: N910113010000
95
A0009970620
EXPANSION PLUG BRACKET
