Mercedes N000931008254 - Деталь-SCREW

2422 /L,2426 /L,2427 L, 2524 L,2527 L,2531 L 654.418

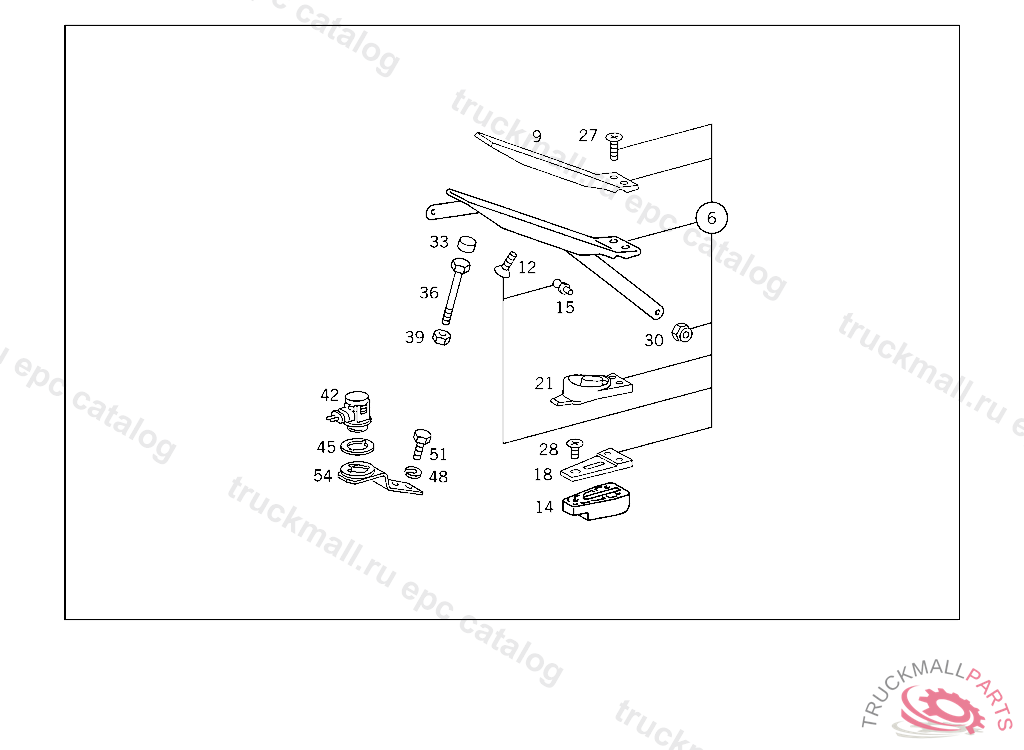

30 CONTROL - 001 ACCELERATOR PEDAL AND MOUNTING PARTS

Поз.
Артикул
Описание
6
A6583000004
ACCELERATOR PEDAL PARTS KIT
6
A6243000204
ACCELERATOR PEDAL , Replaced By: A6583000004
6
A6243000304
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
9
A6153000104
PAD ACCELERATOR PEDAL
12
N007991005007
SCREW ACCELERATOR PEDAL
14
A6553010093
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
15
A0009911015
BALL PIVOT LOAD SENSOR
18
A6153010084
SHIM ACCELERATOR PEDAL
21
A6153010097
BOOT ACCELERATOR PEDAL
27
N000965006003
SCREW ACCELERATOR PEDAL TO CAB M 6X25
28
N000965006077
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
28
N000965006058
SCREW ACCELERATOR PEDAL TO CAB M 6X20
30
N913004006001
NUT PUMP TO BRACKET
30
N913004006002
NUT , Replaced By: N913004006001
33
A3813010041
STOP ACCELERATOR PEDAL
36
N304014008002
SCREW VALVE TO BRACKET
36
N000931008254
SCREW VALVE TO BRACKET, Replaced By: N304014008002
39
N000934008035
NUT INTERMEDIATE SPEED STOP
42
A0003000241
KICK-DOWN SWITCH. SWITCH KICK-DOWN
45
A1159970640
SEAL RING KICK-DOWN SWITCH
48
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
51
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
51
N000933008212
SCREW , Replaced By: N304017008016
54
A6523000040
BRACKET KICK-DOWN SWITCH
54
A6553000140
BRACKET KICK-DOWN SWITCH
