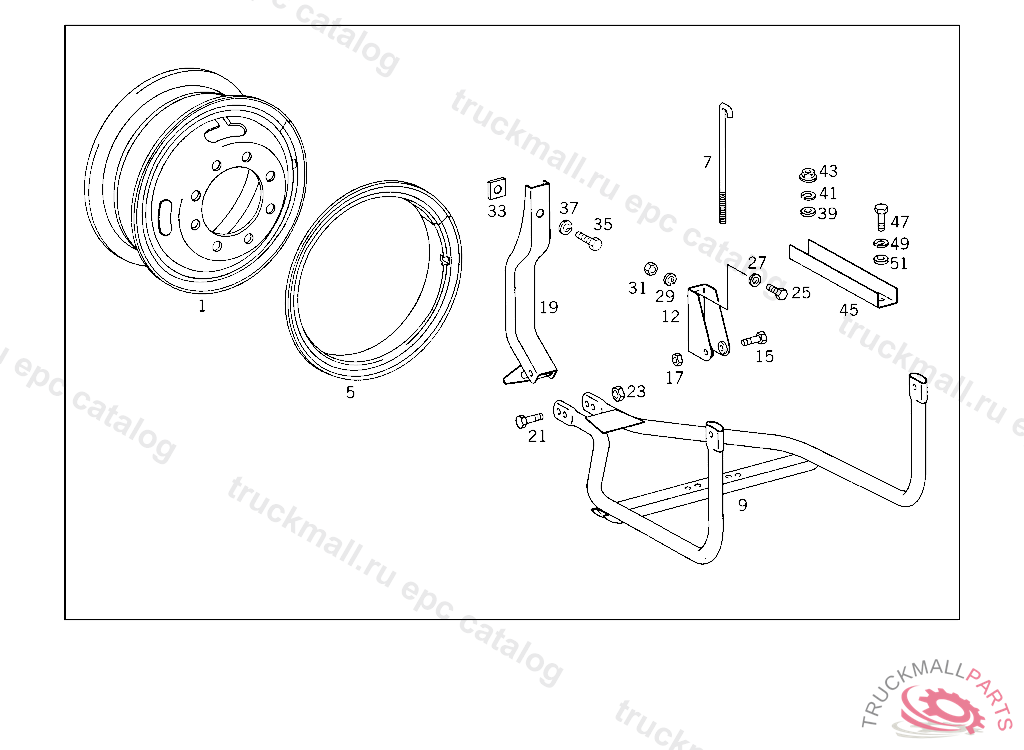

Поз.
Артикул
Описание
1
DISC WHEEL , Replaced By: A0024012201, +001A0004015606
1
DISC WHEEL , Replaced By: A0024012301, +001A0004015606
1
DISC WHEEL"KRONPRINZ"
1
DISC WHEEL , Replaced By: A0024012101, +001A0004015606
1
DISC WHEEL"LEMMERZ"
1
DISC WHEELSUEDRAD
5
SIDE RING
7
HOOK BOLT , Replaced By: A3524030829
7
HOOK BOLT SPARE WHEEL MOUNTING, 734559
9
BRACKET , Replaced By: A3544000339
9
BRACKET SPARE WHEEL MOUNTING
12
BRACKET SPARE WHEEL MOUNTING
15
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
17
NUT , Replaced By: N308673014001
17
NUT BRACKET TO SIDE MEMBER,K 035196
19
CLAMPING BRACKET , Replaced By: A3544000687
19
CLAMPING BRACKET SPARE WHEEL MOUNTING
21
SCREW CONSOLE TO RIGHT SIDE MEMBER M 14X55
23
NUT BRACKET TO SIDE MEMBER,K 035196
23
NUT , Replaced By: N308673014001
25
SCREW BRACKET TO FRAME M 12X35
25
SCREW , Replaced By: N308676012026
25
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
27
WASHER
29
LOCK WASHER FITTING TO BRACKET
31
NUT STRAP TO SUPPORT
33
PLATE WITH THREADED HOLES BRACKET TO FRAME
35
SCREW BRACKET TO FRAME
37
LOCK WASHER , Replaced By: N912004022101
37
LOCK WASHER SPARE WHEEL CARRIER
39
WASHER SPARE WHEEL CARRIER
41
LOCK WASHER SPARE WHEEL CARRIER
41
LOCK WASHER , Replaced By: N912004022101
43
NUT DISC WHEELS TO FRONT AND REAR AXLES,4 368902
43
NUT , Replaced By: N074361022205
45
CONNECTING RAIL SPARE WHEEL MOUNTING
47
SCREW SUPPORTING ARM TO BELL HOUSING M 18X60
47
SCREW , Replaced By: N000960018109
47
SCREW , Replaced By: N308676018009
49
LOCK WASHER BELL HOUSING TO TRANSMISSION
51
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
999
SIDE RING
999
DISC WHEELSUEDRAD, Replaced By: A0004006002
999
DISC WHEELSUEDRAD
999
DISC WHEELKRONPRINZ
999
DISC WHEEL , Replaced By: A0034010601
999
DISC WHEELLEMMERZ
999
DISC WHEEL , Replaced By: A0024010101
