Поз.
Артикул
Описание

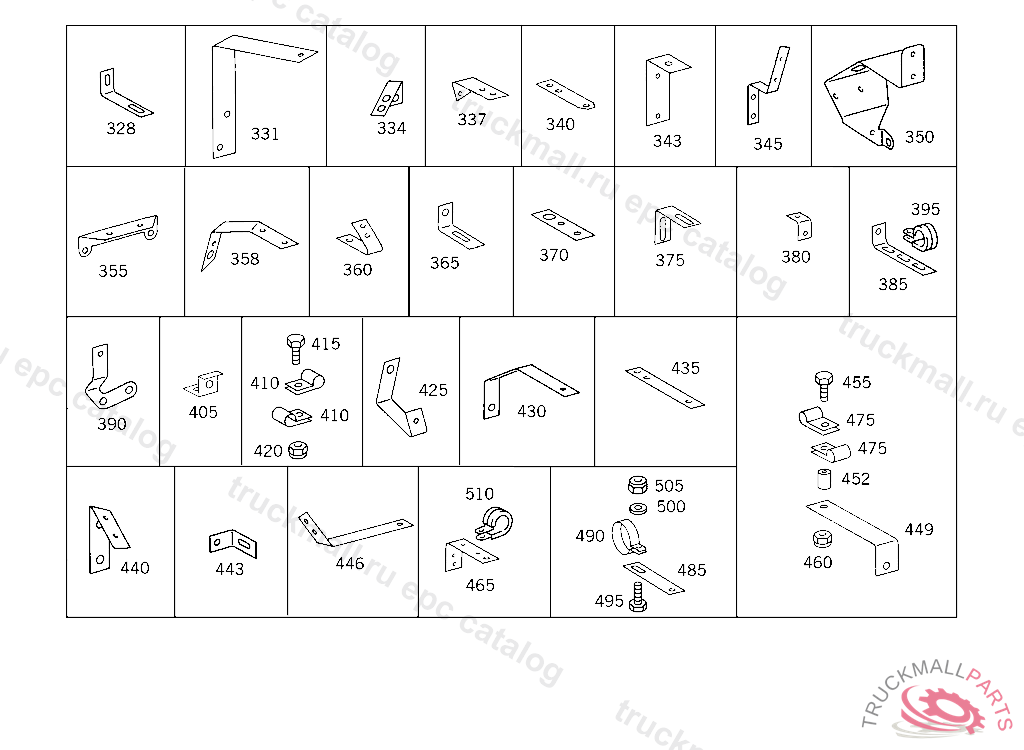

328
BRACKET FENDER
331
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
334
BRACKET STEERING-TO-POWER-CYLINDER DELIVERY LINE
337
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
340
BRACKET OIL LINE TO ENGINE,LEFT
343
BRACKET COOLING WATER LINE
345
BRACKET OIL LINE TO ENGINE
345
BRACKET RETURN LINE TO ENGINE
345
BRACKET OIL LINE TO ENGINE,RIGHT
350
BRACKET 3/2-WAY SOLENOID VALVE
355
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
358
BRACKET OIL LINE TO ENGINE,RIGHT
360
BRACKET DELIVERY LINE TO ENGINE
360
BRACKET DELIVERY LINE TO ENGINE
365
BRACKET FUEL LINES TO TRANSMISSION
365
BRACKET FUEL LINES TO TRANSMISSION
365
BRACKET FUEL LINES TO TRANSMISSION
370
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
375
BRACKET BRACKET TO CROSS MEMBER
380
ANGLE LINE MOUNTING
380
ANGLE LINE MOUNTING
385
BRACKET OIL LINE MOUNTING
385
BRACKET OIL LINE MOUNTING
390
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
395
CLAMP OIL FILLER PIPE TO BRACKET
395
CLAMP DELIVERY AND SUCTION LINES TO FRAME
395
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
405
BRACKET OIL LINE TO TRANSMISSION CASE
410
CLAMP DELIVERY AND SUCTION LINES TO STEERING
415
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
415
SCREW , Replaced By: N000000001479
415
SCREW , Replaced By: N910105006005
415
SCREW CAB FLOOR COVERING M 6X25
420
NUT AT FILTER BRACKET
420
NUT PUMP TO BRACKET
420
NUT , Replaced By: N913004006001
425
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
425
BRACKET BRACKET TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
425
BRACKET LINE MOUNTING
430
SUPPORT STEERING-TO-POWER-CYLINDER DELIVERY LINE, SIMPLE PART-PLEASE HAVE SHOP MADE
435
SHIM SUPPORT TO FRAME 240X40X5 MM
435
SHIM SUPPORT TO FRAME 240X40X5 MM
435
SHIM SUPPORT TO FRAME 240X40X5 MM
440
BRACKET LINES TO SIDE MEMBER
443
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
446
BRACKET OIL LINE TO FRAME
449
BRACKET LINE MOUNTING
449
BRACKET OIL LINE TO FRAME
449
BRACKET LINE MOUNTING
449
BRACKET FEED AND RETURN LINES TO RETARDER 110 MM LANG, TO BE ADAPTED DURING ASSEMBLY
449
BRACKET REAR EXHAUST PIPE,5 193595
452
BUSHING LINE MOUNTING
452
BUSHING PUMP TO FRAME SIDE MEMBER
452
TUBE. BUSHING CAB FLOOR COVERING
455
SCREW PUMP TO BRACKET
455
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
455
SCREW , Replaced By: N000000001479
455
SCREW , Replaced By: N910105006005
455
SCREW , Replaced By: N304017006026
455
SCREW , Replaced By: N304017006026
455
SCREW LINE MOUNTING M 6X45
455
SCREW LICENSE PLATE TO BRACKET
455
SCREW , Replaced By: N304017006020
455
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X40
455
SCREW BRACKET TO CROSS MEMBER M 6X35
455
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
460
NUT AT FILTER BRACKET
460
NUT PUMP TO BRACKET
460
NUT , Replaced By: N913004006001
465
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
475
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
485
BRACKET AT CROSS MEMBER
490
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
490
CLAMP EXHAUST PIPE,4 726045
495
SCREW BRACKET TO FRAME M 8X35
500
WASHER EXHAUST MUFFLER TO STRAP
505
NUT BRACKET TO BRACKET
510
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
510
CLAMP STAY TO BRACKET
510
CLAMP OIL FILLER PIPE TO BRACKET
510
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
510
CLAMP DELIVERY AND SUCTION LINES TO FRAME
510
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
510
CLAMP LINE MOUNTING
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
