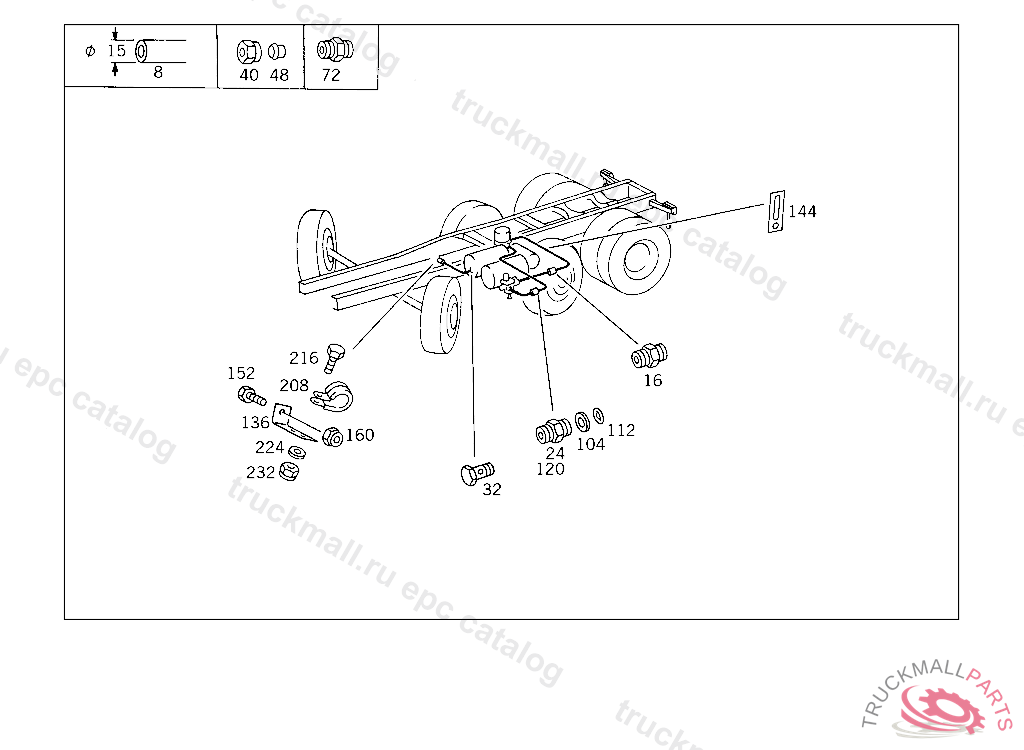

Поз.
Артикул
Описание
8
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
16
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
24
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
24
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
32
NUT CHECK VALVE TO AIR RESERVOIR
32
NUT CHECK VALVE TO AIR RESERVOIR
40
UNION NUT LINE CONNECTION
48
GLAND LINE CONNECTION
72
FITTING DELIVERY LINE TO FRAME
72
FITTING PRESSURE LIMIT,CIRCUIT II
72
FITTING AIR RESERVOIR,CONNECTION: "13"
72
FITTING DIAPHRAGM CYLINDER,CONNECTION:
72
FITTING DIAPHRAGM CYLINDER,CONNECTION:
104
THRUST RING BUTT SCREW CONNECTION
112
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
112
SEAL RING , Replaced By: N007603012121
120
BULKHEAD FITTING THROUGH SIDE MEMBER
136
BRACKET BRACKET TO CROSS MEMBER
136
BRACKET , Replaced By: A6205243040
136
BRACKET , Replaced By: A3974290140
144
BRACKET COMPRESSED AIR LINE MOUNTING
152
SCREW BRACKET TO SIDE MEMBER
152
SCREW , Replaced By: N304017008040
160
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
160
NUT , Replaced By: N913004008001
208
CLAMP OIL DIPSTICK TO RADIATOR
216
SCREW SHOCK ABSORBER TO CONSOLE
216
SCREW , Replaced By: N304017008042
224
WASHER EXHAUST MUFFLER TO STRAP
224
WASHER , Replaced By: N000125008443
232
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
232
NUT , Replaced By: N913004008001
999
CLAMP LINE MOUNTING
999
BRACKET LOCKING STRIP
999
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
