Поз.
Артикул
Описание

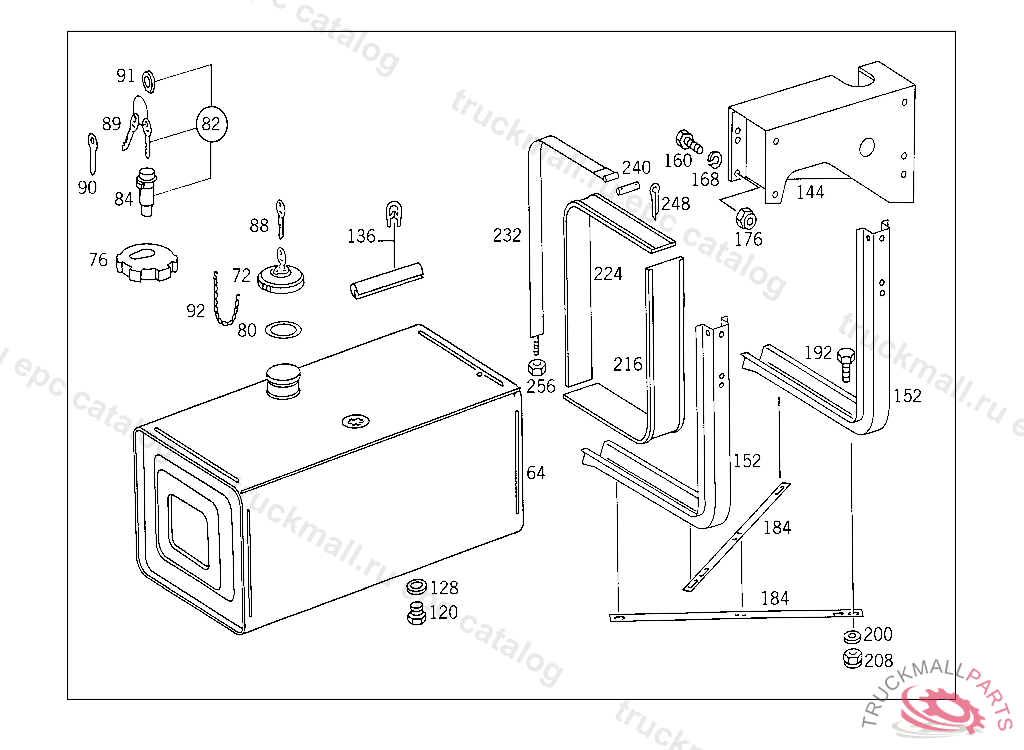

64
FUEL TANK
64
FUEL TANK300 L
64
FUEL TANK294L
64
FUEL TANK
64
FUEL TANK300 L
72
FILLER CAP , Replaced By: A0004718430
72
FILLER CAP LESS BREATHING
72
FILLER CAP LESS BREATHING
72
FILLER CAP
76
FILLER CAP ,K 057755
80
SEAL RING , Replaced By: A3049970340
80
SEAL RING
82
TUMBLER WITH KEY, ANY LOCK,K 057755
84
TUMBLER WITH LOCK DEFINED, STATE LOCK NUMBER WHEN ORDERING
88
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
88
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
89
KEYYMOS, STATE LOCK NUMBER WHEN ORDERING
90
KEY BLANK YMOS
91
KEY HEAD
92
CHAIN FILLER CAP
120
SCREW PLUG FUEL DISCHARGE
120
SCREW PLUG , Replaced By: A3219970630
120
SCREW PLUG FUEL TANK
120
SCREW PLUG , Replaced By: N007604014110
128
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
128
SEAL RING FUEL LINE TO FEED PUMP
136
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
136
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
144
SUPPORT FUEL TANK TO FRAME, TO BE ADAPTED DURING ASSEMBLY
144
SUPPORT , Replaced By: A6574700542
144
SUPPORT , Replaced By: A6574700442
144
SUPPORT FUEL TANK
144
SUPPORT FUEL TANK
152
SUPPORT FUEL TANK
152
SUPPORT FUEL TANK
152
SUPPORT FUEL TANK
152
SUPPORT FUEL TANK TO FRAME, TO BE ADAPTED DURING ASSEMBLY
152
SUPPORT FUEL TANK
152
SUPPORT FUEL TANK
160
SCREW PROPELLER SHAFT TO TRANSMISSION
160
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
160
SCREW BRACKET TO SIDE MEMBER
160
SCREW BRACKET TO CAB CONSOLE,K 035197
160
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
160
SCREW MOUNTING TO CONSOLE M 14X35
160
SCREW , Replaced By: N308676014008
160
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
160
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
160
SCREW , Replaced By: N308676014020
168
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
176
NUT STEERING SUPPORT TO FRAME
176
NUT STEERING SUPPORT TO FRAME
176
NUT , Replaced By: N910113014000
176
NUT PARTICLE FILTER M14
176
NUT BRACKET TO SIDE MEMBER
176
NUT BRACKET TO SIDE MEMBER
176
NUT , Replaced By: N910113014001
184
REINFORCEMENT SUPPORT TO CONSOLE,5 497851
184
REINFORCEMENT FUEL TANK SUPPORT
184
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
192
SCREW EXHAUST PIPE TO BRACKET
192
SCREW CONSOLE TO SIDE MEMBER
192
SCREW CONSOLE TO SIDE MEMBER
200
WASHER
208
NUT STRAP TO SUPPORT
208
NUT SUPPORT TO SIDE MEMBER
216
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
224
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
232
STRAP FUEL TANK TO SUPPORT
232
STRAP FUEL TANK TO SUPPORT
240
PIN STRAP TO SUPPORT
240
PIN STRAP TO SUPPORT
248
COTTER PIN STRAP TO SUPPORT
256
NUT SHOCK ABSORBER MOUNTING
256
NUT STRAP TO SUPPORT
256
NUT SUPPORT TO SIDE MEMBER
