Поз.
Артикул
Описание

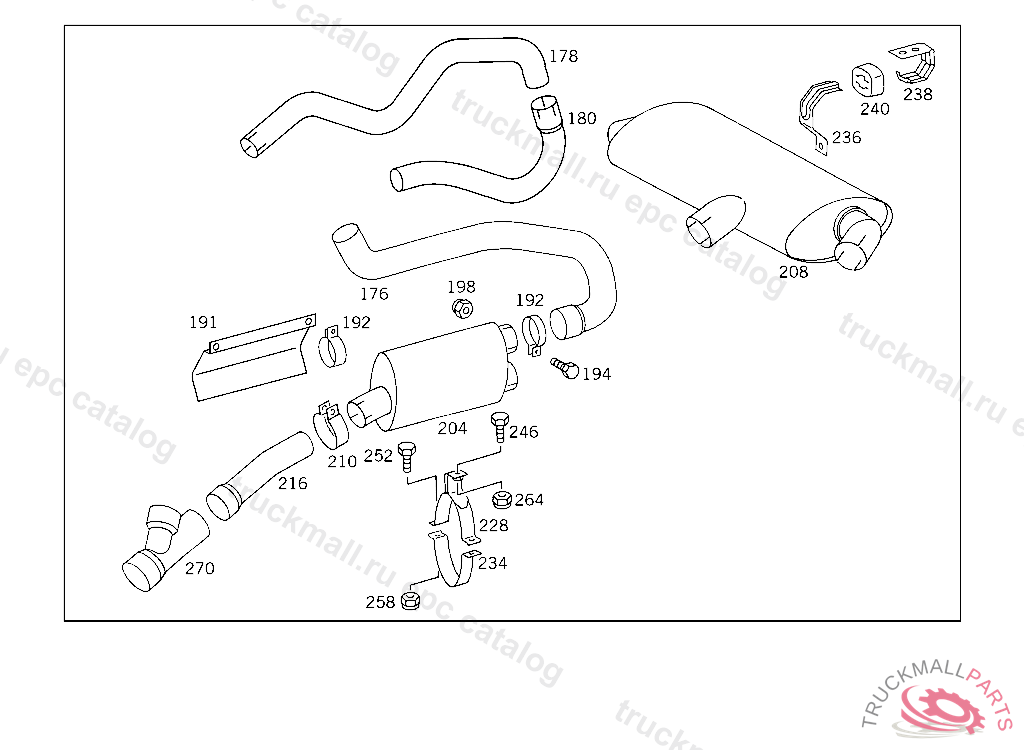

176
EXHAUST PIPE RIGHT
176
EXHAUST PIPE RIGHT
176
EXHAUST PIPE FRONT,REAR RIGHT PART
176
EXHAUST PIPE FRONT,REAR RIGHT PART
176
EXHAUST PIPE FRONT,REAR RIGHT PART
176
EXHAUST PIPE FRONT,REAR RIGHT PART
176
EXHAUST PIPE FRONT,REAR RIGHT PART
176
EXHAUST PIPE RIGHT
176
EXHAUST PIPE RIGHT
176
EXHAUST PIPE RIGHT
176
EXHAUST PIPE RIGHT
178
EXHAUST PIPE RIGHT
178
EXHAUST PIPE RIGHT
180
FRONT EXHAUST PIPE RIGHT
180
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, RIGHT
180
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, RIGHT
180
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, RIGHT
180
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, RIGHT
180
EXHAUST PIPE RIGHT
180
FRONT EXHAUST PIPE RIGHT
191
PROTECTIVE PLATE FUEL TANK
192
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
192
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
192
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
192
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
192
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
194
SCREW BRACKET TO SUPPORT
198
NUT STRAP TO BRACKET
204
EXHAUST MUFFLER PRE-MUFFLER
204
EXHAUST MUFFLER PRE-MUFFLER
204
EXHAUST MUFFLER PRE-MUFFLER
208
EXHAUST MUFFLER PRE-MUFFLER
210
CLAMP END PIECE TO EXHAUST PIPE
210
CLAMP , Replaced By: N071555124501
210
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
210
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
210
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
210
CLAMP EXHAUST PIPE
210
CLAMP , Replaced By: A6554920340
216
FRONT EXHAUST PIPE EXHAUST MUFFLER TO EXHAUST PIPE
216
FRONT EXHAUST PIPE PRE-MUFFLER
216
FRONT EXHAUST PIPE PRE-MUFFLER
228
STRAP PRE-MUFFLER
228
STRAP PRE-MUFFLER
228
STRAP PRE-MUFFLER
228
STRAP PRE-MUFFLER
228
STRAP PRE-MUFFLER
228
STRAP EXHAUST MUFFLER
234
STRAP PRE-MUFFLER
234
STRAP , Replaced By: A6554900442
234
STRAP STRAP TO SUPPORT
236
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
236
BRACKET EXHAUST MUFFLER SUSPENSION
238
BRACKET PARTICLE FILTER
240
DAMPING PAD PARTICLE FILTER
246
SCREW BRACKET TO CAB MOUNTING CONSOLE
246
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
252
SCREW BRACKET TO SIDE MEMBER
258
NUT STRAP TO BRACKET
264
NUT BRACKET TO SIDE MEMBER
270
FITTING EXHAUST PIPE TO MUFFLER
999
BRACKET PRE-MUFFLER
999
BRACKET PRE-MUFFLER
999
EXHAUST PIPE LEFT
999
FRONT EXHAUST PIPE PRE-MUFFLER TO MAIN MUFFLER
999
FRONT EXHAUST PIPE PRE-MUFFLER TO MAIN MUFFLER
999
FRONT EXHAUST PIPE PRE-MUFFLER TO MAIN MUFFLER
999
END PIECE , Replaced By: A6534920114
999
SUPPORT PLATE
999
PROTECTIVE PLATE PROTECTIVE PLATE TO WATER PIPE
