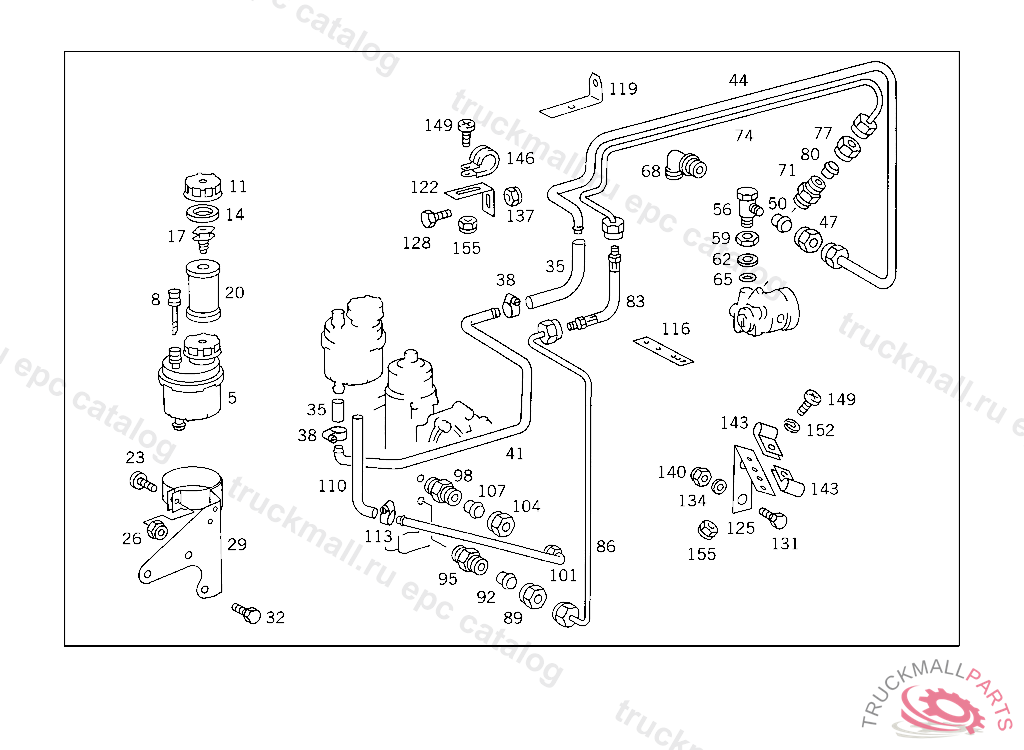

Поз.
Артикул
Описание
5
TANK , Replaced By: A0004666202
5
TANK OIL
8
OIL DIPSTICK , Replaced By: A0004660867
8
OIL DIPSTICK
11
FILLER CAP , Replaced By: A0004661268
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
23
SCREW BRACKET TO CROSS MEMBER M 6X35
26
NUT , Replaced By: N913004006001
26
NUT PUMP TO BRACKET
29
BRACKET OIL TANK,5 593345
29
BRACKET OIL TANK,5 593345
32
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
32
SCREW CENTRAL LOCK TO CAB M 10X16
35
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
35
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
38
CLAMP , Replaced By: N000000000667
38
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
41
LINE FROM OIL TANK TO HOSE, Replaced By: A0004291601
41
LINE FROM OIL TANK TO HOSE
41
LINE FROM OIL TANK TO HOSE
44
LINE , Replaced By: A6564602224
44
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
44
LINE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
47
UNION NUT LINE CONNECTION, Replaced By: N000000006243
47
NUT LINE CONNECTION
50
GLAND , Replaced By: A0019901267
50
SEAL CONE LINE CONNECTION
56
FITTING SUCTION LINE TO OIL PUMP
56
ELBOW FITTING SUCTION LINE TO OIL PUMP
59
NUT SUCTION LINE TO OIL PUMP
62
THRUST RING SUCTION LINE TO OIL PUMP
65
SEALING CORD SUCTION LINE TO OIL PUMP
71
SCREW-IN FITTING DELIVERY LINE TO PUMP
71
FITTING DELIVERY LINE TO PUMP
74
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
77
UNION NUT LINE CONNECTION, Replaced By: N000000006239
77
UNION NUT LINE CONNECTION
80
GLAND , Replaced By: A0019901967
80
SEAL CONE LINE CONNECTION
83
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
83
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
83
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
83
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
83
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
83
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
83
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
83
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
83
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
86
LINE FROM HIGH PRESSURE HOSE TO STEERING
86
LINE FROM HIGH PRESSURE HOSE TO STEERING
86
LINE FROM HIGH PRESSURE HOSE TO STEERING
89
UNION NUT LINE CONNECTION, Replaced By: N000000006239
89
UNION NUT LINE CONNECTION
92
GLAND , Replaced By: A0019901967
92
SEAL CONE LINE CONNECTION
95
SCREW-IN FITTING DELIVERY LINE TO PUMP
95
FITTING DELIVERY LINE TO PUMP
98
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
101
LINE RETURN, FROM STEERING TO OIL TANK
101
LINE RETURN, FROM STEERING TO OIL TANK
104
UNION NUT LINE CONNECTION
107
GLAND LINE CONNECTION
110
HOSE DELIVERY LINE TO STEERING
113
CLAMP HOSE TO FITTING AND TO OIL TANK
113
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
122
BRACKET FUEL LINES TO TRANSMISSION
125
BRACKET DELIVERY AND SUCTION LINES TO FRAME
125
BRACKET DELIVERY AND SUCTION LINES TO FRAME
128
SCREW END PIECE TO EXHAUST PIPE M 10X25
131
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
131
SCREW , Replaced By: N308676012026
131
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
134
WASHER
137
NUT , Replaced By: N910113010000
137
NUT STRAP TO BRACKET
140
NUT SUPPORT TO SIDE MEMBER
143
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
143
CLAMP , Replaced By: A6739950001
143
CLAMP DELIVERY AND SUCTION LINES TO STEERING
143
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
146
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
146
CLAMP DELIVERY AND SUCTION LINES TO FRAME
146
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
146
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
149
SCREW , Replaced By: N000000001146
149
SCREW CLAMP MOUNTING M 6X16
149
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
149
SCREW , Replaced By: N000000001422
149
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
152
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
155
NUT , Replaced By: N913004006001
155
NUT PUMP TO BRACKET
999
SEAL RING VALVE TO VALVE,K 025179
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
BRACKET , Replaced By: A6564660040
999
BRACKET DELIVERY AND SUCTION LINES TO FRAME
999
BRACKET , Replaced By: A6564660040
999
PROTECTIVE CAP
