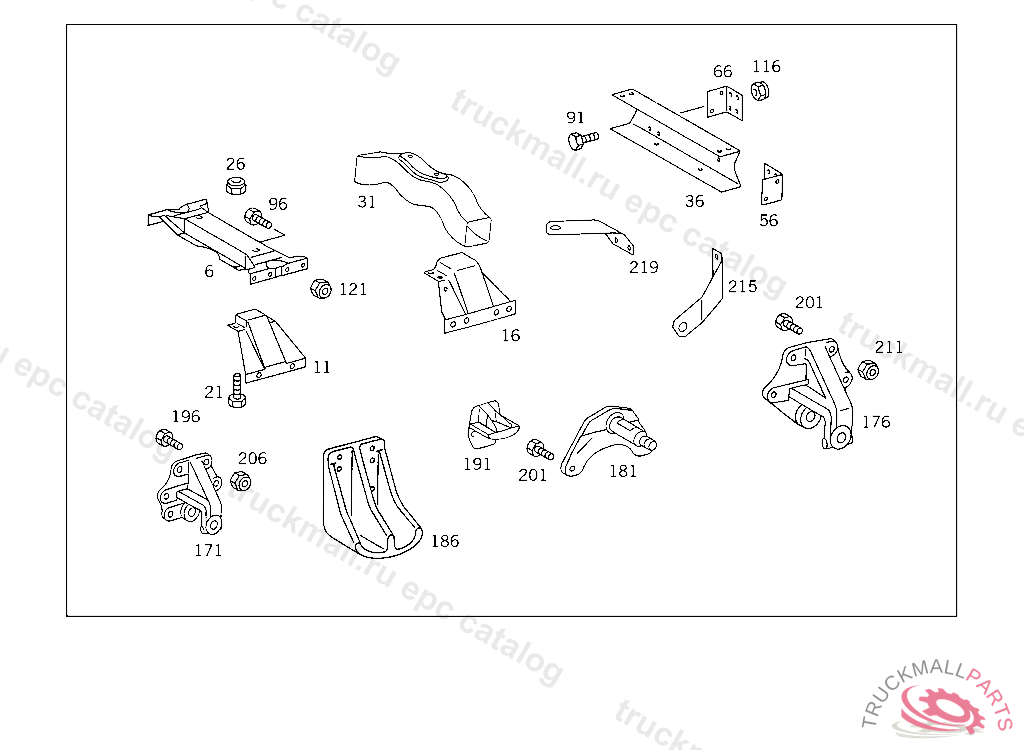

Поз.
Артикул
Описание
6
CROSS MEMBERNO.5A
6
CROSS MEMBERNO.5A
6
CROSS MEMBERNO.5A
11
STRUT LEFT AND RIGHT
11
STRUT LEFT AND RIGHT
11
STRUT LEFT AND RIGHT
11
STRUT LEFT AND RIGHT
11
STRUT , Replaced By: A6223120261
16
STRUT LEFT AND RIGHT
21
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
21
SCREW , Replaced By: A0029908201
26
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
26
NUT , Replaced By: N910113012003
31
CROSS MEMBER SHOCK ABSORBER
31
CROSS MEMBERNO.6
31
CROSS MEMBER SHOCK ABSORBER NO.6
36
CROSS MEMBERNO.7
36
CROSS MEMBERNO.7
36
CROSS MEMBER REAR SPRING SUSPENSION NO.7
36
CROSS MEMBERNO.7
56
ANGLE REAR CROSS MEMBER TO LEFT SIDE MEMBER
66
ANGLE REAR CROSS MEMBER TO RIGHT SIDE MEMBER
91
SCREW STEERING SUPPORT TO FRAME M 14X50
91
SCREW SUPPORT TO SIDE MEMBER M 14X45
91
SCREW , Replaced By: N308676014012
91
SCREW MOUNTING TO CONSOLE M 14X35
91
SCREW MOUNTING TO CONSOLE M 14X35
91
SCREW MOUNTING TO CONSOLE M 14X35
91
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
91
SCREW , Replaced By: N308676014003
91
SCREW PROPELLER SHAFT TO TRANSMISSION
91
SCREW APPARATUS SUPPORT TO FRAME
91
SCREW APPARATUS SUPPORT TO FRAME
91
SCREW , Replaced By: A9429901304
91
SCREW MOUNTING TO CONSOLE M 14X35
91
SCREW MOUNTING TO CONSOLE M 14X35
91
SCREW MOUNTING TO CONSOLE M 14X35
91
SCREW , Replaced By: N308676014008
96
SCREW REINFORCEMENT ANGLE TO SIDE MEMBER M 16X95
96
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X80
96
SCREW CONSOLE TO FRAME
96
SCREW , Replaced By: N308676016020
96
SCREW REINFORCEMENT TO REAR CROSS MEMBER M 16X1.5X40
96
SCREWM 14X15X15X32
116
NUT STEERING SUPPORT TO FRAME
116
NUT , Replaced By: N910113014000
121
NUT CONSOLE TO SUPPORT
121
NUT , Replaced By: N910113016001
171
REAR SPRING BRACKET FRONT
171
REAR SPRING BRACKET FRONT,K 062674
176
REAR SPRING BRACKET REAR
181
REAR SPRING BRACKET REAR
186
HELPER SPRING BRACKET HELPER SPRING
191
HELPER SPRING BRACKET FRONT
196
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
196
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
196
SCREW , Replaced By: N308676016004
196
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
196
SCREW , Replaced By: N308676016007
201
SCREW STEERING SUPPORT TO FRAME M 14X50
201
SCREW SUPPORT TO SIDE MEMBER M 14X45
201
SCREW SUPPORT TO SIDE MEMBER M 14X45
201
SCREW , Replaced By: N308676014012
201
SCREW MOUNTING TO CONSOLE M 14X35
201
SCREW MOUNTING TO CONSOLE M 14X35
201
SCREW , Replaced By: N308676014008
206
NUT CONSOLE TO SUPPORT
206
NUT , Replaced By: N910113016001
211
NUT STEERING SUPPORT TO FRAME
211
NUT STEERING SUPPORT TO FRAME
211
NUT , Replaced By: N910113014000
215
BRACKET LEFT BRAKE LINE COUPLING,5 561192
219
BRACKET RIGHT BRAKE LINE COUPLING,5 561192
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
ANGLE LEFT
999
ANGLE RIGHT
999
GUSSET PLATE REAR CROSS MEMBER
