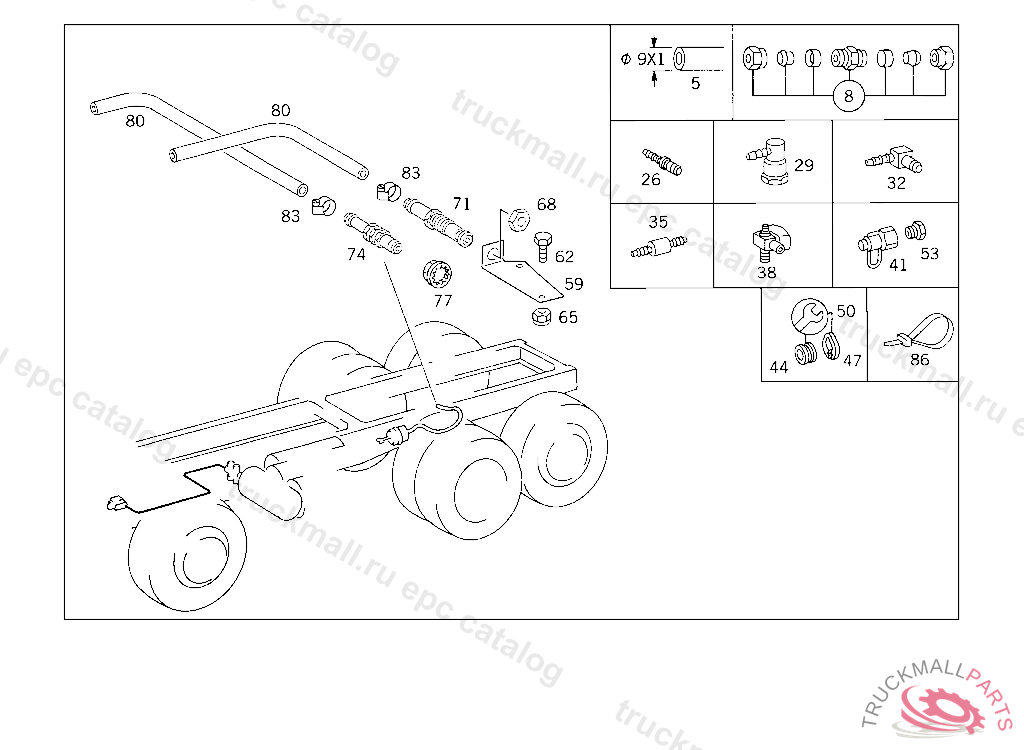

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872827
8
FITTING (PARTS KIT),LINE RUPTURE
26
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
29
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
32
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
35
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION 6 MM
38
T-FITTING REAR AXLE II TRISTOP CYLINDER, CONNECTIONS: "11,12,22"
41
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
41
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
41
TEST CONNECTION
44
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
47
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
50
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
53
SCREW. UNION SCREW LINE CONNECTION
59
BRACKET BRAKE HOSE
62
SCREW BRACKET TO CROSS CONNECTION STRUT
62
SCREW , Replaced By: N304017008034
65
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
65
NUT , Replaced By: N913004008001
68
NUT BRACKET TO SIDE MEMBER
71
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
74
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
77
LOCK REAR AXLE BRAKE HOSE,K 181360
80
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
83
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
83
CLAMP HOSE TO FITTING AND TO OIL TANK
86
LOOM TIE LINE MOUNTING
999
GUIDE SIGN LOAD-DEPENDING BRAKE,K 063802K 093236
999
BRACKET RELAY VALVE
999
METAL SPRING BELLOWS
999
METAL SPRING BELLOWS
999
BRACKET , Replaced By: A3914311240
999
LEVER BRAKE POWER REGULATOR CONTROL
999
BRAKE HOSE , Replaced By: A0004295135
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
VALVE P.T.O.
