Mercedes N000000000319 - ХОМУТ

2448 L/LS,2550 L,3250 L 658.473 DATACARD: CHASSIS-SA 5...../..

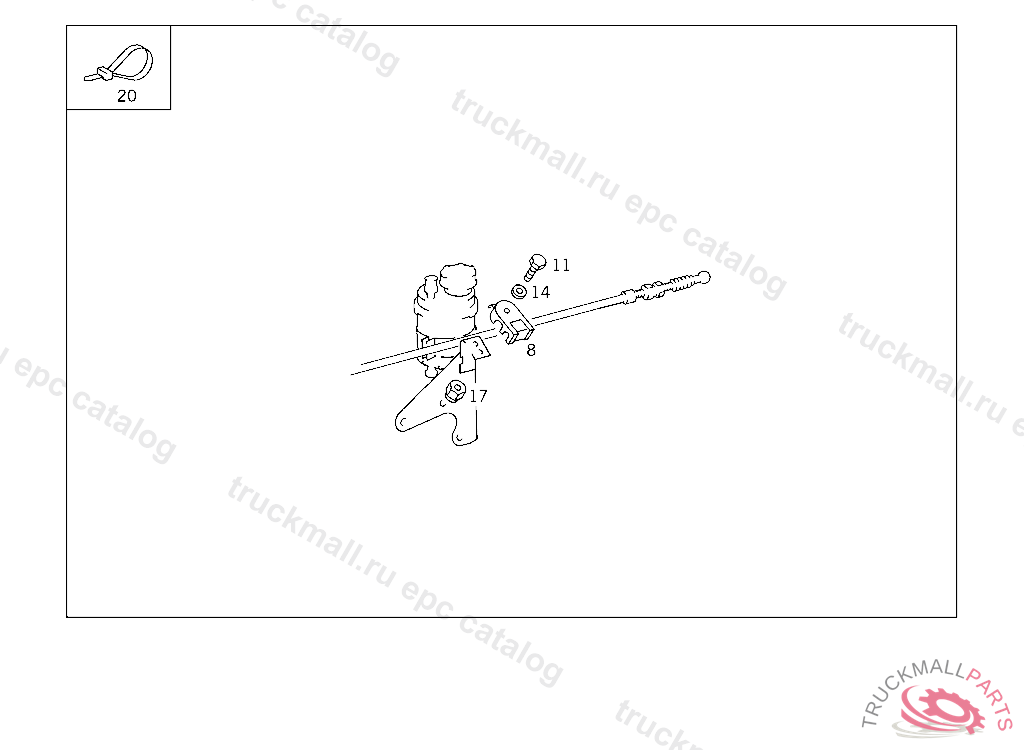

29 PEDAL ASSEMBLY - 001 HYDRAULIC LINE,CLUTCH BOOSTER

Поз.
Артикул
Описание
8
A6553010043
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
11
N000000001149
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
11
A0029903712
SCREW , Replaced By: N000000001149
11
N007985006154
SCREW , Replaced By: A0029903712
14
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
14
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
17
N913004006001
NUT PUMP TO BRACKET
17
N913004006002
NUT , Replaced By: N913004006001
20
A0019978390
LOOM TIE LINE MOUNTING 280 MM
20
A0019978490
LOOM TIE LINE MOUNTING
999
N000000000319
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
N916016008200
CLAMP ,K 147121, Replaced By: N000000000319
