Главная
›
Mercedes
›
TRUCK
›
2448 L/LS,2550 L,3250 L
›
658.473 DATACARD: CHASSIS-SA 5...../..
›
30 CONTROL
›
001 BRACKET,WIRE CABLE ON SIDE MEMBER
Mercedes N913002012004 - ГАЙКА М12
2448 L/LS,2550 L,3250 L 658.473 DATACARD: CHASSIS-SA 5...../..
30 CONTROL - 001 BRACKET,WIRE CABLE ON SIDE MEMBER

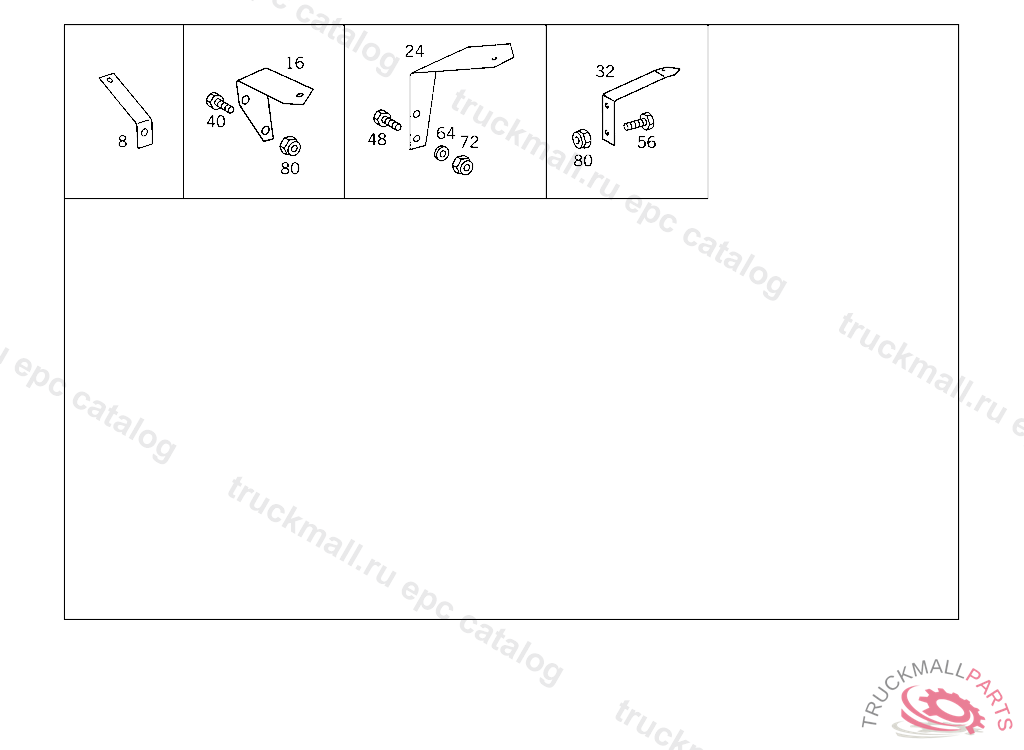

Поз.
Артикул
Описание
8
A6523010540
BRACKET WIRE CABLE TO AIR BAFFLE BRACKET
16
A6523011940
BRACKET WIRE CABLE TO BRACKET
24
A6553011440
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET
32
A6583010140
BRACKET WIRE CABLE TO HYDRAULIC LINE BRACKET,K 003830
32
A6583010240
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET
40
N000933012098
SCREW BRACKET TO FRAME SIDE MEMBER
48
N000933010145
SCREW REAR EXHAUST PIPE TO MUFFLER
48
N000933010145
SCREW REAR EXHAUST PIPE TO MUFFLER
48
N000933010128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
56
N000961012122
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
64
A3859901040
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
72
N913004010008
NUT , Replaced By: N910113010000
72
N910113010000
NUT STRAP TO BRACKET
80
N913002012004
NUT END PIECE TO EXHAUST PIPE
80
N910113012002
NUT SUPPORT TO SIDE MEMBER
