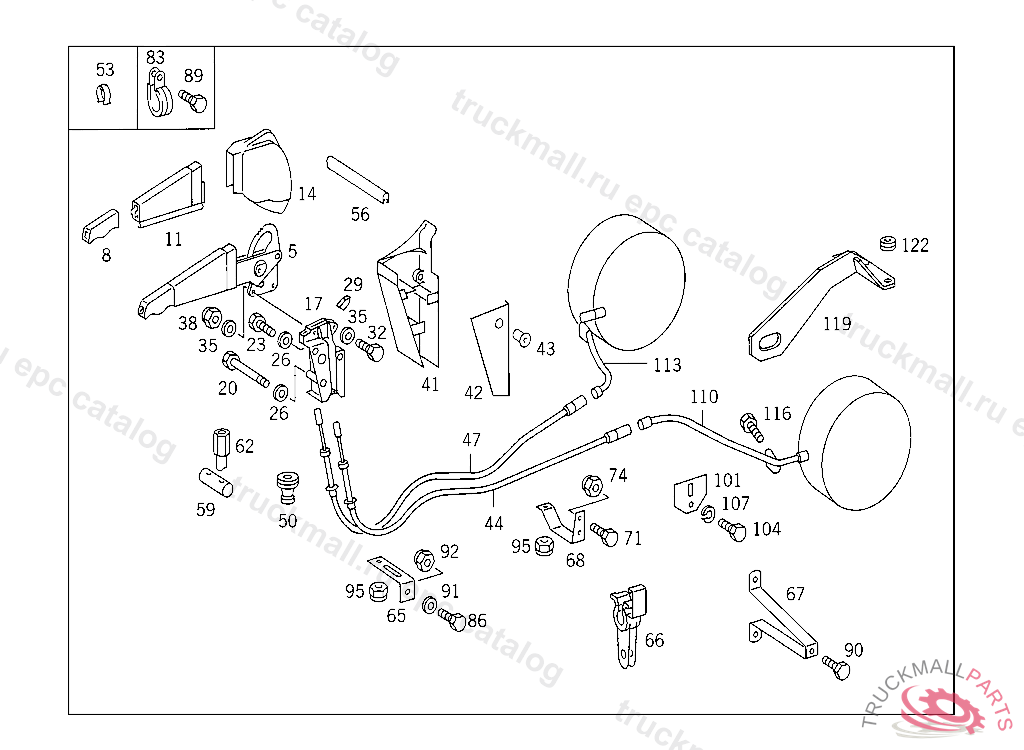

Поз.
Артикул
Описание
5
BRAKE LEVER , Replaced By: A6674200612
5
BRAKE LEVER
8
HANDLE , NO.8650I.......I.......I I II .......INO.9985I.......I I II
11
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
14
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
14
COVERING , NO.8316I.......I.......I I II .......I.......INO.7C52I I II
17
CONSOLE
17
CONSOLE
20
SCREW. HEXAGON HEAD BOLT RADIATOR PROTECTION,BOTTOM
23
HEXAGON HEAD BOLT BRACKET TO BRACKET
26
WASHER CONSOLE TO CAB
29
STOP BUFFER. DAMPING RING
32
SCREW CONNECTOR TO REAR SHIFTING ROD
35
WASHER RADIATOR TO RUBBER MOUNTING
38
NUT CROSS MEMBER TO SIDE MEMBERS
41
COVERING AT CONSOLE, NO.8650I.......I.......I I II .......INO.9985I.......I I II
42
COVER AT CONSOLE, N 000000 P 012148
43
RIVET
44
BRAKE CABLE FRONT LEFT
44
BRAKE CABLE FRONT LEFT
44
BRAKE CABLE FRONT LEFT
47
BRAKE CABLE FRONT RIGHT
47
BRAKE CABLE FRONT RIGHT
47
BRAKE CABLE FRONT RIGHT
50
GROMMET
53
SPRING BRAKE CABLE
53
CLIP , Replaced By: A6674300093
56
EDGE GUARD SECTION , Replaced By: A0029878872
56
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
59
PIN BRAKE CABLE TO BRAKE LEVER
62
NUT BRAKE CABLE TO BRAKE LEVER
65
BRACKET LINE MOUNTING
67
BRACKET BRAKE CABLE
68
BRACKET BRAKE CABLE
71
SCREW STRUT TO CROSS MEMBER M 10X25
74
NUT CROSS MEMBER TO SIDE MEMBERS
83
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
86
SCREW CABLE HARNESS MOUNTING
89
SCREW LICENSE PLATE TO BRACKET
89
SCREW CAB FLOOR COVERING M 6X25
91
WASHER EXHAUST MUFFLER TO STRAP
92
NUT STRAP TO BRACKET
95
NUT HEATING PIPE TO BRACKET
101
GUIDE PLATE REAR BRAKE CABLE TO BRACKET
104
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
107
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
110
BRAKE CABLE REAR LEFT
110
BRAKE CABLE REAR LEFT
113
BRAKE CABLE REAR RIGHT
113
BRAKE CABLE REAR RIGHT
116
SCREW BRAKE CABLE TO BRAKE ANCHOR PLATE
119
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6684200186
122
GROMMET LINE THRU LEFT SIDE MEMBER
999
COVERING AT CONSOLE, N 000000 P 012148
