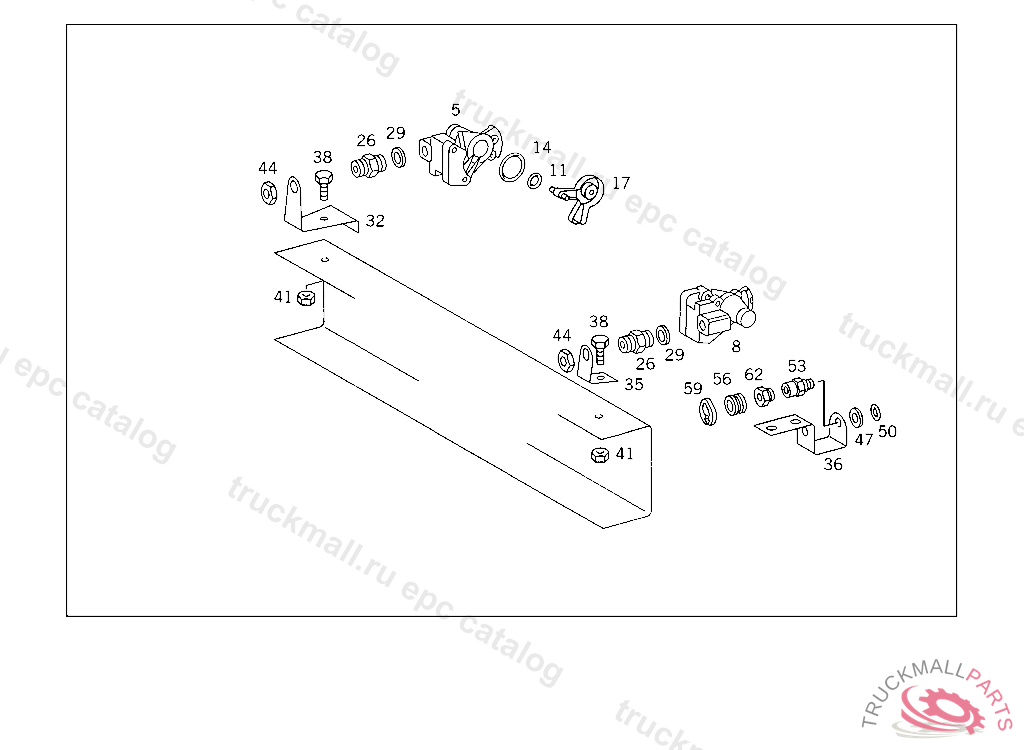

Поз.
Артикул
Описание
5
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
5
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
5
BRAKE LINE COUPLING SUPPLY, RED "GRAU"
5
BRAKE LINE COUPLING , Replaced By: A0004299630
5
BRAKE LINE COUPLING SUPPLY, RED "WABCO"
8
BRAKE LINE COUPLING , Replaced By: A0004299730
8
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
8
BRAKE LINE COUPLING BRAKE,YELLOW "KNORR"
8
BRAKE LINE COUPLING BRAKE,YELLOW "GRAU"
8
BRAKE LINE COUPLING BRAKE,YELLOW "BOSCH"
11
SEAL RING25X2 MM,BOSCH
14
SEAL RING33X2.5 MM,BOSCH
14
SEAL RING22X4 MM,BOSCH
14
SEAL RING , Replaced By: A0049978240, +001A0004290483
14
SEAL RING30X2 MM,BOSCH
14
VALVE TAPPET22X4 MM,BOSCH
14
SEAL RING"GRAU"
17
COVER BRAKE,YELLOW "WABCO"
17
COVER SUPPLY, RED "WABCO"
26
FITTING BRAKE LINE COUPLING TO BRACKET
29
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
32
BRACKET , 762133 N 000001 P 000001 UP TO IDENT NO. - ,FROM IDENT NO.: SEE MICROFICHE 44250 912433 N 000000 P 000000
32
BRACKET RIGHT
35
BRACKET RIGHT
35
BRACKET LEFT
36
BRACKET BRAKE LINE COUPLING
38
SCREW CABLE HARNESS MOUNTING
41
HEX. NUT. NUT FROM AIR SPRING VALVE TO REAR AXLE
44
NUT BRACKET TO SIDE MEMBER
47
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
50
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
53
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "40",5 509133
56
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
59
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
62
SCREW. UNION SCREW LINE CONNECTION
999
REPAIR KIT BRAKE LINE COUPLING "WABCO"
999
REPAIR KIT BRAKE LINE COUPLING "KNORR"
