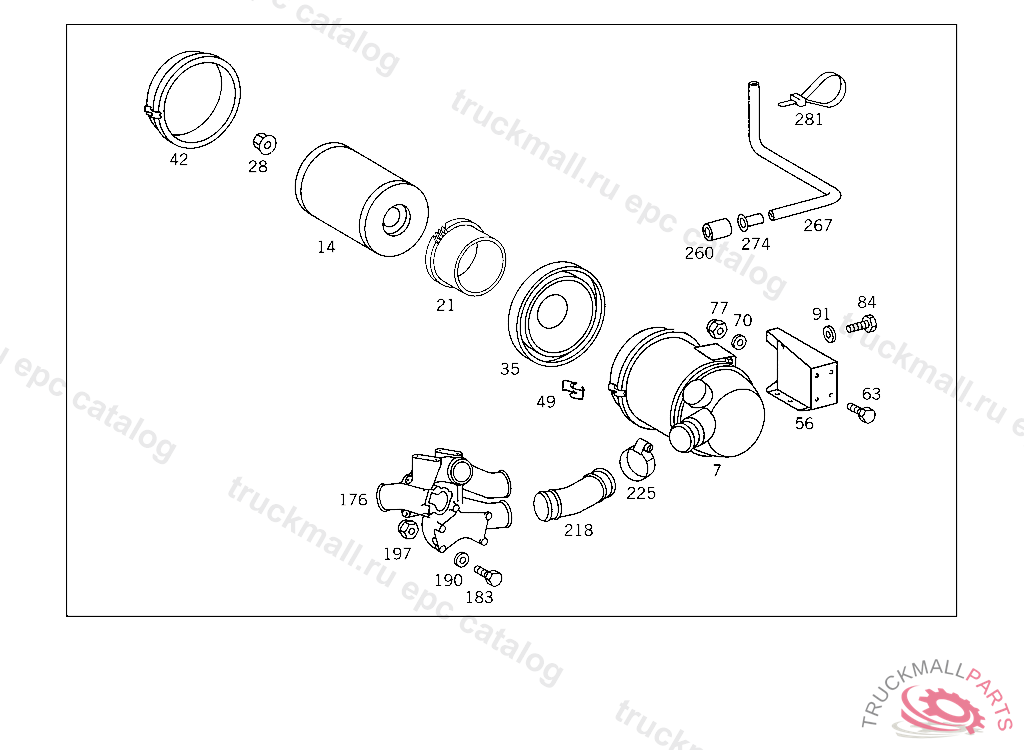

Поз.
Артикул
Описание
7
AIR CLEANER
14
FILTER ELEMENT AIR CLEANER
21
AIR BAFFLE AIR CLEANER
28
NUT
35
COVER LOWER PART
42
FILTER BOWL LOWER PART
49
FASTENER
56
SUPPORT
63
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
70
WASHER
77
NUT SUPPORT TO SIDE MEMBER
84
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
91
WASHER RADIATOR TO RUBBER MOUNTING
91
WASHER , Replaced By: N000125010532
176
SUPPORT AIR INTAKE
183
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
183
SCREW , Replaced By: N308676012011
183
SCREW CONSOLE TO SIDE MEMBER
190
WASHER BRACKET TO FRAME
197
NUT SUPPORT TO SIDE MEMBER
218
HOSE FROM SUPPORT TO PAPER AIR CLEANER
225
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
225
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
225
CLAMP , Replaced By: A0059971490
260
HOSE LEAK LINE, ORDER BY THE METER
267
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
267
PLASTIC PIPE RISING PIPE 4X6 MM
274
SLEEVE LEAK LINE
281
LOOM TIE LINE MOUNTING 280 MM
999
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
999
HEXAGON HEAD BOLT. SCREW REINFORCEMENT TO SIDE MEMBER M 12X55
999
SCREW , Replaced By: N308676012016
999
SCREW LEAF SPRING TO STRUT
999
SCREW BRACKET TO BELL HOUSING
999
BRACKET AIR INTAKE PIPE
999
HOSE TO OIL BATH AIR CLEANER
999
AIR INTAKE PIPE
999
WASHER CONSOLE TO SIDE MEMBER
999
HOSE FROM SUPPORT TO ENGINE
999
HOSE , Replaced By: A6735281282, +001A0019880735, +002A0019978390
999
HOSE ,5 451580
999
SUPPORT AIR INTAKE
999
SUPPORT (PAPER AIR CLEANER)
999
SUPPORT ,5 4625735 505597, Replaced By: A6735201833, +003N000933010128
999
MUFFLER (INTAKE MUFFLER)
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANER ,5 586474, Replaced By: A0160948402, +001A6795280040, +002N000125013008, +002N000961012151, +002N913004012008
999
AIR CLEANER (PAPER AIR CLEANER) MANN & HUMMEL
