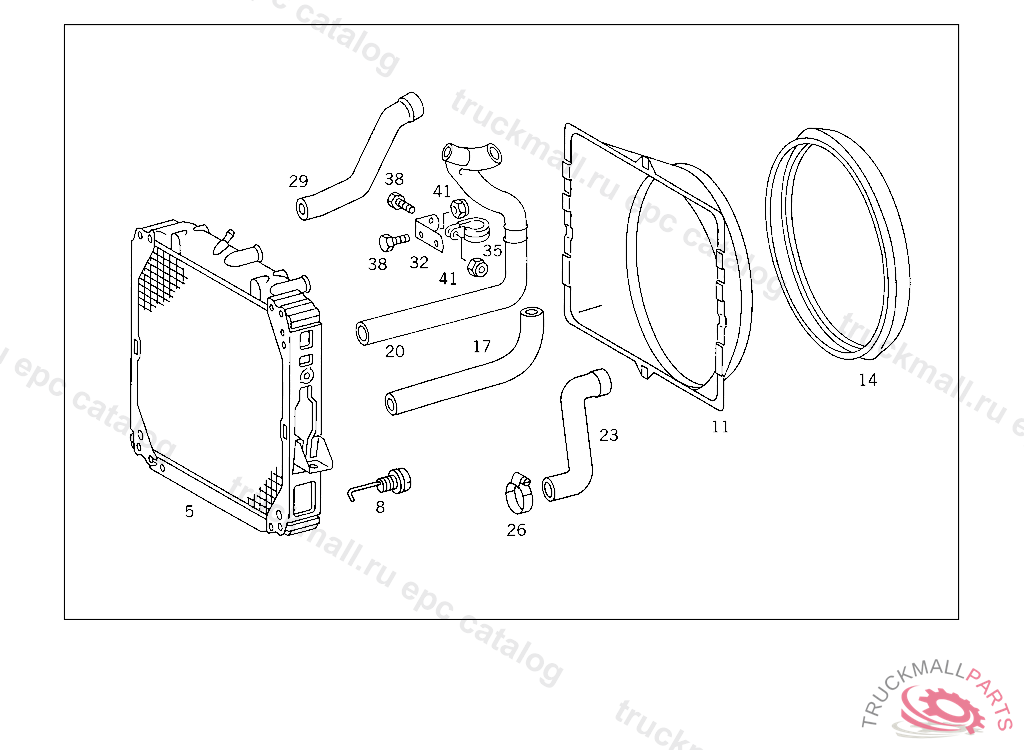

Поз.
Артикул
Описание
5
RADIATOR WATER
5
RADIATOR , Replaced By: A6775002003
5
RADIATOR ,5 527394, Replaced By: A6775002003
5
RADIATOR ,5 527393, Replaced By: A6775001503, +004A6739900032, +004A6739900132
5
RADIATOR ,5 463261, Replaced By: A6775000903, +001A6745011982
8
SCREW WATER DRAIN
11
AIR BAFFLE
11
AIR BAFFLE ,K 053730
11
AIR BAFFLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 937517, Replaced By: A6765050230
14
BOOT AIR BAFFLE TO 676 505 01 30
17
HOSE FROM RADIATOR TO OIL COOLER,5 2348925 422711
17
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6765011182, +002A6769950110
20
HOSE ,5 422712K 053730
23
HOSE FROM RADIATOR TO OIL COOLER,K 053730
26
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
26
CLAMP , Replaced By: N000000000671
26
CLAMP HOSE TO RADIATOR AND TO OIL COOLER TO 676 501 11 82,676 501 12 82
29
HOSE FROM RADIATOR TO THERMOSTAT,5 463262
32
BRACKET , Replaced By: A6765010620
32
BRACKET , Replaced By: A6765010320
35
CLAMP HOSE TO BRACKET,5 4227125 484924
38
SCREW PIPE CLAMP
38
SCREW , Replaced By: N304017008021
41
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
41
NUT , Replaced By: N913004008001
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP HOSE TO BRACKET,5 4227125 484924
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
CLAMP25-40X13 MM
999
HOSE FROM WATER PUMP TO RADIATOR
999
HOSE FROM WATER PUMP TO RADIATOR
999
RADIATOR ,5 527394
999
RADIATOR ,5 527394
