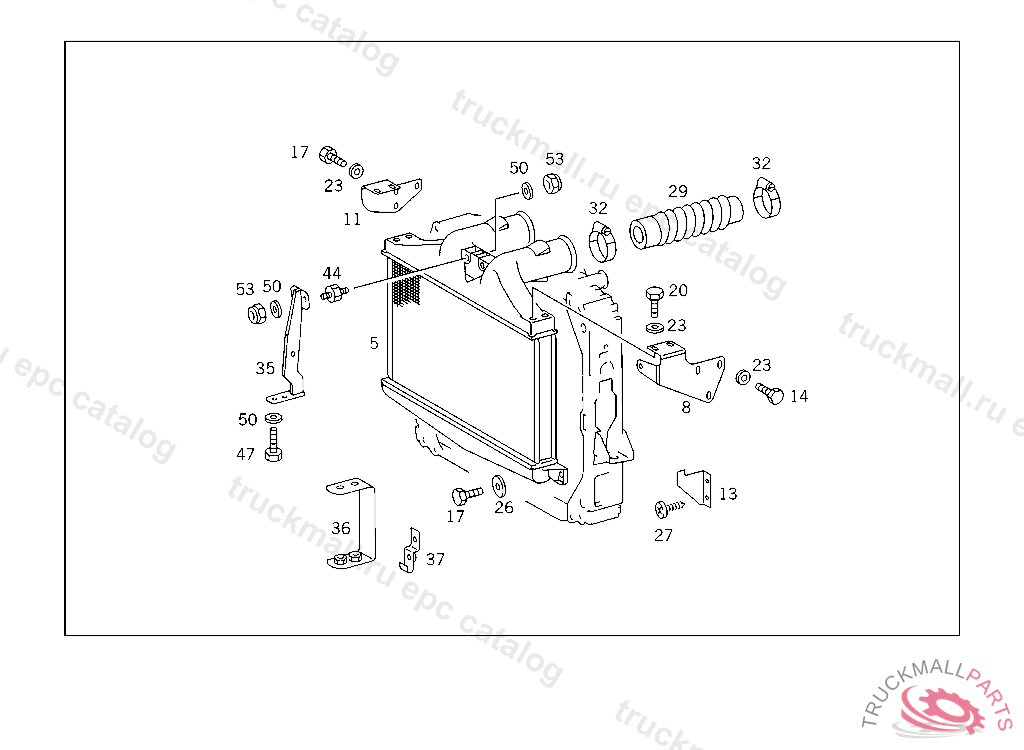

Поз.
Артикул
Описание
5
RADIATOR , RECOMMENDED FOR TAKING ON STOCK
8
BRACKET CHARGING AIR INTERCOOLER,LEFT
11
BRACKET CHARGING AIR INTERCOOLER,RIGHT
13
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
14
SCREW , Replaced By: N304017008021
14
SCREW PIPE CLAMP
17
SCREW , Replaced By: A0079900801
17
SCREW REDUCTION VALVE TO BRACKET
20
SCREW , Replaced By: N304017008039
20
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
23
WASHER , Replaced By: N000125008443
23
WASHER EXHAUST MUFFLER TO STRAP
26
WASHER BRACKET TO CAB REAR PANEL
26
WASHER , Replaced By: N009021008213
26
WASHER BRACKET TO LEFT SIDE MEMBER
27
SHEET METAL SCREW , Replaced By: N000000002062
27
SCREW
29
HOSE FROM ENGINE TO CHARGE AIR INTERCOOLER, RECOMMENDED FOR TAKING ON STOCK
29
HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE, RECOMMENDED FOR TAKING ON STOCK
32
CLAMP , Replaced By: A0059972990
32
CLAMP , Replaced By: N000000000675
32
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
35
RADIATOR STRUT BRACING TO SUPPORT TO 677 501 14 01
36
REINFORCEMENT BRACING TO SUPPORT
37
BRACKET CHARGE AIR INTERCOOLER
44
RUBBER BUFFER COVERING TO FRAME
47
SCREW PIPE CLAMP
47
SCREW PIPE CLAMP
47
SCREW , Replaced By: N304017008021
47
SCREW , Replaced By: N304017008034
47
SCREW BRACKET TO CROSS CONNECTION STRUT
50
WASHER EXHAUST MUFFLER TO STRAP
50
WASHER EXHAUST MUFFLER TO STRAP
50
WASHER , Replaced By: N000125008443
53
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
NUT , Replaced By: N913004008001
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
SCREW WATER DRAIN
