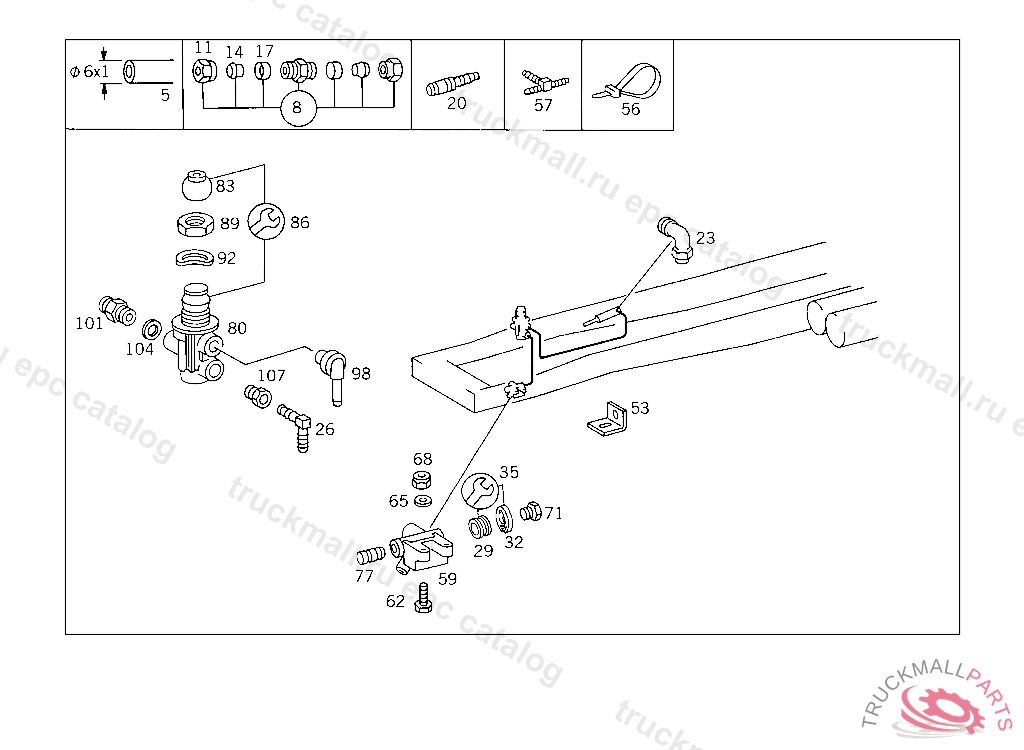

Поз.
Артикул
Описание
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
5
PLASTIC PIPE RISING PIPE 4X6 MM
8
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
11
UNION NUT
14
GLAND , Replaced By: A0019901667
17
SLEEVE LEAK LINE
20
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
20
CONNECTOR , Replaced By: A0029905378
23
FITTING , Replaced By: A0019909871
23
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
23
FITTING FROM PUMP TO CYLINDER
26
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
26
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
29
LOCK RING LINE CONNECTION
29
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
29
SEAL RING , Replaced By: A0009940747
32
LOCK , Replaced By: A0009945448
32
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
32
LOCK LINE CONNECTION
35
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
35
REPAIR KIT , Replaced By: A0309971748
35
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
53
BRACKET SENSOR CABLE TO FRONT AXLE
53
BRACKET , Replaced By: A3852670040
56
LOOM TIE LINE MOUNTING
59
DISTRIBUTOR ENGINE SHUT-OFF,5 766894
62
SCREW CONNECTOR
65
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
65
WASHER COMPRESSED AIR LINE TO BRACKET
68
NUT , Replaced By: N913004006001
68
NUT PUMP TO BRACKET
71
SCREW. UNION SCREW LINE CONNECTION
71
SCREW. UNION SCREW , Replaced By: A0009973734
71
SCREW. UNION SCREW LINE CONNECTION
77
PLUG DISTRIBUTOR,CONNECTIONS: "03,04,05",TO M 16,5 766894
80
VALVE EXHAUST BRAKE 3/2-WAY VALVE BOSCH
80
VALVE EXHAUST BRAKE 3/2-WAY VALVE WABCO
83
CUP 3/2-WAY VALVE WABCO
86
REPAIR KIT 3/2-WAY VALVE WABCO
86
REPAIR KIT 3/2-WAY VALVE BOSCH
89
NUT SUCTION LINE TO OIL PUMP
92
SPRING WASHER AT CAB FLOOR
98
PIPE SOCKET 3/2-WAY VALVE,CONNECTION: "30"
107
SCREW. UNION SCREW , Replaced By: A0009973734
107
SCREW. UNION SCREW LINE CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
SCREW , Replaced By: N304017006034
999
BRACKET DISTRIBUTOR TO CAB
999
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
999
CONNECTOR DISTRIBUTOR TO CAB
999
SEAL RING
999
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
999
CONNECTOR HOSE WIDTH, 6 MM,TO M16
999
ELBOW FITTING
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
999
ELBOW FITTING , Replaced By: A0049905371
999
CONNECTOR , Replaced By: A0029905478
