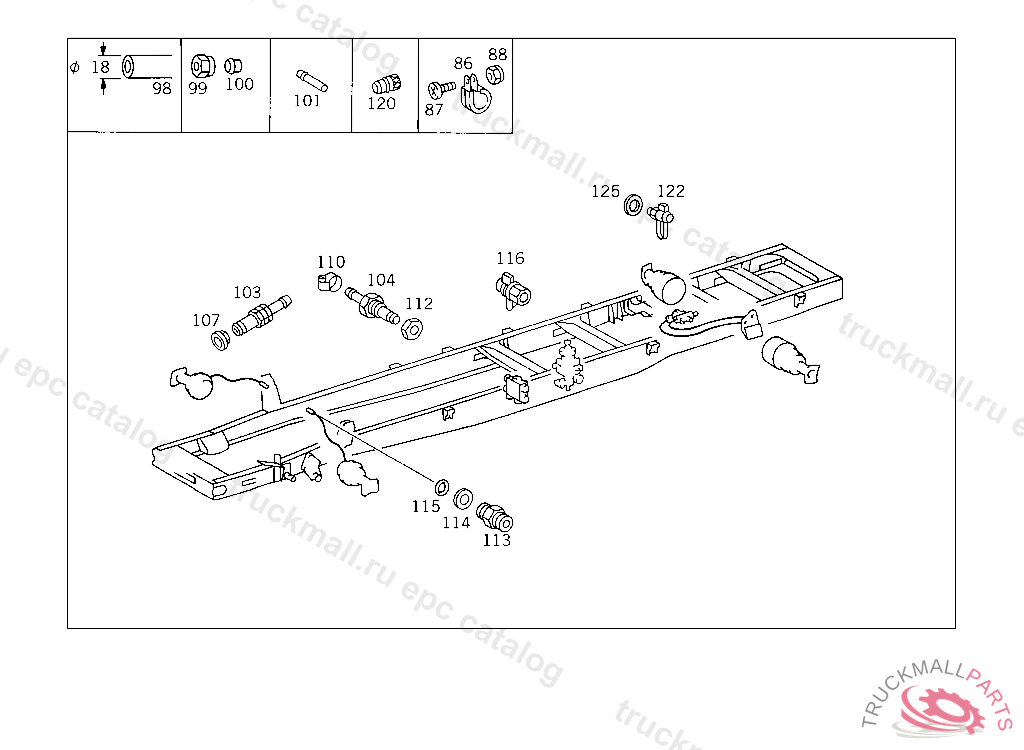

Поз.
Артикул
Описание
86
CLAMP BRAKE HOSE BRACKET
87
SCREW CLAMP TO BRACKET
87
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
88
NUT PUMP TO BRACKET
88
NUT , Replaced By: N913004006001
98
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
99
UNION NUT LINE CONNECTION
99
UNION NUT LINE CONNECTION, Replaced By: N000000006239
100
SEAL CONE LINE CONNECTION
100
GLAND , Replaced By: A0019901967
101
FITTING DIAPHRAGM CYLINDER,CONNECTION:
103
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
103
CONNECTOR ,5 288358, Replaced By: A0019901378, +001A6734210073
104
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
104
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
107
LOCK REAR AXLE BRAKE HOSE,K 181360
110
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
110
CLAMP HOSE TO FITTING AND TO OIL TANK
112
NUT BRACKET TO SIDE MEMBER
112
NUT BRACKET TO SIDE MEMBER
113
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
113
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
114
THRUST RING CHECK VALVE TO AIR RESERVOIR
114
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
115
O-RING CHECK VALVE TO AIR RESERVOIR
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
120
PLUG
122
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
122
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
125
SEAL RING LINE CONNECTION
999
CLAMP BRAKE HOSE
999
HOSE COMPRESSED AIR GUIDE, REAR AXLE. 220 MM
999
CLAMP BRAKE HOSE
