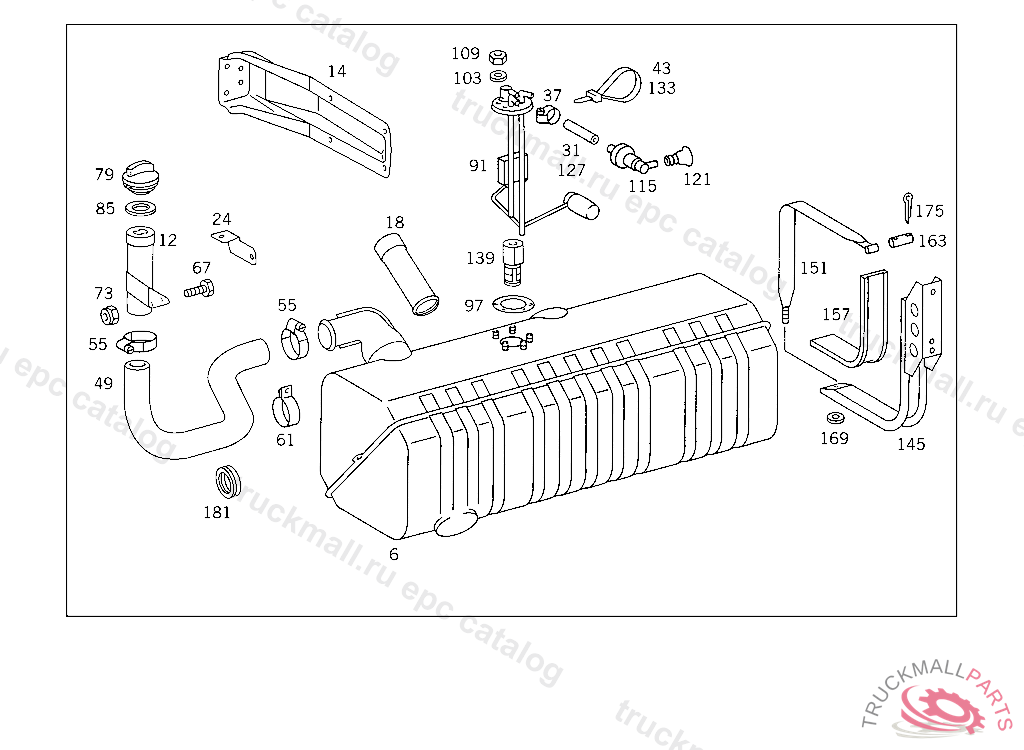

Поз.
Артикул
Описание
6
FUEL TANK80 L
6
FUEL TANK80 L
6
FUEL TANK105 L
6
FUEL TANK105 L
6
FUEL TANK135 L
6
FUEL TANK135 L
12
BRACKET
14
BRACKET LEFT FENDER
18
FILLER NECK , Replaced By: A6734700320
18
FILLER NECK
24
BRACKET
31
HOSE BREATHER LINE 1060 MM, ORDER BY THE METER
37
CLAMP , Replaced By: N916017011001
37
CLAMP , Replaced By: N916017011001
37
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
43
LOOM TIE LINE MOUNTING 280 MM
49
EXTENSION (MOLDED HOSE)
49
HOSE (MOLDED HOSE)
55
CLAMP , Replaced By: N000000000672
55
CLAMP HOSE FASTENING 50-70X13 MM
61
CLAMP HOSE TO FILLER NECK
67
SCREW , Replaced By: N304017008021
67
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
67
SCREW PIPE CLAMP
67
SCREW , Replaced By: N304017008034
67
SCREW BRACKET TO CROSS CONNECTION STRUT
73
NUT , Replaced By: N913004008001
73
NUT BRACKET TO BRACKET
73
NUT BRACKET TO BRACKET
73
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
79
FILLER CAP , Replaced By: A0004700730
79
FUEL FILLER CAP , Replaced By: A9014700005
79
FILLER CAP , Replaced By: A9014700105
79
FILLER CAP
85
SEAL RING
91
SENDER UNIT FUEL GAUGE
97
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
103
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
109
NUT BOOT
115
VALVE BREATHER LINE,K 169122
115
VALVE BREATHER LINE,K 169122
121
BOOT CHECK VALVE,K 169122
127
HOSE (VENT VALVE) B 8X12 MM
133
LOOM TIE VENT VALVE TO FUEL TANK
139
FUEL STRAINER FUEL GAUGE SENDER UNIT TO FUEL TANK
139
FUEL STRAINER FUEL GAUGE SENDER UNIT TO FUEL TANK
145
SUPPORT FUEL TANK TO FRAME
145
SUPPORT FUEL TANK TO FRAME
145
SUPPORT FUEL TANK TO FRAME
151
STRAP FUEL TANK TO SUPPORT
157
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
157
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
157
PAD EXPANSION TANK TO SUPPORT
163
PIN STRAP TO SUPPORT
169
WASHER STRAP TO SUPPORT
175
COTTER PIN STRAP TO SUPPORT
181
GROMMET BRACKET TO RIGHT FRONT FENDER
999
CLAMP LINE CONNECTION
999
SLEEVE LINE CONNECTION
999
HOSE , Replaced By: A1124761226
999
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
999
SUPPORT FUEL TANK
999
SENDER UNIT FUEL GAUGE,5 218304
999
SUPPORT FRONT AND REAR
999
STRAP , Replaced By: A6734300040
999
LOOM TIE , Replaced By: A0059972790
999
BUSHING. SLEEVE RETURN LINE,K 169122
999
HOSE RETURN LINE 8/13 MM,K 169122
999
FUEL TANK LESS SENDER UNIT 80 L, FOR USE WITH SHORT MERCEDES-BENZ CAB5 2804145 350651
999
FUEL TANK ,K 169123, Replaced By: A6704700101
999
STRAP FUEL TANK TO SUPPORT
999
FUEL TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A6524700101, +001A0005409917, +001A0115426017
999
FUEL TANK , Replaced By: A6734701001
999
CHAIN FILLER CAP
999
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
999
SENDER UNIT FUEL GAUGE,K 169123
999
HOSE CLAMP FUEL LINE TO SENDER UNIT
999
FILLER CAP , Replaced By: A1244700005
999
FILLER CAP , Replaced By: A1244700005
999
FUEL STRAINER FUEL TANK,K 169123
999
FILLER CAP , Replaced By: A0004700305
