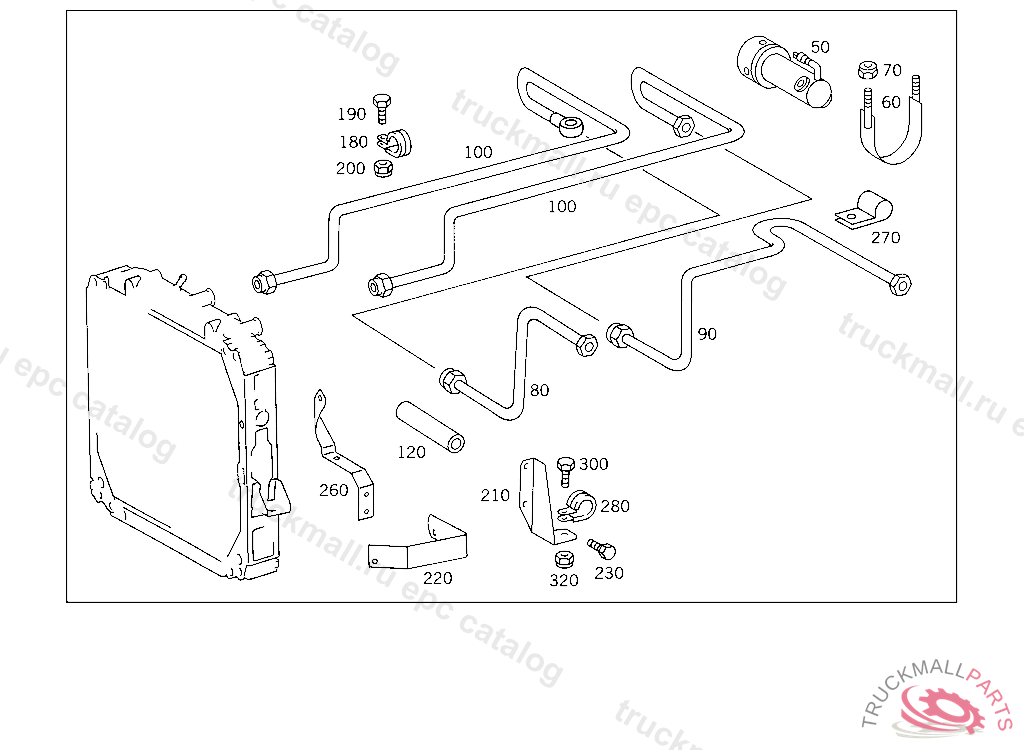

Поз.
Артикул
Описание
50
OIL PUMP
60
STRAP PUMP TO BRACKET
70
NUT , Replaced By: N913023010002
70
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
80
LINE GAS LINE 10X1,5, LENGTH AVAILABLE 3000 MM REPAIR WORK SUBJECT TO SAFETY CHECK
80
LINE RETURN LINE
80
LINE RETURN LINE
80
LINE ,5 746784
80
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 006434, Replaced By: A6762709196
80
LINE , Replaced By: A0004290101, +001N915003008202, +001N915008008402, +001N915017010200
90
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 006434, Replaced By: A6762709296
90
LINE , Replaced By: A0004290101, +001N915003008202, +001N915008008402, +001N915017010200
90
LINE FEED LINE
90
LINE ,5 746784
90
LINE GAS LINE 10X1,5, LENGTH AVAILABLE 3000 MM REPAIR WORK SUBJECT TO SAFETY CHECK
90
LINE FEED LINE
100
LINE GAS LINE 10X1,5, LENGTH AVAILABLE 3000 MM REPAIR WORK SUBJECT TO SAFETY CHECK
100
LINE , Replaced By: A0004290101, +001A0019901488, +001N915008008402
100
LINE , Replaced By: A0004290101, +001A0019901488, +001N915008008402
120
HOSE , Replaced By: A0005468930
120
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 006434, Replaced By: A6769970282
120
HOSE , Replaced By: A0189975582
120
HOSE OIL COOLER CONNECTION 450 MM, TO BE ADAPTED DURING ASSEMBLYK 131865
120
HOSE OIL LINE CONNECTION
120
INSULATING HOSE STARTING CABLE
120
HOSE OIL LINE CONNECTION,RETURN FLOW
120
HOSE OIL LINE CONNECTION,FEED
120
HOSE FROM RADIATOR TO ENGINE
180
CLAMP CABLE HARNESS MOUNTING
180
CLAMP , Replaced By: N000000001045
180
CLAMP , Replaced By: N916016010211
190
SCREW OIL LINE TO RADIATOR
190
SCREW AT FILTER BRACKET
200
NUT PUMP TO BRACKET
200
NUT AT FILTER BRACKET
200
NUT , Replaced By: N913004006001
210
BRACKET
220
BRACKET
230
SCREW BRACKET TO PLATE
260
BRACKET BELL HOUSING
270
CLAMP DELIVERY AND SUCTION LINES TO STEERING
270
CLAMP LINE MOUNTING
270
BEFESTIGUNGSSCHELLE. CLAMP LINES TO ENGINE
270
CLAMP LINE MOUNTING
280
CLAMP CABLE HARNESS MOUNTING
280
CLAMP LINE MOUNTING
280
CLAMP , Replaced By: N000000001045
280
CLAMP , Replaced By: N916016010211
300
SCREW , Replaced By: N007985006193
300
SCREW , Replaced By: N000000001146
300
SCREW , Replaced By: N304017006016
300
SCREW BRACKET TO BRACKET M 6X35 MM
300
SCREW BRACKET TO SUPPORT M 16X20
300
SCREW AT FILTER BRACKET
300
SCREW CLAMP MOUNTING M 6X16
300
SCREW PUMP TO BRACKET
300
SCREW COVER PLATE TO BRACKET
320
NUT BALL PIVOT TO LEVER
320
NUT PUMP TO BRACKET
320
NUT AT FILTER BRACKET
320
NUT , Replaced By: N913004006001
999
SCREW CONNECTION DELIVERY LINE TO STEERING
999
SEAL RING FUEL LINE TO FEED PUMP
999
RADIATOR
999
RADIATOR , Replaced By: A6775002003
999
RADIATOR , Replaced By: A6765001603
999
RADIATOR WATER
999
BRACKET , NOT USED
999
BRACKET , NOT USED
999
BRACKET , NOT USED
