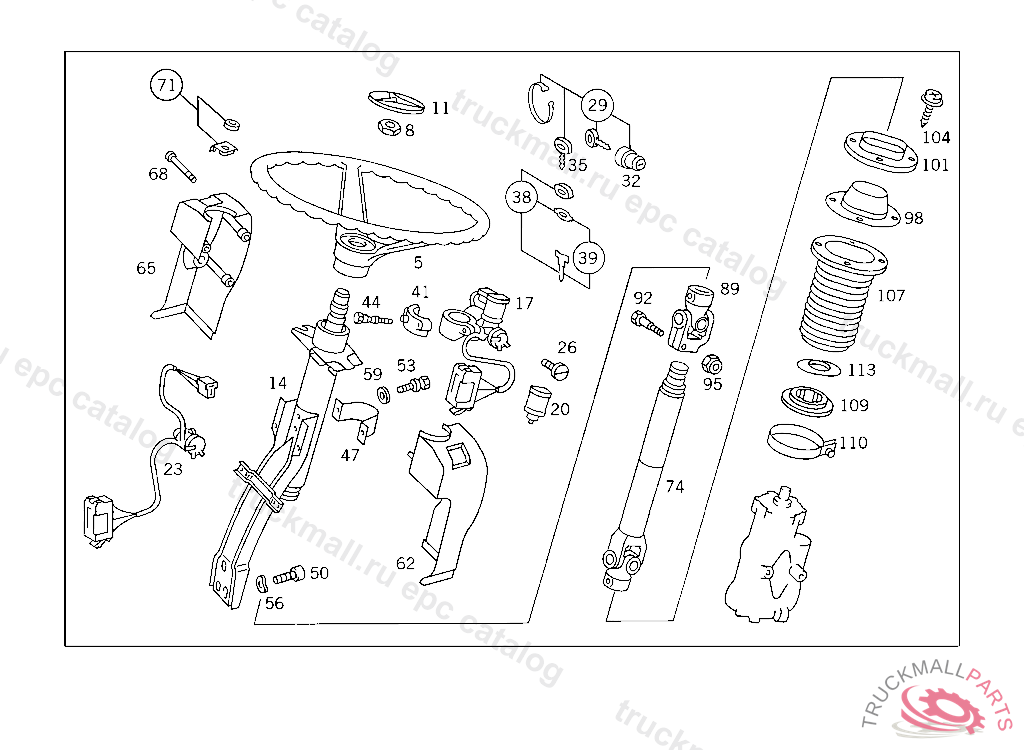

Поз.
Артикул
Описание
5
STEERING WHEEL , NO.8316INO.7C52INO.7B90INO.9051I II I
8
NUT STEERING WHEEL TO STEERING COLUMN
11
BADGE STEERING WHEEL, NO.8316INO.7C52INO.7B90INO.9051I II I
14
BEARING STEERING SHAFT
14
BEARING STEERING SHAFT, HOLE SPACING: 90/110 MM, TO BE ADAPTED DURING ASSEMBLY
17
STEERING LOCK LESS TUMBLER, FROM IDENT NO.: 5 447413, ALSO INSTALLED IN 5 446593 DELIVER ADDITIONALLY: 1X 673 462 11 39, 2X 000 462 23 71
20
CONTACTOR SOLENOID SWITCH, FROM IDENT NO.: 5 447413, ALSO INSTALLED IN 5 446593
23
SWITCH IGNITION/STARTING SWITCH,K 004869K 063044
26
SCREW , Replaced By: A0019904632
26
SCREW SWITCH BOX TO STEERING LOCK
29
TUMBLER WITH KEY
29
STEERING LOCK WITH 2 KEYS HUF, FROM IDENT NO.: 5 447413, ALSO INSTALLED IN 5 446593
32
STEERING LOCK LESS KEY HUF, FROM IDENT NO.: 5 447413, ALSO INSTALLED IN 5 446593 STATE LOCK NUMBER WHEN ORDERING
32
TUMBLER LESS KEY, STATE LOCK NUMBER WHEN ORDERING
35
KEYYMOS, STATE LOCK NUMBER WHEN ORDERING
35
KEYHUF, STATE LOCK NUMBER WHEN ORDERING
38
KEY BLANK YMOS
38
KEY BLANK HUF
39
KEY HEAD
41
BRACKET STEERING LOCK
44
SCREW (BREAK-OFF BOLT),STEERING LOCK MOUNTING
47
STRAP STEERING SHAFT BEARING TO CAB
47
STRAP STEERING SHAFT BEARING TO CAB
50
SCREWROCKINGER,TYP 59 U150
50
SCREW STEERING SHAFT BEARING TO CAB M 8X22
50
SCREW , Replaced By: A0009847929
53
SCREW (BREAKAWAY SCREW) STEERING SHAFT BEARING TO CAB
56
SPRING WASHER , Replaced By: N000137008212
56
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
56
SPRING WASHER LICENSE PLATE TO BRACKET
59
WASHER BRACKET TO FENDER BRACKET
62
SHELL STEERING COLUMN PANELLING, NO.8316 INO.7C52 INO.7B90 INO.9051 III I
65
SHELL STEERING COLUMN PANELLING, NO.8316INO.7C52INO.7B90INO.9051I II I
68
SCREW STEERING COLUMN PANELLING M 5X75.5,5 227753
68
SCREW SHELL TO STEERING COLUMN
68
SCREW STEERING COLUMN PANELLING M 5X95,5 227753
71
COVERING IDLE-SPEED-ADJUSTER COVERING, NO.8316INO.7C52INO.7B90INO.9051I II I
74
STEERING SHAFT ,5 426402
74
STEERING SHAFT ,5 426402
89
UNIVERSAL JOINT ,5 463985
89
UNIVERSAL JOINT ,5 463985
92
SCREW STEERING SHAFT TO STEERING M 8X42
92
SCREW STEERING SHAFT TO STEERING M 8X42
95
NUT. HEXAGON NUT , Replaced By: N910113008001
95
NUT STRAP TO BRACKET
98
BOOT STEERING COLUMN COVERING,TOP
101
COVERING STEERING SHAFT
104
SHEET METAL SCREW BRACKET TO CAB,5 906887
107
BOOT STEERING SHAFT
110
CLAMP W DRIVE A WASHER. CLAMP COVERING TO CAB
110
LOOM TIE , Replaced By: A0069976090
110
CLAMP , Replaced By: A0069974490
