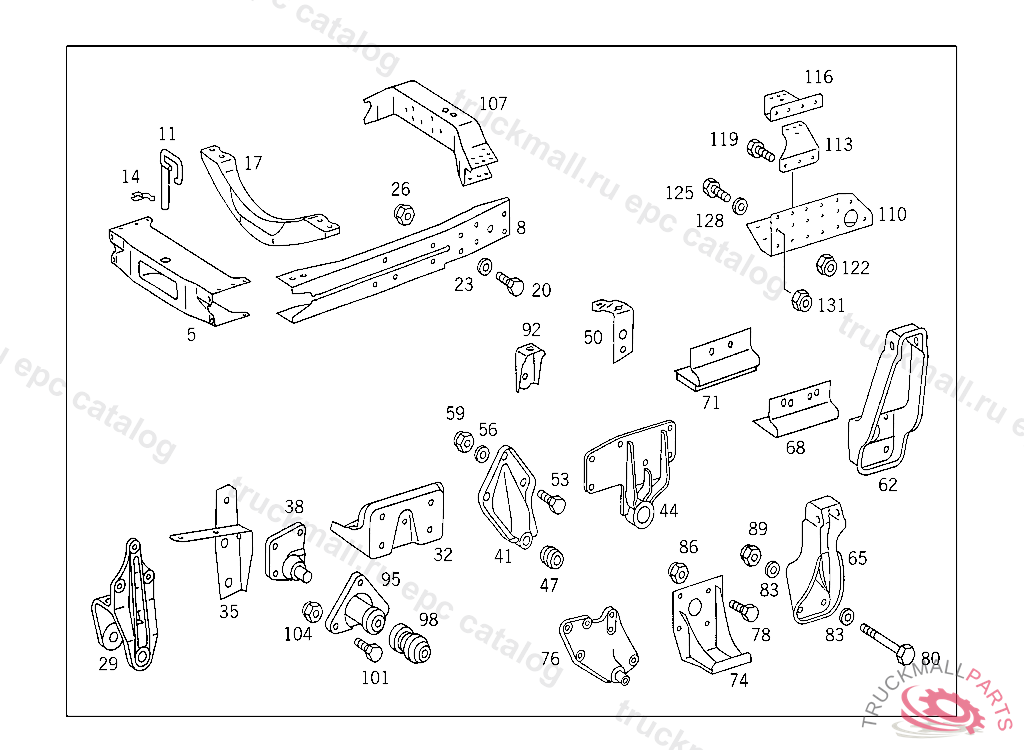

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
8
GUSSET PLATE FRONT RIGHT, TO BE ADAPTED DURING ASSEMBLY
8
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
11
COUPLING PIN FOR COUPLING MOUTH
14
U-BOLT COUPLING PIN
17
ENGINE CROSS MEMBER FRONT
29
FRONT SPRING BRACKET FRONT,5 426402
32
SUPPORT ENGINE FRONT MOUNTING
35
BRACKET OIL LINES
38
BEARING BRACKET HYDRAULIC CYLINDER
44
CONSOLE TORSION BAR TO FRAME,RIGHT, TO BE ADAPTED DURING ASSEMBLY
44
CONSOLE TORSION BAR TO FRAME,LEFT, TO BE ADAPTED DURING ASSEMBLY
47
BEARING TORSION BAR BEARING
50
BRACKET IDLING ADJUSTMENT
53
SCREW CONSOLE TO SIDE MEMBER
56
WASHER
59
NUT SUPPORT TO SIDE MEMBER
65
CONSOLE RIGHT SHOCK ABSORBER
65
CONSOLE LEFT SHOCK ABSORBER
74
PLATE RIGHT SIDE MEMBER
74
PLATE LEFT SIDE MEMBER
78
SCREW BRACKET TO SIDE MEMBER
78
SCREW , Replaced By: N304017010002
80
SCREW , Replaced By: N308676012026
80
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
83
WASHER
86
NUT , Replaced By: N910113010000
86
NUT STRAP TO BRACKET
89
NUT SUPPORT TO SIDE MEMBER
92
CONSOLE BODY MOUNTING
95
FRONT SPRING BRACKET (FRONT SPRING BRACKET),REAR,5 437117
95
REAR SUBFRAME , Replaced By: A6743220003
98
BUSHING
101
HEXAGON HEAD BOLT. SCREW BRACKET TO REAR AXLE
101
SCREW , Replaced By: N308676012040
104
NUT SUPPORT TO SIDE MEMBER
107
CROSS MEMBER TRANSMISSION,5 519079
110
REINFORCEMENT LEFT
110
REINFORCEMENT RIGHT
113
REINFORCEMENT RIGHT,5 519079
113
REINFORCEMENT LEFT
116
ANGLE LEFT
119
SCREW CONSOLE TO SIDE MEMBER
119
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
119
SCREW , Replaced By: N308676012012
122
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
125
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
125
SCREW , Replaced By: N308676012026
128
WASHER BRACKET TO FRAME
131
NUT , Replaced By: N910113012003
131
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
