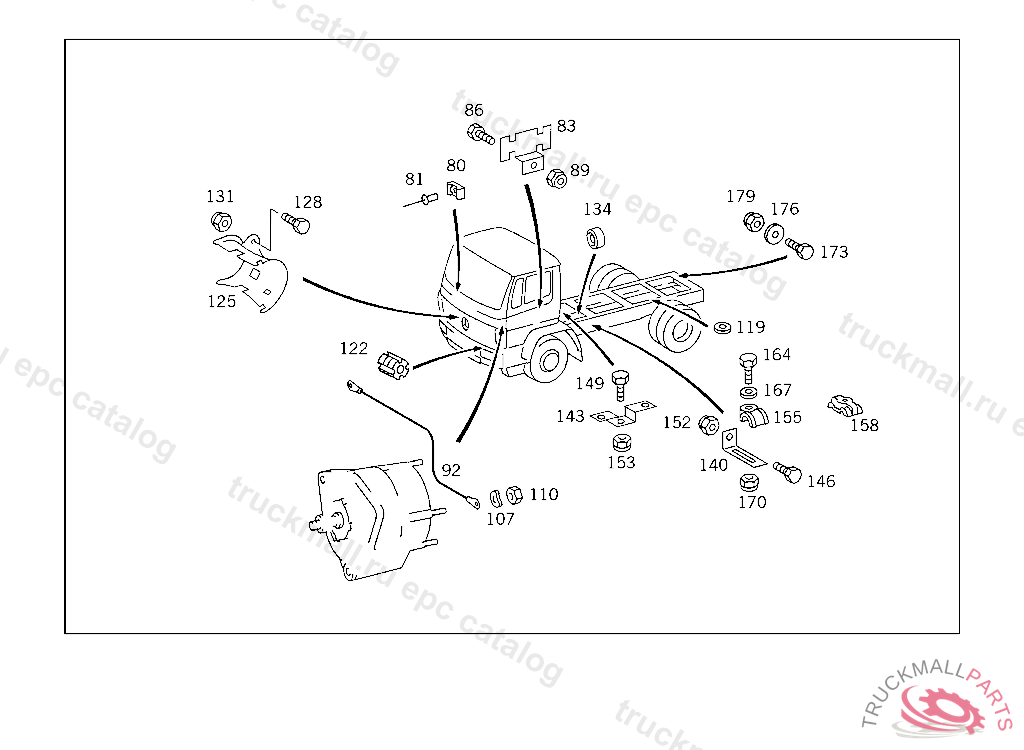

Поз.
Артикул
Описание
80
BRACKET FRAME MOUNTED CABLE HARNESS TO CAB
81
RIVET BRACKET TO CAB
83
BRACKET BREATHER LINE TO SIDE MEMBER
86
SCREW BRACKET TO CROSS CONNECTION STRUT
86
SCREW , Replaced By: N304017008034
89
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
89
NUT , Replaced By: N913004008001
89
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
92
GROUND STRAP HEAT RESISTANT, FROM ALTERNATOR TO FRAME SIDE MEMBER GROUND
107
SPRING WASHER ELECTRIC CABLE TO ALTERNATOR
107
SPRING WASHER ALTERNATOR CONNECTION W
107
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
107
SPRING WASHER ALTERNATOR CONNECTION D+
107
SPRING WASHER HEATER PLUG CABLE HARNESS
107
SPRING WASHER , Replaced By: N000137008204
107
SPRING WASHER , Replaced By: N000137008212
110
NUT , Replaced By: N304032005005
110
NUT BALL PIVOT TO LEVER
110
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
110
NUT IN CASE OF SUBSEQUENT INSTALLATION
110
NUT
119
WASHER EXHAUST MUFFLER TO STRAP
119
WASHER , Replaced By: N000125008443
122
BRACKET LINE MOUNTING
125
BRACKET CABLE HARNESS
128
SCREW END PIECE TO EXHAUST PIPE M 10X25
131
NUT STRAP TO BRACKET
131
NUT , Replaced By: N910113010000
134
WASHER BRACKET TO LEFT SIDE MEMBER
140
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
143
BRACKET BATTERY CABLE TO CROSS MEMBER
146
SCREW BRACKET TO SIDE MEMBER
149
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
149
SCREW , Replaced By: N304017008027
152
NUT , Replaced By: N910113010000
152
NUT STRAP TO BRACKET
153
NUT STRAP TO BRACKET
155
CLAMP CABLE HARNESS TO BRACKET
158
CLAMP BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING,5 579088
158
CLAMP , Replaced By: A0005462675
164
SCREW , Replaced By: N304017006026
167
WASHER COMPRESSED AIR LINE TO BRACKET
167
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
170
NUT , Replaced By: N913004006001
170
NUT PUMP TO BRACKET
173
SCREW BRACKET TO SIDE MEMBER
173
SCREW END PIECE TO EXHAUST PIPE M 10X25
176
WASHER BRACKET TO COVERING
176
WASHER , Replaced By: N009021010209
179
NUT , Replaced By: N910113010000
179
NUT STRAP TO BRACKET
999
BRACKET
999
BRACKET SENSOR CABLE TO PROTECTIVE PLATE
