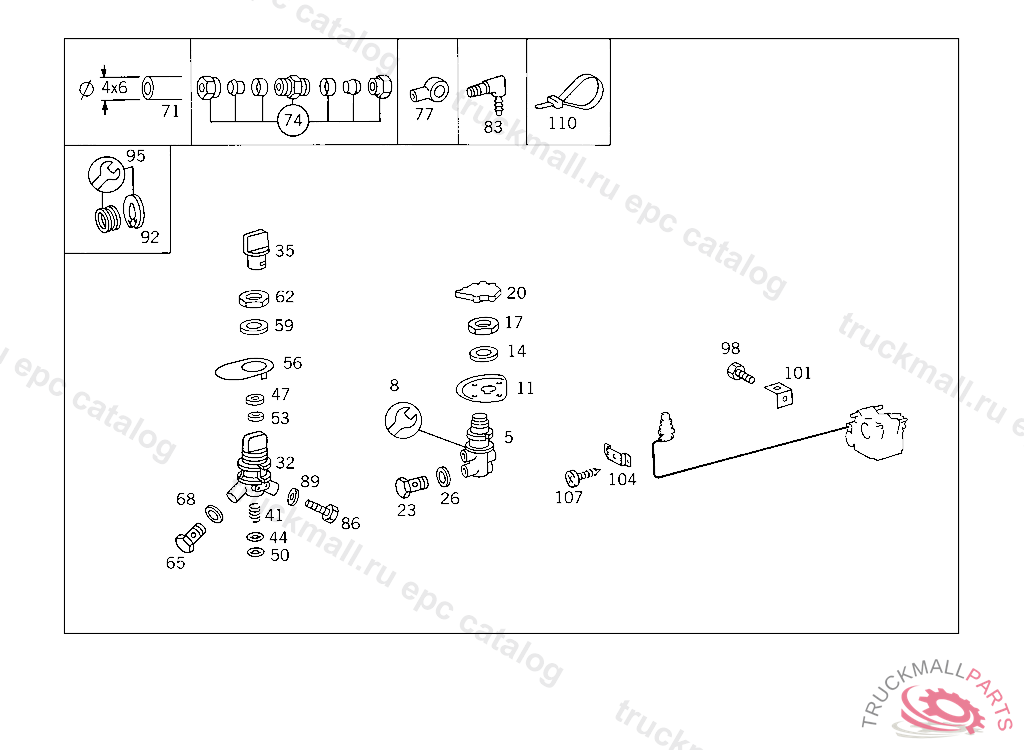

Поз.
Артикул
Описание
5
VALVE 4/3-WAY, TRANSFER CASE ACTUATION BOSCH
5
VALVE 4/3-WAY, TRANSFER CASE ACTUATION WABCO
8
REPAIR KIT 4/3-WAY VALVE WABCO
11
UNIT IDENTIFICATION PLATE ON-ROAD/OFF-ROAD SPEED
14
WASHER AT TWO-WAY VALVE
17
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
20
HANDLE VALVE
23
HOLLOW SCREW HEATING CONNECTION
26
SEAL RING LINE CONNECTION
32
VALVE DIFFERENTIAL LOCK CONTROL BOSCH
32
VALVE DIFFERENTIAL LOCK CONTROL WABCO
35
PROTECTIVE CAPBOSCH
41
SPRING INSIDE WABCO
44
SEAL RING INSIDE WABCO
47
SEAL RING
50
SEAL RING TOP WABCO
53
SEAL RING
56
UNIT IDENTIFICATION PLATE LONGITUDINAL DIFFERENTIAL LOCK
59
WASHER AT TWO-WAY VALVE
62
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
65
HOLLOW SCREW LINE CONNECTION
68
SEAL RING LINE CONNECTION
71
PLASTIC PIPE RISING PIPE 4X6 MM
71
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
74
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
77
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
77
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
83
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
83
CONNECTOR DISTRIBUTOR TO CAB
83
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
86
SCREW. UNION SCREW LINE CONNECTION
86
SCREW. UNION SCREW , Replaced By: A0009973734
89
SEAL RING , Replaced By: A0009940747
89
LOCK RING LINE CONNECTION
92
LOCK LINE CONNECTION
92
LOCK , Replaced By: A0009945448
95
REPAIR KIT , Replaced By: A0309971748
95
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
98
SCREW , Replaced By: N304017006034
98
SCREW COVER PLATE TO COVER PLATE M 6 X 10
101
BRACKET SENSOR CABLE TO FRONT AXLE
104
BRACKET COMPRESSED AIR LINE MOUNTING,5 181197
107
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
107
SHEET METAL SCREW , Replaced By: N000000000459
107
SHEET METAL SCREW , Replaced By: N007981004339
110
LOOM TIE LINE MOUNTING
110
LOOM TIE LINE MOUNTING 280 MM
