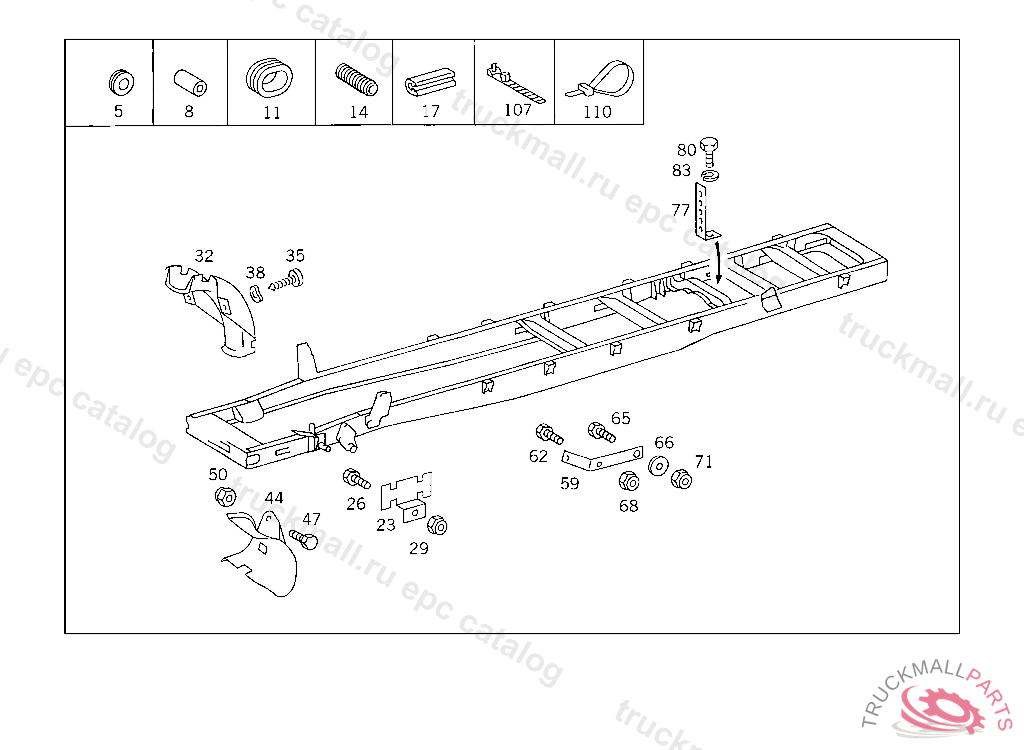

Поз.
Артикул
Описание
5
GROMMET CABLE HARNESS THRU SIDE MEMBER
8
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
11
GROMMET FOR PASSAGE OF LINE
14
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
17
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
17
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
17
EDGE GUARD SECTION , Replaced By: A0029873572
23
BRACKET BREATHER LINE TO SIDE MEMBER
26
SCREW BRACKET TO CROSS CONNECTION STRUT
26
SCREW , Replaced By: N304017008034
29
NUT , Replaced By: N913004008001
32
BRACKET COMPRESSED AIR LINE TO CAB
35
SHEET METAL SCREW BRACKET TO CAB
38
SPRING WASHER LICENSE PLATE TO BRACKET
44
BRACKET CABLE HARNESS
44
BRACKET , Replaced By: A6735402673
44
BRACKET LEFT
47
SCREW END PIECE TO EXHAUST PIPE M 10X25
47
SCREW END PIECE TO EXHAUST PIPE M 10X25
50
NUT STRAP TO BRACKET
50
NUT STRAP TO BRACKET
50
NUT , Replaced By: N910113010000
59
BRACKET LINE MOUNTING
59
BRACKET ,5 177249, Replaced By: A6734291840, +002A6739901040, +002N000961012097, +002N913004012008
62
SCREW PIPE CLAMP
62
SCREW , Replaced By: N304017008021
62
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
62
SCREW , Replaced By: N304017008027
65
SCREW , Replaced By: N308676012026
65
SCREW BRACKET TO FRAME SIDE MEMBER
66
WASHER BRACKET TO FRAME
68
NUT , Replaced By: N913004008001
71
NUT SUPPORT TO SIDE MEMBER
71
NUT END PIECE TO EXHAUST PIPE
77
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
77
BRACKET , Replaced By: A3604292940
77
BRACKET , Replaced By: A3604292440
80
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
80
SCREW , Replaced By: N304017008039
83
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
107
LOOM TIE
107
LOOM TIE , Replaced By: A1149970590
110
LOOM TIE LINE MOUNTING
110
LOOM TIE LINE MOUNTING 280 MM
999
CONNECTOR ,5 288358, Replaced By: A0019901378, +001A6734210073
999
CLAMP BRAKE HOSE
999
HOSE COMPRESSED AIR GUIDE, REAR AXLE. 220 MM
999
CLAMP BRAKE HOSE
