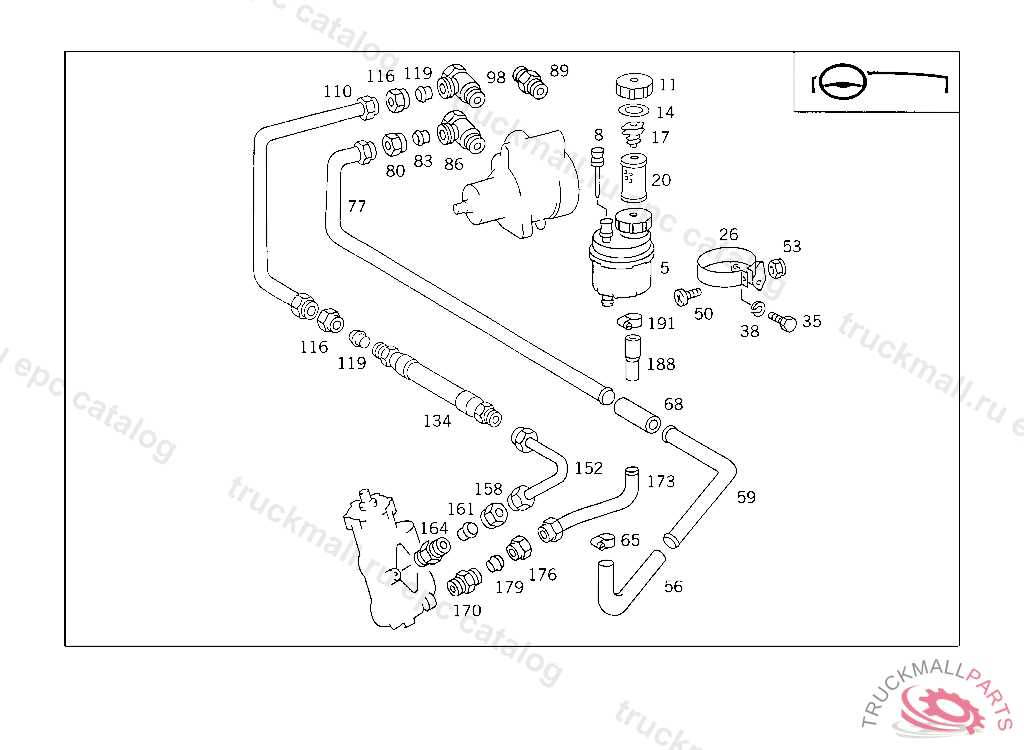

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004660867
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
26
BRACKET OIL TANK,5 094745
35
SCREW CENTRAL LOCK TO CAB M 10X16
38
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
50
SCREW OIL TANK TO BRACKET
53
NUT , Replaced By: N913004006001
53
NUT PUMP TO BRACKET
56
HOSE ,K 055044
59
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 163366
59
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138293
65
CLAMP , Replaced By: N000000000667
65
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
68
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
68
HOSE , Replaced By: A3859971582
68
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
77
LINE ,K 055043K 126843
77
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 1382945 374583
77
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
80
NUT LINE CONNECTION
80
UNION NUT LINE CONNECTION, Replaced By: N000000006243
83
GLAND , Replaced By: A0019901267
86
FITTING SUCTION LINE TO OIL PUMP
86
ELBOW FITTING SUCTION LINE TO OIL PUMP
89
FITTING DELIVERY LINE TO PUMP
98
SCREW CONNECTION DELIVERY LINE TO PUMP
98
SCREW CONNECTION DELIVERY LINE TO PUMP
110
LINE FROM PUMP TO HIGH PRESSURE HOSE,5 374583
110
LINE FROM PUMP TO HIGH PRESSURE HOSE
110
LINE12 MM, ORDER BY THE METER4 691315
110
LINE , Replaced By: A0004291001
110
LINE ,K 055043
116
UNION NUT LINE CONNECTION
116
UNION NUT LINE CONNECTION, Replaced By: N000000006239
119
SEAL CONE LINE CONNECTION
119
GLAND , Replaced By: A0019901967
134
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
134
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
134
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138293
134
HOSE POWER-STEERING-PUMP-TO-STEERING-BOX DELIVERY LINE
152
LINE , Replaced By: A0002610283
152
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
152
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,5 163366
158
NUT. UNION NUT LINE CONNECTION
161
CUTTING RING. GLAND LINE CONNECTION
164
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
170
SCREW-IN FITTING DELIVERY LINE TO PUMP
173
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 163366
173
LINE , Replaced By: A0004291001
173
LINE12 MM, ORDER BY THE METER4 691315
173
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 138293
176
UNION NUT LINE CONNECTION, Replaced By: N000000006239
176
UNION NUT LINE CONNECTION
179
GLAND , Replaced By: A0019901967
179
SEAL CONE LINE CONNECTION
188
HOSE ,K 055044
191
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
191
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
191
CLAMP HOSE TO FITTING AND TO OIL TANK
999
THRUST RING SUCTION LINE TO OIL PUMP
999
SEALING CORD SUCTION LINE TO OIL PUMP
999
PROTECTIVE CAP
999
BRACKET LINE MOUNTING,5 220227
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138294
999
BRACKET , Replaced By: A6454310740
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
NUT SUCTION LINE TO OIL PUMP
