Поз.
Артикул
Описание

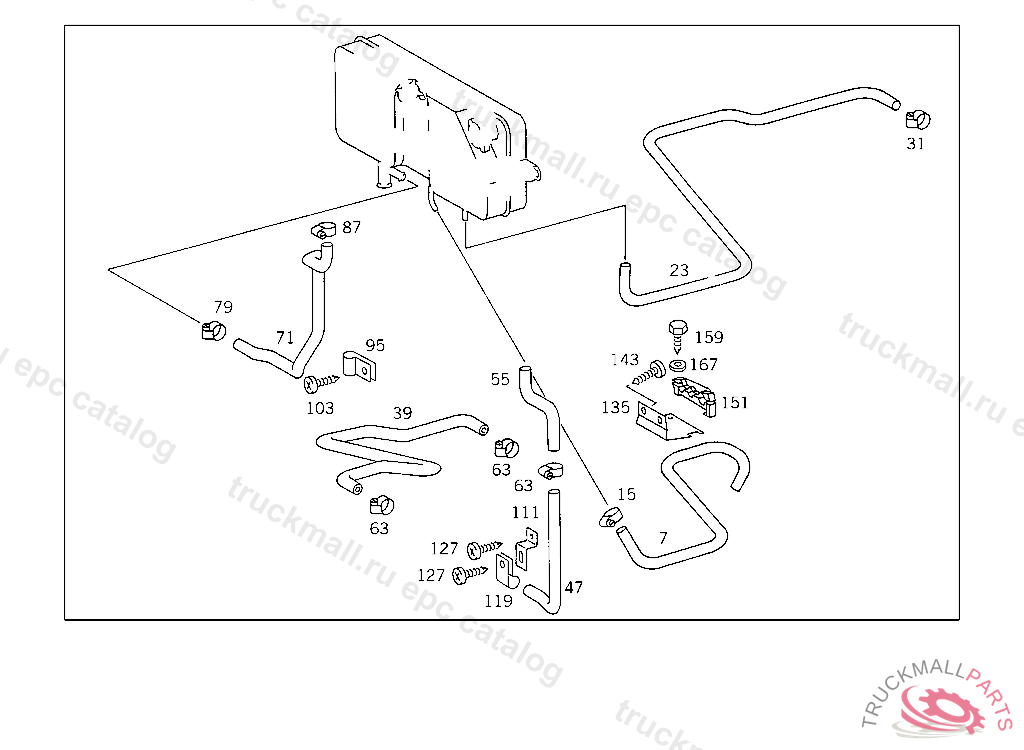

7
HOSE VENTILATION, FROM RADIATOR TO EXPANSION TANK TO 673 500 01 49
15
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
15
CLAMP , Replaced By: N000000000667
23
HOSE DE-AERATION, FROM ENGINE TO EXPANSION TANK TO 673 500 01 49
31
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
31
CLAMP , Replaced By: N916017011001
39
HOSE (HEATING LINE),FROM ENGINE TO HEATER
47
PIPE (HEATING LINE),FROM ENGINE TO HEATER
55
HOSE (HEATING LINE),FROM ENGINE TO HEATER
63
CLAMP HOSE TO FITTING AND TO OIL TANK
63
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
63
CLAMP , Replaced By: N000000000667
71
HOSE (HEATING LINE) FROM EXPANSION TANK TO HEATER
79
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
79
CLAMP , Replaced By: N000000000667
87
CLAMP HOSE TO FITTING AND TO OIL TANK
95
CLAMP HOSE TO FIRE WALL
103
SHEET METAL SCREW BRACKET TO CAB FLOOR
111
BRACKET COOLING WATER LINE TO FIRE WALL
119
CLAMP FEED LINE TO THERMOSTAT
127
SHEET METAL SCREW BRACKET TO CAB
135
BRACKET HOSE TO FIRE WALL
143
SHEET METAL SCREW BRACKET TO CAB,5 906887
151
BRACKET HOSE TO FIRE WALL
159
SHEET METAL SCREW FENDER TO BODY
167
WASHER COVER PLATE TO COVER PLATE
