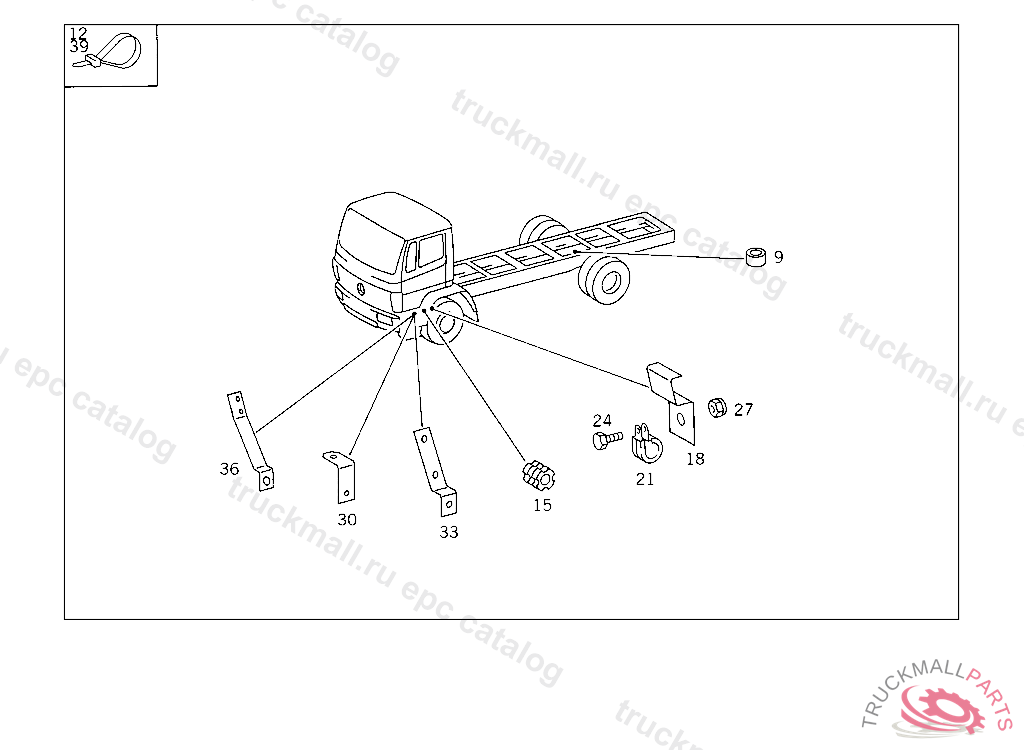

Поз.
Артикул
Описание
9
SPACER TUBE , Replaced By: A4609915140
9
SPACER TUBE REAR AXLE REGULATING SOLENOID VALVE
12
LOOM TIE LINE MOUNTING
15
BRACKET LINE MOUNTING
18
BRACKET SENSOR CABLE TO DIAPHRAGM CYLINDER
21
CLAMP SENSOR CABLE TO BRACKET
24
SCREW , Replaced By: N304017006016
24
SCREW PUMP TO BRACKET
27
NUT , Replaced By: N913004006001
27
NUT PUMP TO BRACKET
30
BRACKET AT BRAKE VALVE
30
BRACKET , Replaced By: A6522930240
33
BRACKET
36
BRACKET
39
LOOM TIE LINE MOUNTING 280 MM
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT STRAP TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW VALVE TO BRACKET
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N009021008213
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017008021
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
BRACKET SENSOR CABLE
999
BRACKET SENSOR CABLE
999
BRACKET JUNCTION BOX TO FRAME
999
BRACKET FUEL LINES TO TRANSMISSION
999
SPACER TUBE , Replaced By: A3579915740
999
SPACER TUBE BRACKET MOUNTING
