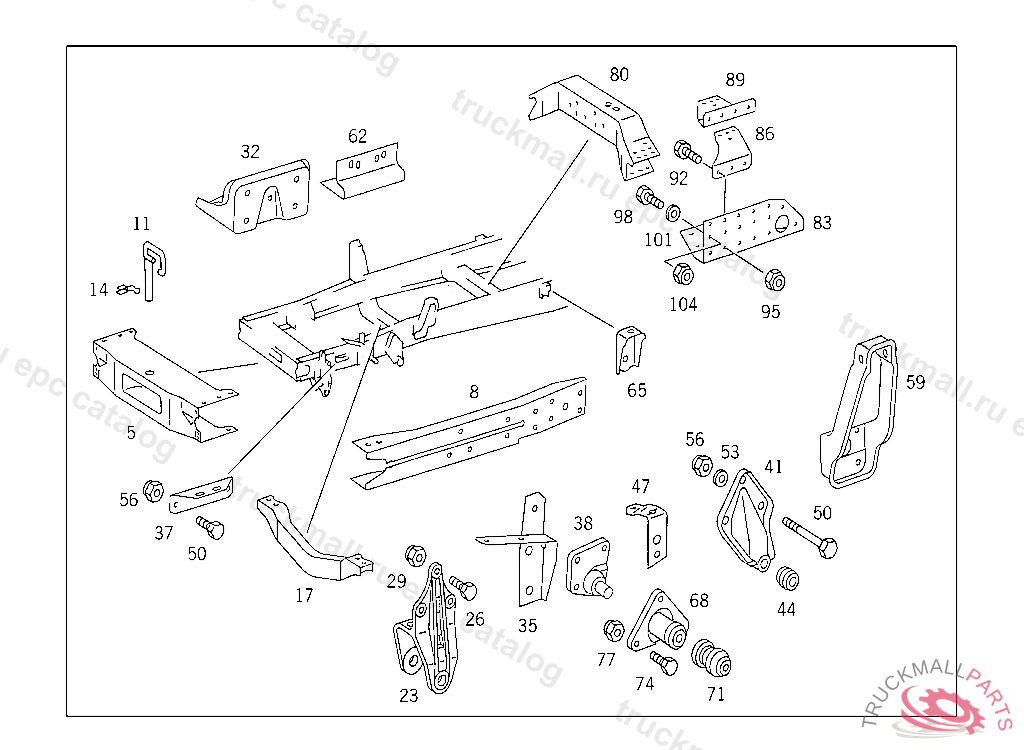

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
8
GUSSET PLATE , Replaced By: A6753120387
8
GUSSET PLATE , Replaced By: A6783100071
8
GUSSET PLATE , Replaced By: A6783100171
8
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
8
GUSSET PLATE , Replaced By: A6753120287
8
GUSSET PLATE FRONT RIGHT, TO BE ADAPTED DURING ASSEMBLY
11
COUPLING PIN FOR COUPLING MOUTH
14
U-BOLT COUPLING PIN
17
ENGINE CROSS MEMBER FRONT
17
ENGINE CROSS MEMBER , Replaced By: A6753100026, +004N000933010145
17
ENGINE CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 278970, Replaced By: A6753100126
23
FRONT SPRING BRACKET FRONT SPRING FRONT BRACKET
23
FRONT SPRING BRACKET , NOT INCLUDED IN RANGE OF DELIVERY OF FRAME, Replaced By: A6753220401, +003A3959900501, +002A3589900414, +002N913004014005, +003N913004016005
26
SCREWM 14X15X15X32
26
SCREWM 16X16X20X45
26
SCREWM 12X13X15X32
26
SCREW PLATE TO SIDE MEMBER
29
NUT CONSOLE TO SUPPORT
29
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
29
NUT , Replaced By: N910113014000
29
NUT STEERING SUPPORT TO FRAME
29
NUT , Replaced By: N910113012003
32
SUPPORT ENGINE FRONT MOUNTING
35
BRACKET OIL LINES
41
CONSOLE TORSION BAR BEARING,5 296594
44
BEARING TORSION BAR BEARING
47
BRACKET IDLING ADJUSTMENT
50
SCREW , Replaced By: N308676012013
50
HEXAGON HEAD BOLT , Replaced By: A0029902704
56
NUT , Replaced By: N910113012003
56
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
59
CONSOLE FRONT SHOCK ABSORBERS
59
CONSOLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 424558, Replaced By: A6753203678
62
ANGLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 545914, Replaced By: A6733110245
62
ANGLE AXLE STOP
68
REAR SUBFRAME , Replaced By: A6733200270
68
REAR SUBFRAME (FRONT SPRING BRACKET),REAR, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
71
BUSHING
74
SCREWM 12X13X18X35
77
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
77
NUT , Replaced By: N910113012003
80
CROSS MEMBER TRANSMISSION,5 519079
80
CROSS MEMBER ,5 519078, Replaced By: A6753120011, +001A6753112260, +001A6753112360, +001A6753112383, +001A6733121152, +001A6733121252, +008N000961012052, +006N000961012151, +014N913004012008
83
REINFORCEMENT LEFT
83
REINFORCEMENT RIGHT
86
REINFORCEMENT LEFT
86
REINFORCEMENT RIGHT
89
ANGLE , Replaced By: A6733121052
89
ANGLE LEFT
92
SCREW , Replaced By: N304017010047
92
SCREW , Replaced By: N304017010040
92
SCREW STRUT TO CROSS MEMBER M 10X25
92
SCREW CONNECTOR TO REAR SHIFTING ROD
95
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
98
SCREW BRACKET TO FRAME M 12X35
101
WASHER BRACKET TO FRAME
104
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
104
NUT , Replaced By: N910113012003
999
CROSS MEMBER
