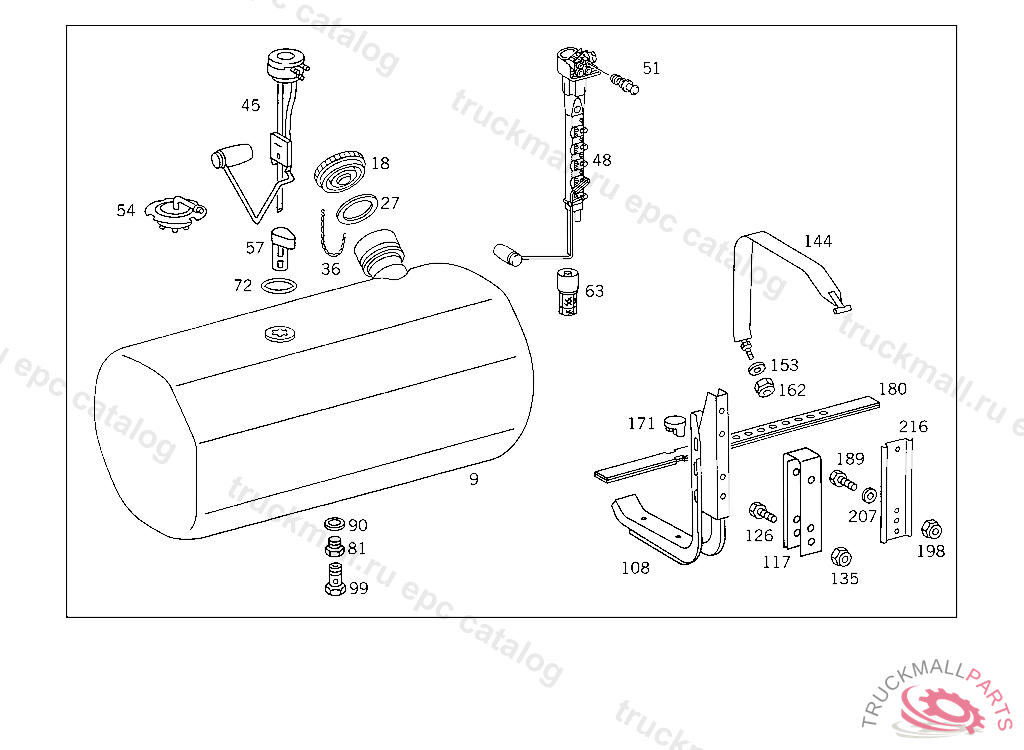

Поз.
Артикул
Описание
9
FUEL TANK210 L,K 169123
9
FUEL TANK ,K 169122, Replaced By: A6534700201, +001A0005409917, +001A0115426117
18
FILLER CAP
27
SEAL RING
36
CHAIN FILLER CAP
45
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
45
SENDER UNIT ,K 169122, Replaced By: A0085426917, +001A3529870045
48
SENDER UNIT FUEL GAUGE,K 169123
51
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
54
COVERING FUEL GAUGE
57
FUEL STRAINER FUEL TANK,K 169122
63
FUEL STRAINER FUEL TANK,K 169123
72
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
81
SCREW PLUG FUEL TANK
81
SCREW PLUG , Replaced By: N007604014110
90
SEAL RING FUEL LINE TO FEED PUMP
99
HOLLOW SCREW FUEL LINE TO FEED PUMP
99
HOLLOW SCREW , Replaced By: N915036010108
108
SUPPORT FRONT AND REAR TANKS
117
CONSOLE BATTERY SUPPORT
126
SCREW , Replaced By: N308676012026
126
SCREW , Replaced By: N308676012026
135
NUT SUPPORT TO SIDE MEMBER
135
NUT SUPPORT TO SIDE MEMBER
144
STRAP FUEL TANK TO SUPPORT
153
WASHER
162
NUT SUPPORT TO SIDE MEMBER
171
STOP SUPPORTING RAIL
180
PROTECTIVE RAIL FUEL TANK TO CONSOLE,5 429713
189
SCREW BRACKET TO CROSS CONNECTION STRUT
189
SCREW , Replaced By: N304017008034
198
NUT , Replaced By: N913004008001
207
WASHER FRONT CONSOLE
207
WASHER FRONT CONSOLE
207
WASHER BRACKET TO FRAME
216
REINFORCEMENT REAR CONSOLE
216
REINFORCEMENT REAR CONSOLE
216
REINFORCEMENT REAR CONSOLE
216
REINFORCEMENT REAR CONSOLE
999
LOOM TIE LINE MOUNTING 280 MM
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
