Поз.
Артикул
Описание

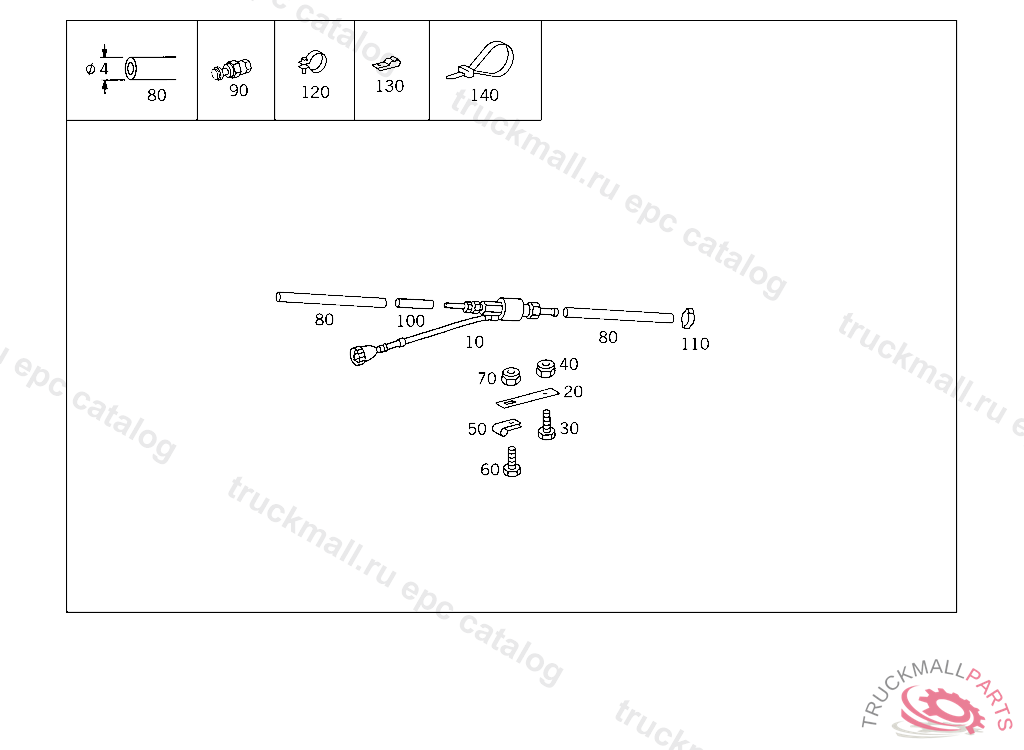

10
AUXILIARY PUMP FUEL-OIL PUMP,K 181478
20
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
30
SCREW END PIECE TO EXHAUST PIPE M 10X25
40
NUT , Replaced By: N910113010000
40
NUT STRAP TO BRACKET
50
CLAMP PUMP TO BRACKET
60
SCREW PUMP TO BRACKET
70
NUT PUMP TO BRACKET
70
NUT , Replaced By: N913004006001
80
HOSE FUEL LINE, ORDER BY THE METER
90
CONNECTOR
100
HOSE , Replaced By: A4279970982
100
HOSE PLASTIC PIPE,K 223529
110
LOOM TIE LINE MOUNTING
120
CLAMP LINE MOUNTING
130
CLIP FUEL LINE TO CAB CONSOLE
130
CLIP FUEL LINE TO CAB CONSOLE
140
LOOM TIE LINE MOUNTING
140
LOOM TIE LINE MOUNTING 280 MM
999
SEAL RING FUEL GAUGE SENDER UNIT CONNECTION
