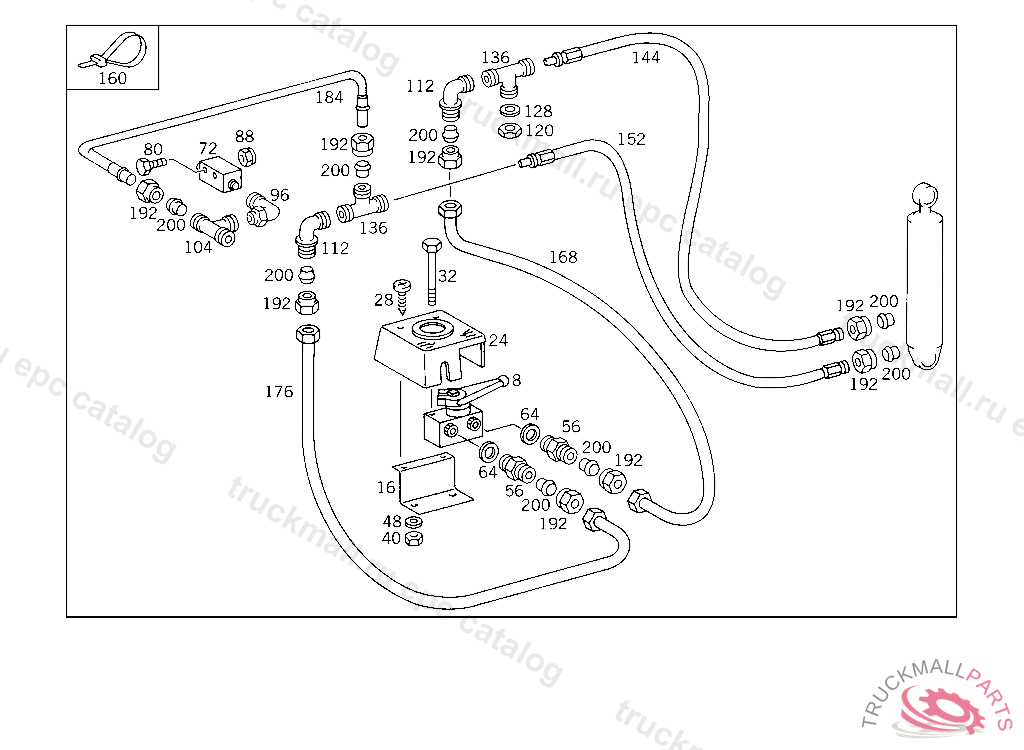

Поз.
Артикул
Описание
8
VALVE 2/2-WAY VALVE
16
BRACKET 2/2-WAY VALVE
24
COVER PLATE 2/2-WAY VALVE
28
SHEET METAL SCREW BRACKET TO FLOOR PLATE
28
SHEET METAL SCREW , Replaced By: N000000000460
32
SCREW VALVE TO CAB
40
NUT PUMP TO BRACKET
40
NUT , Replaced By: N913004006001
48
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
48
WASHER COMPRESSED AIR LINE TO BRACKET
56
FITTING 3/2-WAY VALVE,CONNECTION: "30"
56
SCREW-IN FITTING , Replaced By: A0029978472
64
SEAL RING LINE CONNECTION
72
CYLINDER CENTRAL LOCK
80
SCREW DISTRIBUTOR TO CAB
88
NUT PUMP TO BRACKET
88
NUT , Replaced By: N913004006001
96
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
96
FITTING , Replaced By: A0019909871
96
FITTING FROM PUMP TO CYLINDER
104
T-FITTING EXHAUST-BRAKE POWER CYLINDER
104
FITTING , Replaced By: A0019900170
112
FITTING OIL LINE CONNECTION
120
NUT FITTING TO CAB FLOOR
128
WASHER
136
T-FITTING EXHAUST-BRAKE POWER CYLINDER
136
FITTING , Replaced By: A0019900170
144
HOSE FROM FITTING TO CYLINDER
152
HOSE FROM FITTING TO CYLINDER
160
LOOM TIE , Replaced By: A0019978490
168
LINE , Replaced By: A0004290001
176
LINE , Replaced By: A0004290001
176
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
184
HOSE , Replaced By: A6565500159
192
UNION NUT
200
GLAND , Replaced By: A0019901667
200
SEAL CONE
999
HOSE FROM FITTING TO CYLINDER
999
HOSE FROM FITTING TO CYLINDER
999
SCREW DISTRIBUTOR TO CAB
999
NUT , Replaced By: N913004006001
