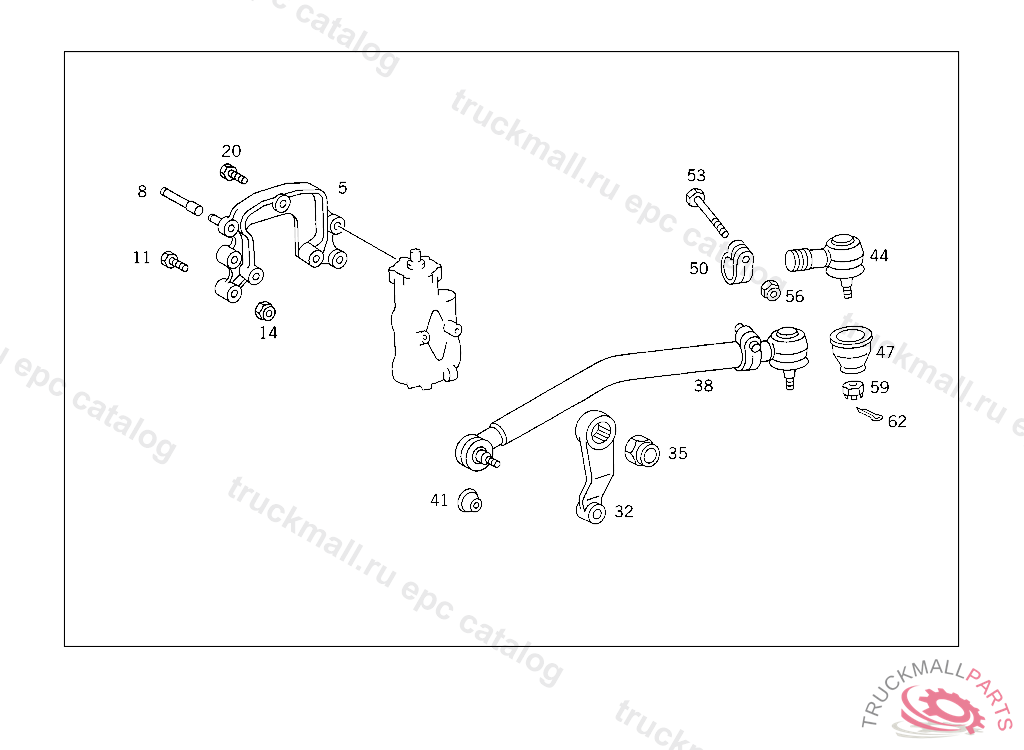

Поз.
Артикул
Описание
5
STEERING BRACKET
5
STEERING SUPPORT ,K 055088
5
STEERING SUPPORT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6754612340
8
PIN
11
SCREW , Replaced By: N308676016013
11
SCREW , Replaced By: N308765016002
11
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
11
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
11
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
14
NUT CONSOLE TO SUPPORT
14
NUT , Replaced By: N910113016001
20
SCREW , Replaced By: N308676016006
20
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
32
PITMAN ARM ,K 055088
32
PITMAN ARM ,5 424631K 055088
35
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
38
DRAG LINKLEMFOERDER,5 424631K 054643
38
DRAG LINKLEMFOERDER,K 054644
38
DRAG LINKLEMFOERDER,K 054644
38
DRAG LINKEHRENREICH,5 424631K 054643
38
DRAG LINKEHRENREICH,5 424631K 054643
38
DRAG LINKLEMFOERDER,5 424631K 054643
41
BOOT FIXED PART OF JOINT
41
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300885
44
JOINT R.H. THREAD LEMFOERDER,5 180856
44
DRAG LINK END , Replaced By: A0004602748
44
DRAG LINK END , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004602648
44
DRAG LINK END TO BE SCREWED INTO DRAG LINK EHRENREICH
44
DRAG LINK END ,K 055088
47
BOOT SCREWED PART OF JOINT
50
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
50
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
53
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
53
SCREW , Replaced By: N308676012017
56
NUT , Replaced By: N910113012003
56
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
59
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
62
COTTER PINROCKINGER TYP 260 G140
999
SCREW BRACKET TO REAR AXLE M 20X1.5X40
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
FITTED SCREW STEERING TO STEERING BRACKET M 20X40,K 055089
999
WASHER CONNECTION OF LEFT TOP ANTINOISE CAPSULES, ON VEHICLES WITH LONG PLATFORM
999
PITMAN ARM ,K 055089
999
PITMAN ARM ,K 055089
999
STEERING SUPPORT ,K 055089
999
STEERING BRACKET ,K 244310
999
BRACKET STEERING MOUNTING,K 055089
999
STEERING BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6754601129
999
BRACKET AIR INTAKE PIPE
