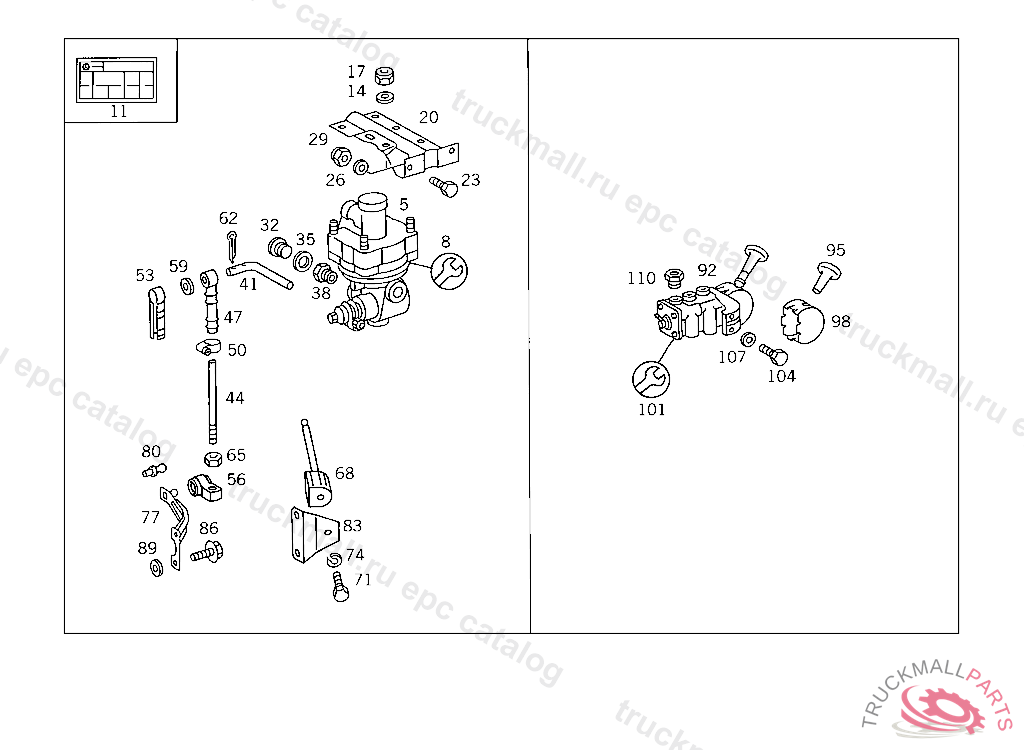

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
8
REPAIR KIT BRAKE POWER REGULATOR KNORR, Replaced By: A0004301007
8
REPAIR KIT BRAKE POWER REGULATOR BOSCH
8
REPAIR KIT BRAKE POWER REGULATOR WABCO
8
REPAIR KIT BRAKE POWER REGULATOR KNORR
11
GUIDE SIGN LOAD-DEPENDING BRAKE,5 936366
14
WASHER EXHAUST MUFFLER TO STRAP
14
WASHER , Replaced By: N000125008443
17
NUT , Replaced By: N913004008001
17
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
BRACKET BRAKE POWER REGULATOR
23
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
23
SCREW LEFT AND RIGHT CONSOLES TO CAB
23
SCREW , Replaced By: N308676012015
26
WASHER BRACKET TO FRAME
29
NUT , Replaced By: N910113010000
29
NUT SUPPORT TO SIDE MEMBER
29
NUT STRAP TO BRACKET
38
SCREW. UNION SCREW LINE CONNECTION
38
SCREW. UNION SCREW LINE CONNECTION
38
SCREW. UNION SCREW , Replaced By: A0009973734
41
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
44
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
47
CONNECTOR PULL ROD TO LEVER
50
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
50
CLAMP , Replaced By: N000000000665
53
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
56
BALL SOCKET PULL ROD
59
WASHER EXHAUST MUFFLER TO STRAP
59
WASHER , Replaced By: N000125008443
62
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
65
NUT
68
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL,5 557360K 049885
71
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
74
LOCK WASHER FITTING TO BRACKET
83
BRACKET BRACKET TO REAR AXLE HOUSING
92
VALVE (PARKING BRAKE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
92
VALVE (PARKING BRAKE VALVE) WABCO
92
VALVE (PARKING BRAKE VALVE) WABCO
92
VALVE (PARKING BRAKE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
95
HANDLETO 001 430 08 81,BOSCH
95
HANDLETO WABCO
98
PROTECTIVE CAPTO BOSCH
98
PROTECTIVE CAPTO WABCO
101
REPAIR KITTO 001 430 56 81,001 430 57 81
101
REPAIR KITBOSCH
101
REPAIR KIT , Replaced By: A0034303181
104
SCREW , Replaced By: N304017008039
104
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
107
WASHER EXHAUST MUFFLER TO STRAP
107
WASHER , Replaced By: N000125008443
110
SCREW. UNION SCREW , Replaced By: A0009973734
110
SCREW. UNION SCREW LINE CONNECTION
999
ADHESIVE FOIL GUIDE SIGN
