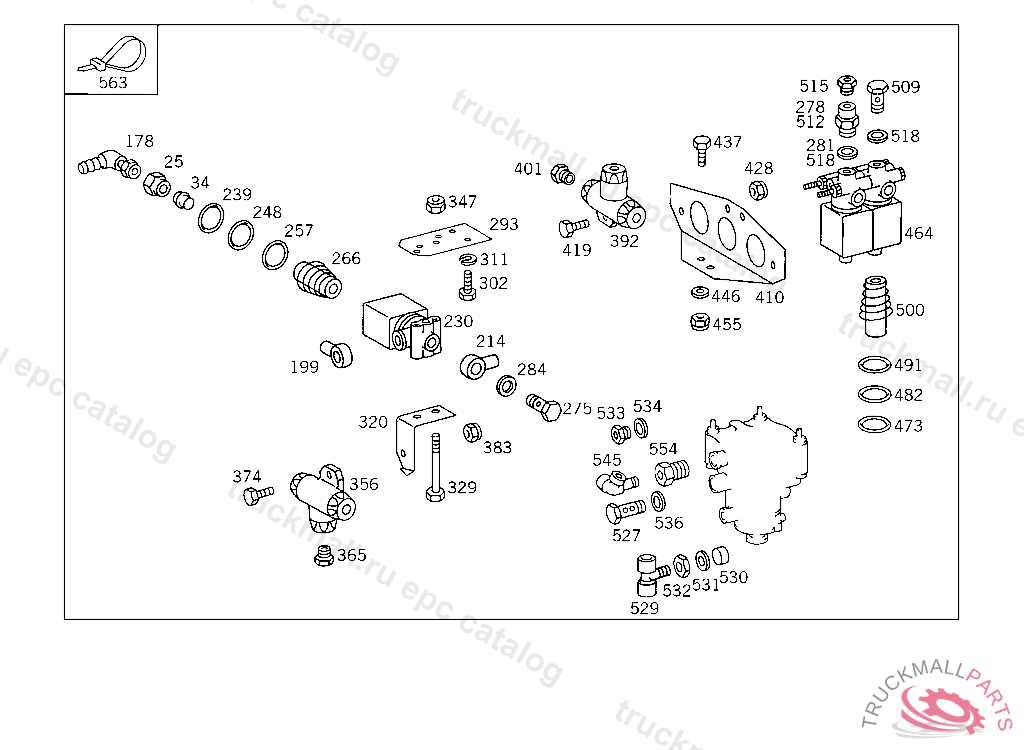

Поз.
Артикул
Описание
25
UNION NUT LINE CONNECTION,5 999999K 040105
34
GLAND , Replaced By: A0019901667
178
ELBOW FITTING 3/2-WAY VALVE BREATHING
199
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
214
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
214
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
214
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM,5 999999K 040105
230
VALVE (3/2-WAY SOLENOID VALVE) WABCO
239
SEAL RINGWABCO
248
SEAL RINGWABCO
257
SEAL RINGWABCO
266
VALVE PARTWABCO
275
HOLLOW SCREW HEATING CONNECTION
278
FITTING LINE CONNECTION
281
SCREW. UNION SCREW LINE CONNECTION
281
SCREW. UNION SCREW , Replaced By: A0009973734
284
SEAL RING LINE CONNECTION
293
BRACKET SOLENOID VALVE,5 7668945 800000-5 806949
302
SCREW , Replaced By: N304017006016
302
SCREW PUMP TO BRACKET
311
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
320
BRACKET ,5 7668945 800001-5 806949, Replaced By: A3604292940
320
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
329
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
329
SCREW , Replaced By: N304017008043
329
SCREW , Replaced By: N304017008016
329
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
329
SCREW VALVE TO BRACKET M 8X55
347
NUT , Replaced By: N913004008001
347
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
356
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
356
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
356
VALVE , Replaced By: A0044291544
356
SHUTTLE VALVE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0044292444
365
SCREW. UNION SCREW , Replaced By: A0009973734
365
SCREW. UNION SCREW LINE CONNECTION
365
SCREW. UNION SCREW LINE CONNECTION
374
SCREW , Replaced By: N304017008034
374
SCREW BRACKET TO CROSS CONNECTION STRUT
383
NUT , Replaced By: N913004008001
392
VALVE , Replaced By: A0044291544
392
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
401
SCREW. UNION SCREW LINE CONNECTION
410
BRACKET SHUTTLE VALVE, NOT USED
410
BRACKET SHUTTLE VALVE
419
SCREW PIPE CLAMP
419
SCREW , Replaced By: N304017008021
428
NUT , Replaced By: N913004008001
437
SCREW END PIECE TO EXHAUST PIPE M 10X25
446
WASHER RADIATOR TO RUBBER MOUNTING
446
WASHER , Replaced By: N006902011100
446
WASHER , Replaced By: N000125010532
446
WASHER , Replaced By: N006902011102
446
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
455
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
464
VALVE 3/2-WAY
473
SEAL RINGWABCO
482
SEAL RINGWABCO
491
SEAL RINGWABCO
500
VALVE PARTWABCO
509
HOLLOW SCREW HEATING CONNECTION
512
FITTING LINE CONNECTION
515
SCREW. UNION SCREW LINE CONNECTION
515
SCREW. UNION SCREW , Replaced By: A0009973734
518
SEAL RING LINE CONNECTION
527
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
529
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
530
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
531
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
532
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
533
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
534
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
536
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
545
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
554
SCREW. UNION SCREW LINE CONNECTION
563
LOOM TIE LINE MOUNTING 280 MM
