Поз.
Артикул
Описание

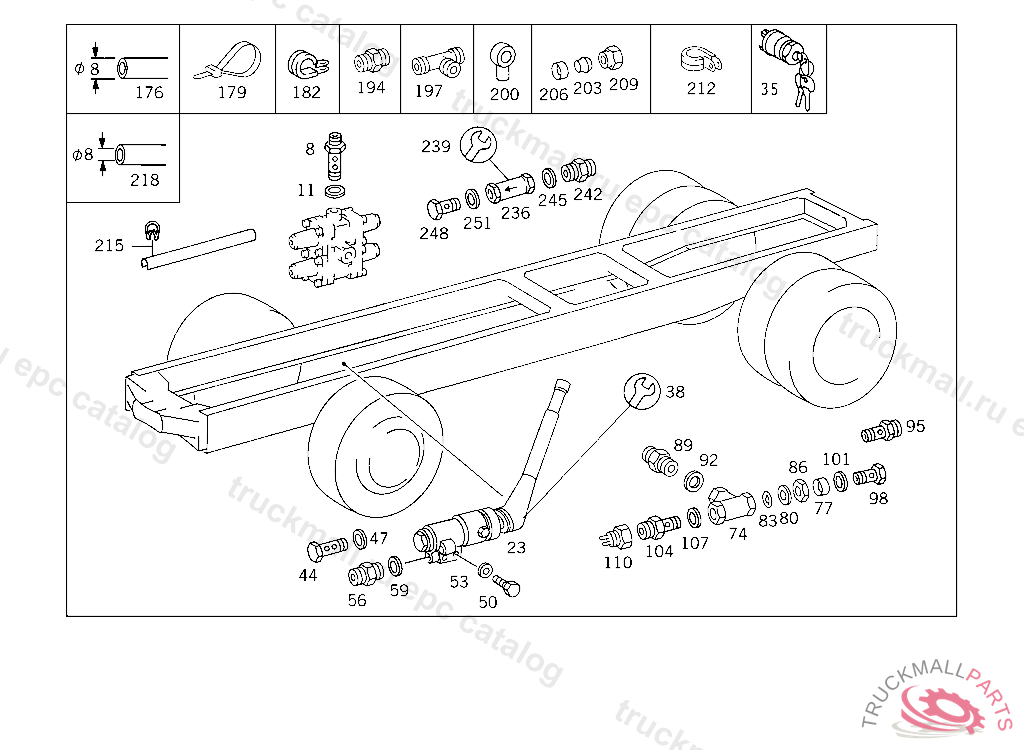

8
HOLLOW SCREW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
8
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
8
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
11
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
11
SEAL RINGTO 006 997 00 72
11
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
23
VALVE (PARKING BRAKE VALVE)
35
SWITCH TO 695 430 71 81
38
REPAIR KIT REPAIR KIT TO 695 430 71 81
44
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
47
SEAL RING FUEL LINE TO FEED PUMP
50
SCREW AIR DUCT TO CAB
50
SCREW PLUG SOCKET TO FRAME
53
WASHER TRAILER PLUG SOCKET TO BRACKET
56
FITTING LINE CONNECTION, Replaced By: N000000006446
56
SCREW-IN FITTING ,D 091465
59
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
59
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
59
SEAL RING LINE CONNECTION
74
VALVE (TRAILER CONTROL VALVE) "KNORR"
74
VALVE (TRAILER CONTROL VALVE) "KNORR"
74
VALVE TWO-WAY
77
VALVE BODYTO 002 429 95 44
80
THRUST RING LOCKING VALVE
80
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
80
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
83
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
86
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
86
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
89
FITTING LOCKING VALVE,CONNECTION: "2"
92
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
92
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
92
SEAL RINGTO 006 997 00 72
95
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
95
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "11"
98
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
101
SEAL RINGTO 006 997 00 72
101
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
101
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
104
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
104
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "11"
104
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
104
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
104
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
107
SEAL RINGTO 006 997 00 72
107
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
107
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
110
SWITCH PRESSURE SWITCH
110
SWITCH , Replaced By: A0015454114
176
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
176
PLASTIC PIPE8X6 MM, ORDER BY THE METER
179
LOOM TIE ELECTRIC CABLE MOUNTING
179
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
179
LOOM TIE , Replaced By: A3459977390
182
CLAMP DELIVERY AND SUCTION LINES TO FRAME
194
CONNECTION FITTING ,TB108828
197
T-FITTING FITTING,5 461950
200
BANJO UNION HEATING CONNECTION,K 169122
200
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
203
GLAND , Replaced By: A0019901667
203
GLAND LINE CONNECTION
206
FITTING , Replaced By: N915062006000
206
SLEEVE LINE CONNECTION
209
UNION NUT LINE CONNECTION
212
CLAMP DELIVERY AND SUCTION LINES TO FRAME
215
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
215
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
218
INSULATING HOSE RED, ORDER BY THE METER
218
INSULATING HOSE COLOR CODE BLUE,YB227219
236
VALVE (CHECK VALVE)
236
VALVE (CHECK VALVE)
236
VALVE (CHECK VALVE)
239
REPAIR KITWABCO
242
FITTING , Replaced By: A0009970171
242
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
245
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
248
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
251
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
HOLLOW SCREW , Replaced By: N915036010108
999
TAPPING SCREW. SHEET METAL SCREW ,D 091466
999
CLAMP BATTERY POS. CABLE TO BRACKET
999
CLAMP BATTERY CABLE TO BRACKET
999
BRACKET ,D 091466
999
BRACKET AT SHIFTING ROD
999
PLUG BLEEDING,D 013038
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
CONNECTOR6 MM,D 013038
999
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
999
CLAMP PEDAL BEARING BRACKET,1B 961216
999
CLAMP DELIVERY AND SUCTION LINES TO FRAME 22/15
999
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
ELBOW FITTING , Replaced By: A0049905371
999
SCREW. UNION SCREW LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK , Replaced By: A0009945448
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SEAL RING , Replaced By: A0009940747
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
CONNECTOR , Replaced By: A0029905478
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
SPRING
999
VALVE
999
ADAPTER FITTING EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
999
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
