Mercedes N912004008102 - Кольцо стопорное

508 I INDONESIA 684.006

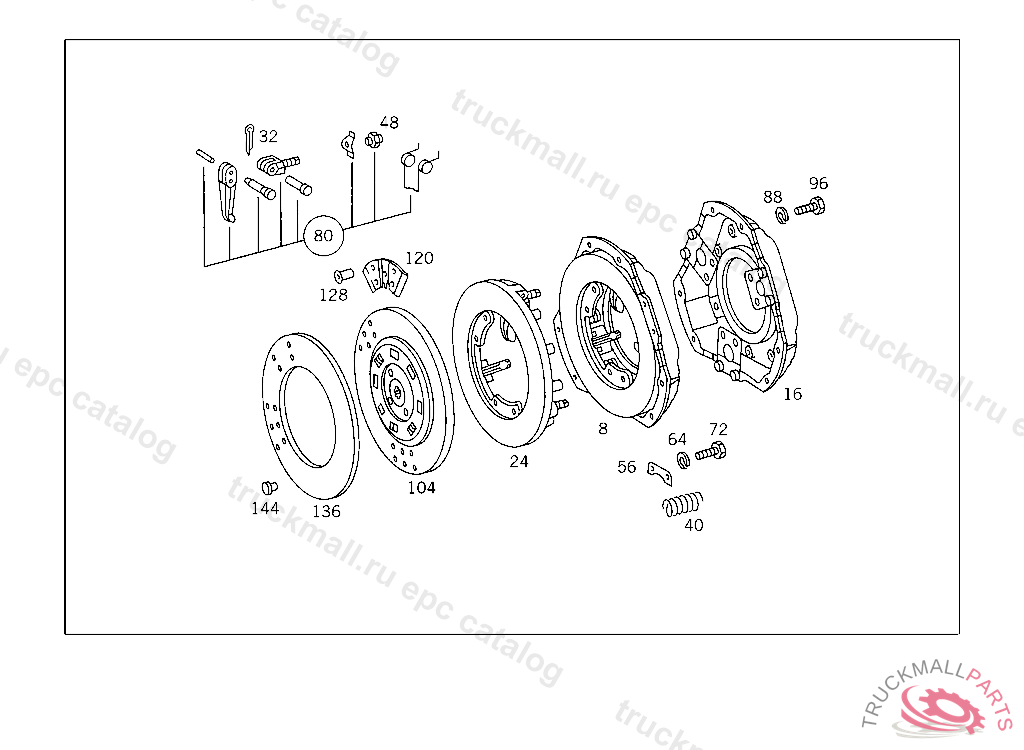

25 CLUTCH - 001 CLUTCH IL. 1

Поз.
Артикул
Описание
8
A0032501004
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
A3082500004
CLUTCH PRESSURE PLATE
16
H983082520032
HOUSING
24
H983082500104
CLUTCH PRESSURE PLATE
32
N000094002030
COTTER PIN ROD TO LEVER
40
H983082520020
PRESSURE SPRING
48
A0002523372
NUT FOR BRACKETS
56
A0002520573
LOCKTO 002 250 67 04
64
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
72
N000933008005
SCREW
80
A3445867025
REPAIR KIT
88
N912004008104
LOCK WASHER
96
A3122521071
SCREW CLUTCH TO FLYWHEEL
104
A0072501503
CLUTCH DISC
104
A0022507403
CLUTCH DISC
104
A3082507003
CLUTCH DISC , Replaced By: A0072501503
120
A0002520919
LEAF SPRING
128
A0002520175
RIVET LEAF SPRING TO CLUTCH DISC 4X6 MM
136
A3082527010
CLUTCH LINING *** TO 308 250 70 03
136
A0002528110
CLUTCH LINING
144
A0002521275
RIVET LINING WITH INTERMEDIATE SPRING
144
A0002524375
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
144
A3452527075
RIVETTO 345 250 74 03,345 250 75 03
