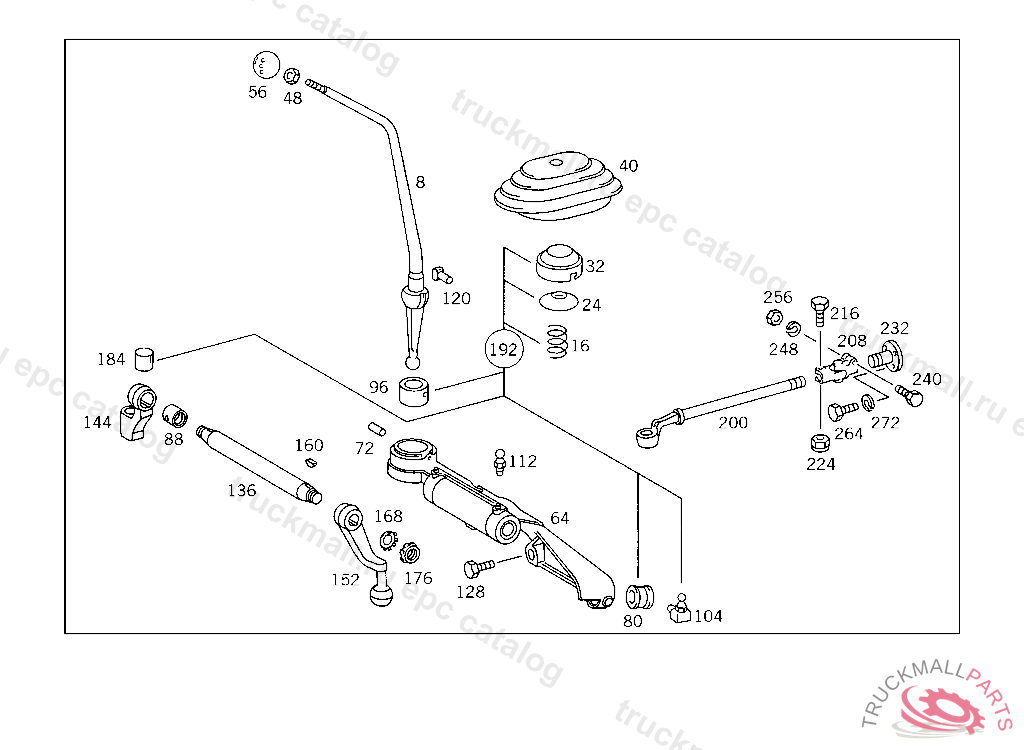

Поз.
Артикул
Описание
8
SHIFT LEVER ,4 832831
16
SPRING GEARSHIFT LEVER LOWER PART,D 209705
24
SPHERICAL PIECE GEARSHIFT LEVER LOWER PART,D 203092
32
COVER
40
BOOT SHIFT LEVER UPPER PART
48
NUT , Replaced By: N308675010000
56
HANDLE (GEARSHIFT LEVER KNOB)
64
BEARING BRACKET SHIFT LEVER BEARING,4 2422018 000001
72
GROOVED PIN
80
BUSHING
88
BUSHING ,020718
96
BEARING SHIFT LEVER BEARING, UP TO IDENT NO. 207851 FROM IDENT NO. 207852 SEE MOCROFICHE, MODEL 712.0
104
GREASE NIPPLE
112
GREASE NIPPLE , Replaced By: N071412008102
120
SLIDE SHIFT CASE
128
SCREW BEARING BRACKET TO FRAME,D 006005
136
SHIFTING ROD BEARING BRACKET
144
END PIECE BEARING BRACKET
152
END PIECE BEARING BRACKET,4 242201
160
WOODRUFF KEY FLANGE TO SHIFTING TUBE
168
LOCK PLATE , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
176
NUT , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
184
FOLLOWER (BUSHING),FRONT SHIFTING ROD
192
REPAIR KIT SHIFTING PARTS
200
SHIFTING ROD FROM SHIFT CASE TO TRANSMISSION,4 832831
208
JOINT REAR SHIFTING ROD
216
SCREW SHIFTING ROD TO JOINT
224
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
232
SHIFTING ROD (CONNECTOR),4 486266
240
SCREW
248
LOCK WASHER
256
NUT SHIFTING ROD TO UNIVERSAL JOINT
264
SCREW CONNECTOR TO REAR SHIFTING ROD
272
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
