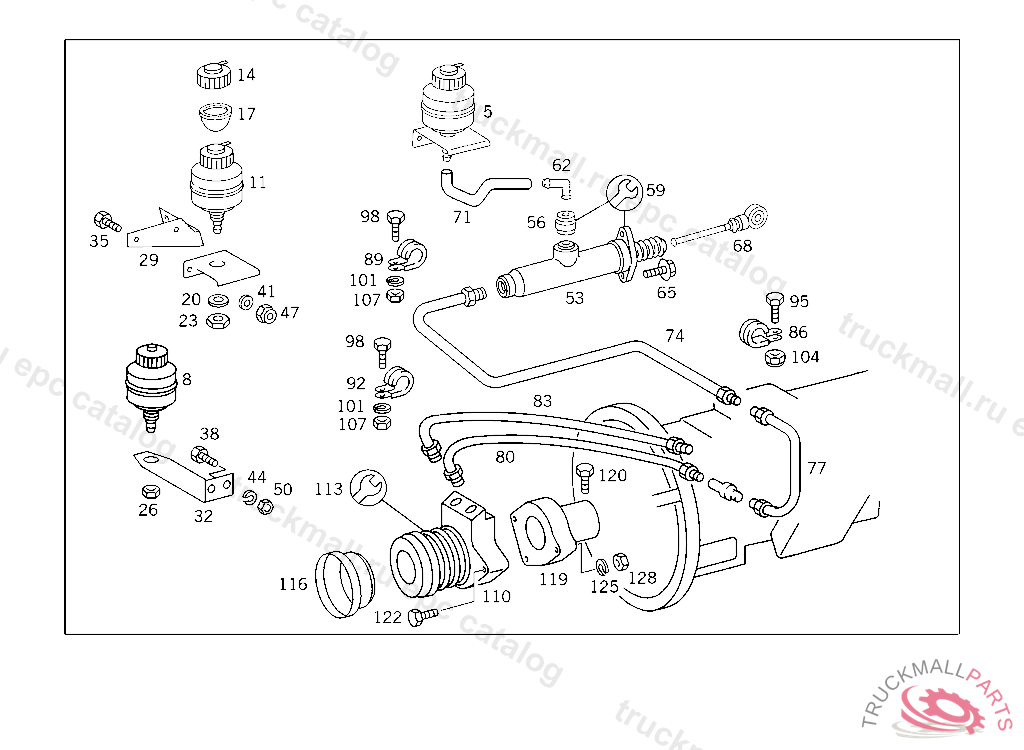

Поз.
Артикул
Описание
5
RESERVOIR (RESERVOIR)
11
RESERVOIR WITH LOCKING CAP
14
FILLER CAP
17
STRAINER
20
WASHER
23
NUT CONTROL ARM TO REAR AXLE
29
35
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
41
WASHER PLUG SOCKET TO BRACKET
47
NUT PUMP TO BRACKET
53
MASTER CYLINDER , Replaced By: A3882957206
53
MASTER CYLINDER , Replaced By: A0012959706
53
MASTER CYLINDER CLUTCH M14X1,D 561822
56
PLUG
59
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER,5 366604
59
CYLINDER. REPAIR KIT REPAIR KIT TO 384 295 70 06
62
INTERMEDIATE PIECE , Replaced By: A0002950036
65
SCREW
68
ROD CLUTCH PEDAL
71
HOSE MASTER CYLINDER,OIL TANK,HYDRAULIC LINES
74
77
HOSE FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER
80
OIL PIPE SLAVE CYLINDER
83
OIL PIPE SLAVE CYLINDER
86
CLAMP ,K 147121, Replaced By: N000000000319
86
95
SCREW CABLE HARNESS MOUNTING M6X16
104
NUT PUMP TO BRACKET
110
SLAVE CYLINDER
113
PART NAME MISSING GASKET KIT,236102
116
PART NAME MISSING PROTECTIVE CAP
119
SPACER TUBE CLUTCH SLAVE CYLINDER
120
PART NAME MISSING SCREW 1/4-20 X 5/8 G8
122
PART NAME MISSING SCREW 5/16-18 X 1 3/4 G8
128
PART NAME MISSING NUT
999
PART NAME MISSING RELEASE BEARING,236102
999
PART NAME MISSING MOUNTING PARTS
