Главная
›
Mercedes
›
TRUCK
›
L 710
›
688.152
›
30 CONTROL
›

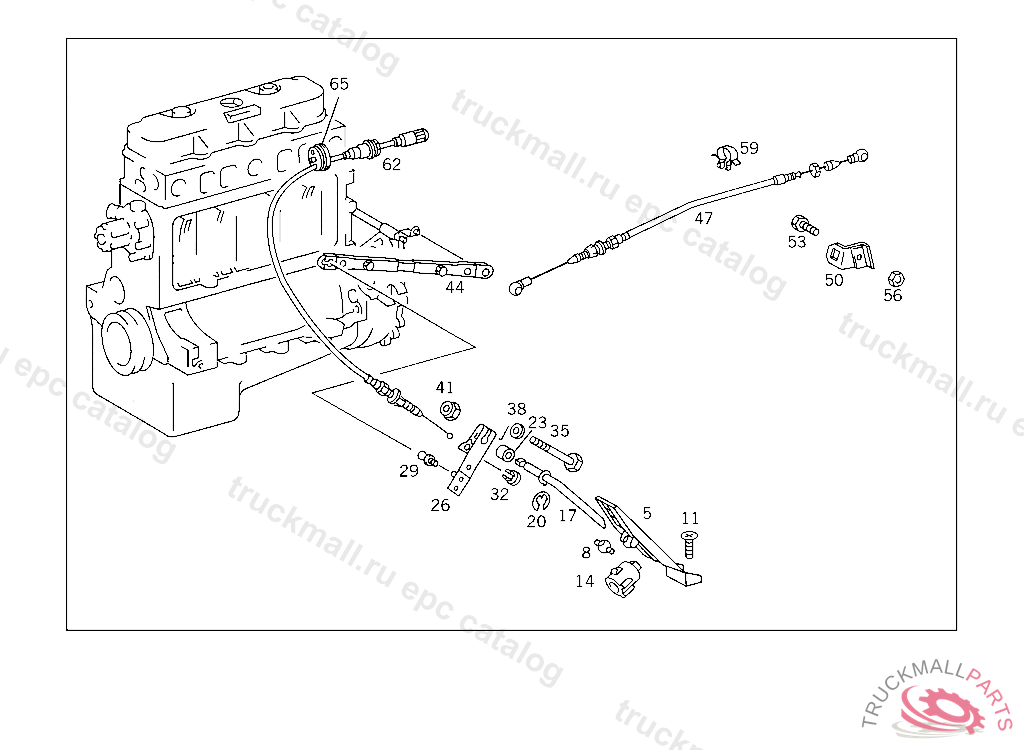

060 ACCELERATOR PEDAL CONTROL IL. 1
Mercedes A3093010022 - ШАРНИР
L 710 688.152
30 CONTROL - 060 ACCELERATOR PEDAL CONTROL IL. 1
Поз.
Артикул
Описание
5
A3843007004
ACCELERATOR PEDAL
8
A3093010022
JOINT
11
N000965006064
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M6X12
14
A1263010141
STOP FULL THROTTLE
17
A3843007625
LEVER (PEDAL LEVER)
20
N006799009002
LOCK PLATE
23
A3863017050
BUSHING ,B 892893
26
A6883007025
LEVER
29
N071803008200
BALL PIVOT. BALL STUD
32
A3093020050
BUSHING CONTROL LEVER,B 892892
35
N000931006197
SCREW BRACKET TO FRAME
38
N000125006420
WASHER PLUG SOCKET TO BRACKET
41
N913004006001
NUT PUMP TO BRACKET
47
A6883007130
WIRE CABLE
50
A6673000040
BRACKET
53
N000933006230
SCREW OVERLOAD PROTECTOR TO BRACKET
56
N000934006006
NUT
59
A0009956044
CLAMP BOWDEN CABLE TO CAB
62
A3863007132
WIRE CABLE MANUAL IDLING CONTROL
62
A6923007032
WIRE CABLE MANUAL CONTROL
65
A6679970681
