Mercedes A6592500113 - Возвратн. рычаг

G 200-16/11,9 + WSK 400 +RETARDER 715.220

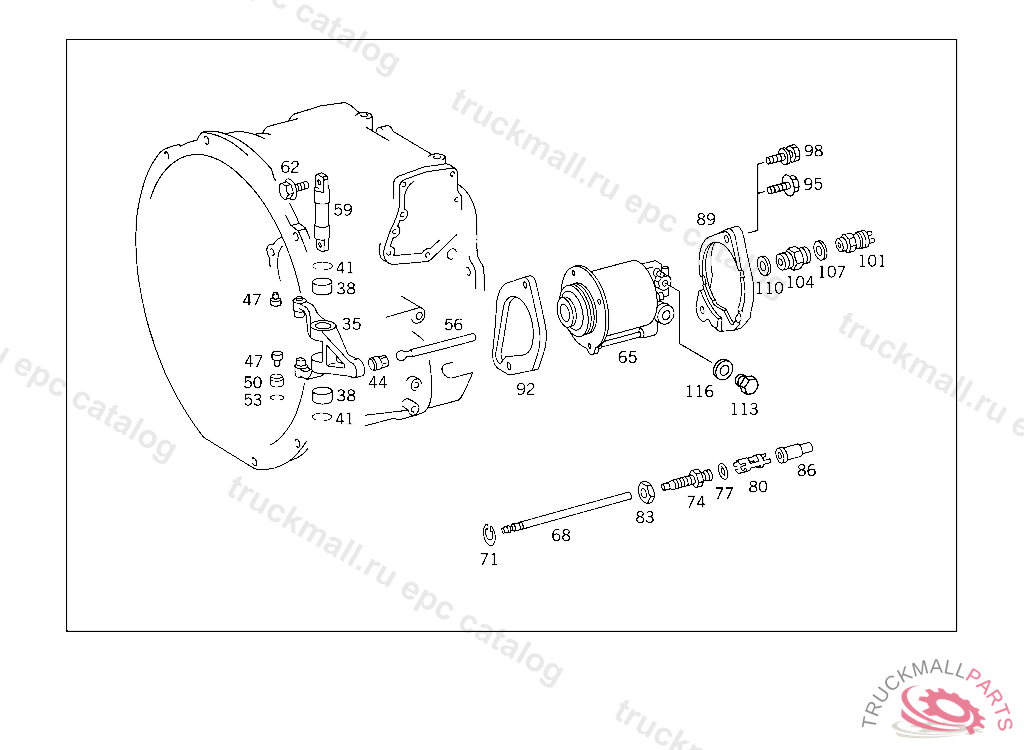

25 CLUTCH - 180 CLUTCH PEDAL AND RELEASE PARTS IL. 2

Поз.
Артикул
Описание
35
A6592500113
RELEASE LEVER CLUTCH BOOSTER
38
A0019928401
BUSHING FRONT AND REAR
41
N912009037200
SNAP RING FRONT AND REAR
44
A0002540335
BEARING TOP
47
A6592500069
ROLLER
50
A0029920601
BUSHING
53
N007993012100
SNAP RING FRONT AND REAR,K 281331
56
A6592950074
PIN RELEASE LEVER,K 062276
59
A6592540006
SPINDLE RELEASE LEVER
62
N914114010012
SCREW RELEASE LEVER TO BELL HOUSING
65
A0002951818
CLUTCH BOOSTER ,340811
65
A0002951618
CLUTCH BOOSTER ,340810
68
A6552540174
PIN CLUTCH BOOSTER
71
N006799005002
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
71
N006799005004
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
74
A6502520171
SCREW WEAR INDICATOR
77
A0139971448
SEAL RING WEAR INDICATOR
80
A6552540027
POINTER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6502540127
83
N000439016203
NUT WEAR INDICATOR
86
A6509880135
CAP WEAR INDICATOR
89
A3562950240
BRACKETWABCO,K 037846
92
A6552510010
COVER PLATETO 000 295 02 18 , 000 295 09 18
95
N914126010052
SCREW CLUTCH BOOSTER TO BELL HOUSING,K 037846
101
A0035458514
SWITCH CLUTCH BOOSTER INDICATOR
104
A0029907468
FITTING SWITCH TO CLUTCH BOOSTER
107
N007603012104
SEAL RING
110
N007603014100
SEAL RING
