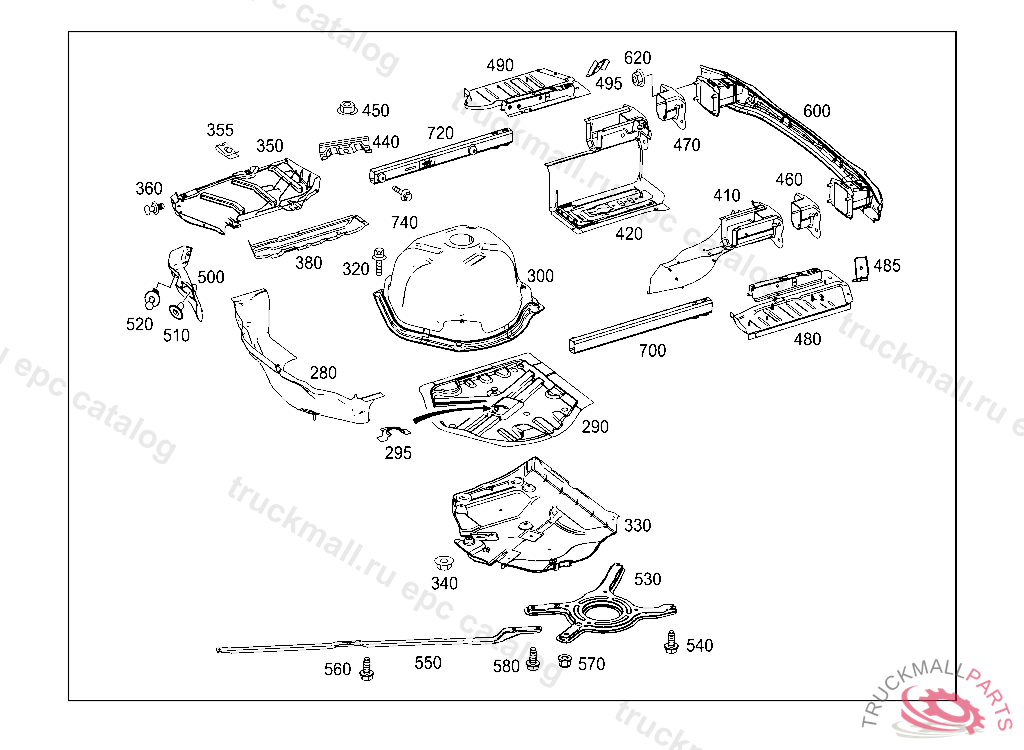

Поз.
Артикул
Описание
280
CLOSING WALL FRONT SPARE TIRE WELL
290
SPARE WHEEL RECESS
295
CONSOLE
300
SPARE WHEEL RECESS
300
SPARE WHEEL RECESS
320
HEXALOBULAR BOLT SPARE WHEEL WELL
330
COVER, REAR-END FLOOR SPARE WHEEL WELL
340
PLASTIC NUT. NUT
380
STIFFENING SPARE WHEEL WELL,RIGHT
410
STRIKING PLATE LEFT
420
STRIKING PLATE RIGHT
440
RAIL BATTERY FASTENING
450
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
460
CONSOLE LEFT
470
CONSOLE LEFT
480
FLOOR PANEL REAR LEFT
485
STIFFENING REAR LEFT
490
FLOOR PANEL REAR RIGHT
495
STIFFENING REAR RIGHT
530
BRACKET
530
BRACKET
540
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
550
STRUT REAR LEFT
550
STRUT REAR RIGHT
560
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
570
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
580
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
600
REAR CROSS MEMBER REAR
620
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
700
REINFORCEMENT LEFT
720
REINFORCEMENT RIGHT
740
SCREW-AND-WASHER ASSEMBLY REINFORCEMENT FASTENING M10X25
