Mercedes A0089931901 - Пружина

ZF 6 HP 602 C 721.971

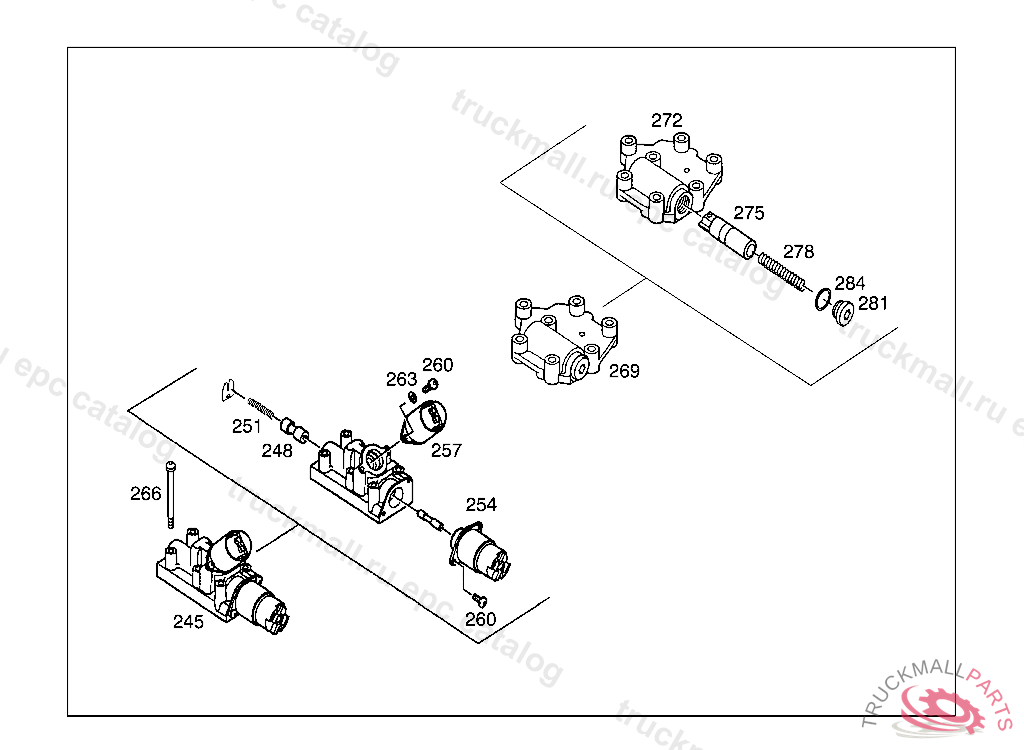

27 ZF-ECOMAT AUTOMATIC TRANSMISSION - 500 CENTRAL VALVE BODY ASSEMBLY AND ATTACHMENT PARTS IL. 4

Поз.
Артикул
Описание
245
A0002777035
VALVE (THROTTLE VALVE)
248
A0002778331
PISTON
251
A0099931901
SPRING VALVE, 721.151047234 721.152051805 721.176050233 721.181052148 721.182055148 721.183055795 721.971060956
251
A0089930101
SPRING
251
A0079931001
SPRING , Replaced By: A0089930101
254
A0002772398
LIFTING MAGNET
257
A0002777735
VALVE (SOLENOID VALVE)
260
A0039901012
SCREW SOLENOID VALVE TO VALVE M 5X12
263
N000433005304
WASHER BOOT TO CAB FLOOR
266
A0039901112
SCREW VALVE TO VALVE M 6X80
266
A0039900812
SCREW PLATE TO VALVE M 6X65
269
A0002771536
VALVE PART
272
A0002770801
VALVE BODY ASSEMBLY VALVE HOUSING
275
A0002778331
PISTON
278
A0089931901
SPRING VALVE,052255
278
A0089930101
SPRING
281
N000908016008
SCREW PLUG
284
N007603016105
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
A0002760017
SENDER UNIT
