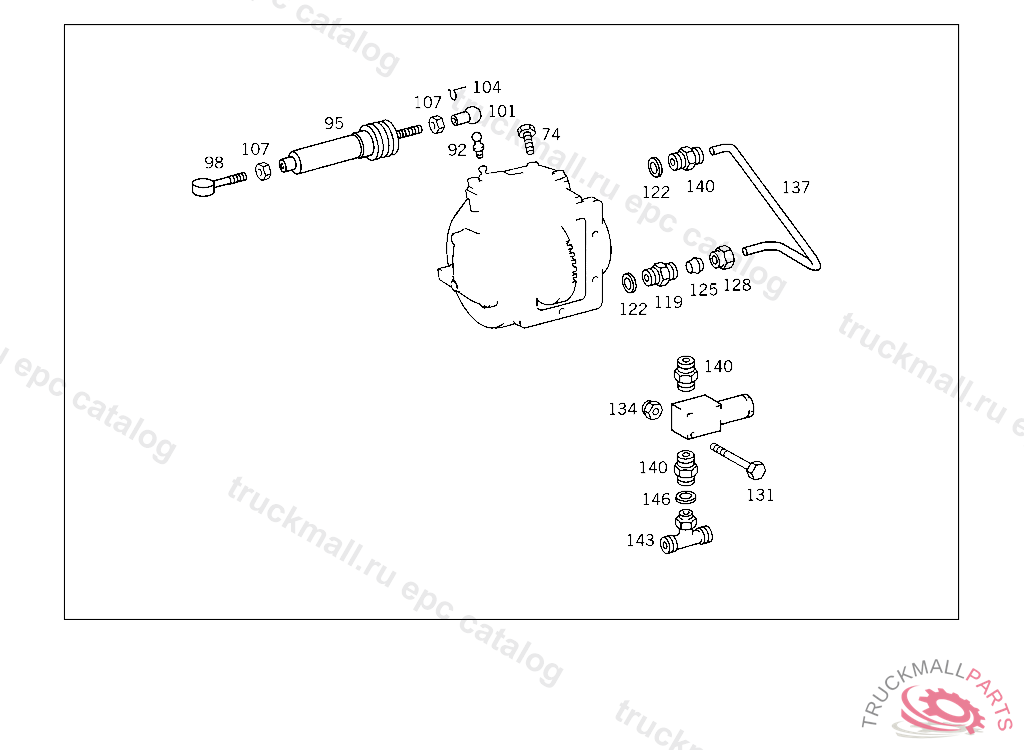

Поз.
Артикул
Описание
74
SCREW COVER TO SHIFT CASE
92
BALL PIVOT BOTTOM B13X5 MM
95
CYLINDER P.T.O. CONTROL
98
BALL SOCKET CYLINDER
101
BALL SOCKET ROD TO BALL PIVOT
104
SECURING CLIP. CIRCLIP
107
NUT
119
FITTING SHUT-OFF VALVE,CONNECTION: "40"
122
SEAL RING PNEUMATIC VALVE
122
SEAL RING , Replaced By: N007603010110
125
GLAND , Replaced By: A0019901667
125
SEAL CONE
128
UNION NUT
131
SCREW , Replaced By: N000933006151
131
SCREW DISTRIBUTOR TO CAB
134
NUT , Replaced By: N913004006001
134
NUT PUMP TO BRACKET
137
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
140
FITTING SHUT-OFF VALVE,CONNECTION: "40"
140
FITTING 3/2-WAY VALVE,CONNECTION: "30"
143
T-FITTING. FITTING AT INJECTION PUMP
146
SEAL RINGTO 000 429 24 30
999
GASKET GOVERNOR, TO 000 270 18 01,000 270 20 01
999
P.T.O. , Replaced By: A3852700009
999
P.T.O. , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3852700109
999
P.T.O. , USE PARTS FROM: SA 20257
999
P.T.O. , USE PARTS FROM: SA 20257
