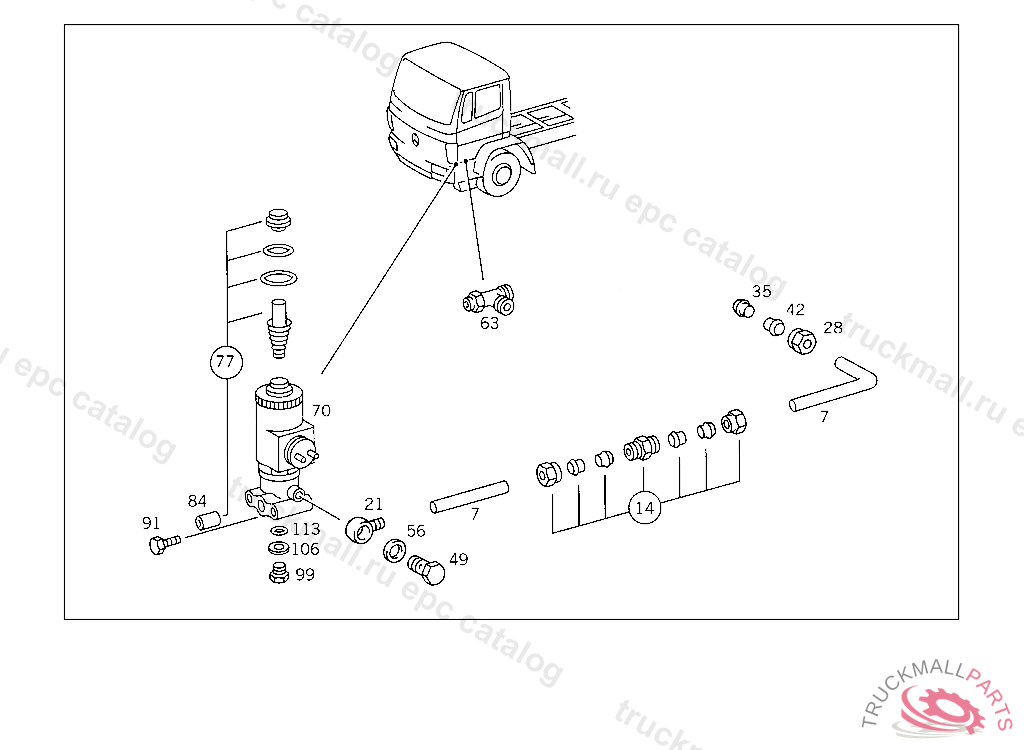

Поз.
Артикул
Описание
7
PLASTIC PIPE RISING PIPE 4X6 MM
7
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
14
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
21
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
28
UNION NUT
35
SLEEVE LEAK LINE
42
GLAND , Replaced By: A0019901667
42
SEAL CONE
49
HOLLOW SCREW HEATING CONNECTION
56
SEAL RING LINE CONNECTION
63
T-FITTING. FITTING AT INJECTION PUMP
70
VALVE (3/2-WAY SOLENOID VALVE) EKS
70
VALVE , Replaced By: A0049975736
70
VALVE (SOLENOID VALVE)
70
VALVE (3/2-WAY SOLENOID VALVE) WABCO
70
VALVE (3/2-WAY SOLENOID VALVE) KNORR
77
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
84
SEAL RING VALVE TO VALVE
91
SCREW 3/2-WAY VALVE M 8X180,5 377330
91
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
91
SCREW 3/2-WAY VALVE TO BRACKET
91
SCREW BRACKET TO 3/2-WAY VALVE
99
SCREW PLUGROCKINGER,TYP 59 U150
99
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
106
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
106
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
113
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
BRACKET LINE TO TRANSMISSION
999
SEAL RINGWABCO
999
GASKET KITKNORR
999
LOOM TIE LINE MOUNTING 280 MM
