Mercedes N308676018010 - Болт

VL 3/7-5 730.009

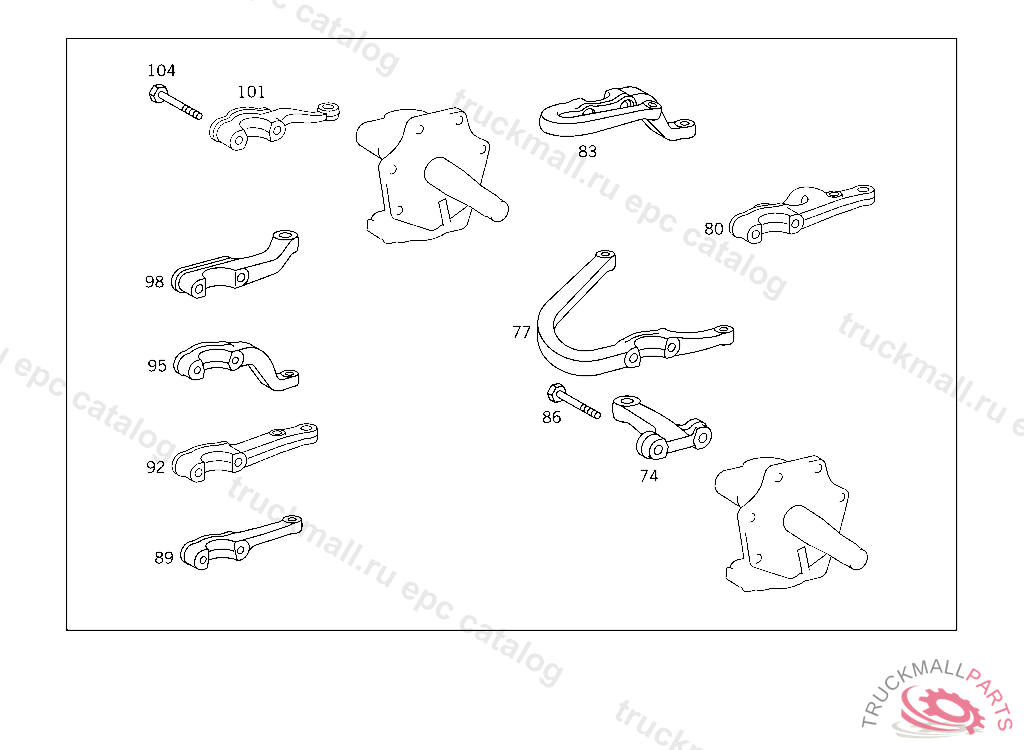

33 FRONT AXLE - 250 AXLE CASING,STEERING,KNUCKLES,TIE ROD IL. 2

Поз.
Артикул
Описание
74
A3853380702
STEERING ARM
74
A3853381001
STEERING ARM
86
A3839900219
SCREW STEERING ARM TO STEERING KNUCKLE M18X1,5X70,877024 NOT USED
86
N308676018010
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
86
N000960018111
SCREW , Replaced By: N308676018010
95
A3853380806
STEERING ARM LEFT AND RIGHT
98
A3853380805
STEERING ARM LEFT STEERING KNUCKLE
104
N308765018001
SCREW BEARING BRACKET TO SIDE MEMBER M 18X1,5X90,K 164364
104
A3839900119
SCREW STEERING ARMS TO FRONT AXLE M 18X100
999
A0003300885
BOOT FIXED PART OF JOINT
999
A0003301085
BOOT FIXED PART OF JOINT
