Поз.
Артикул
Описание

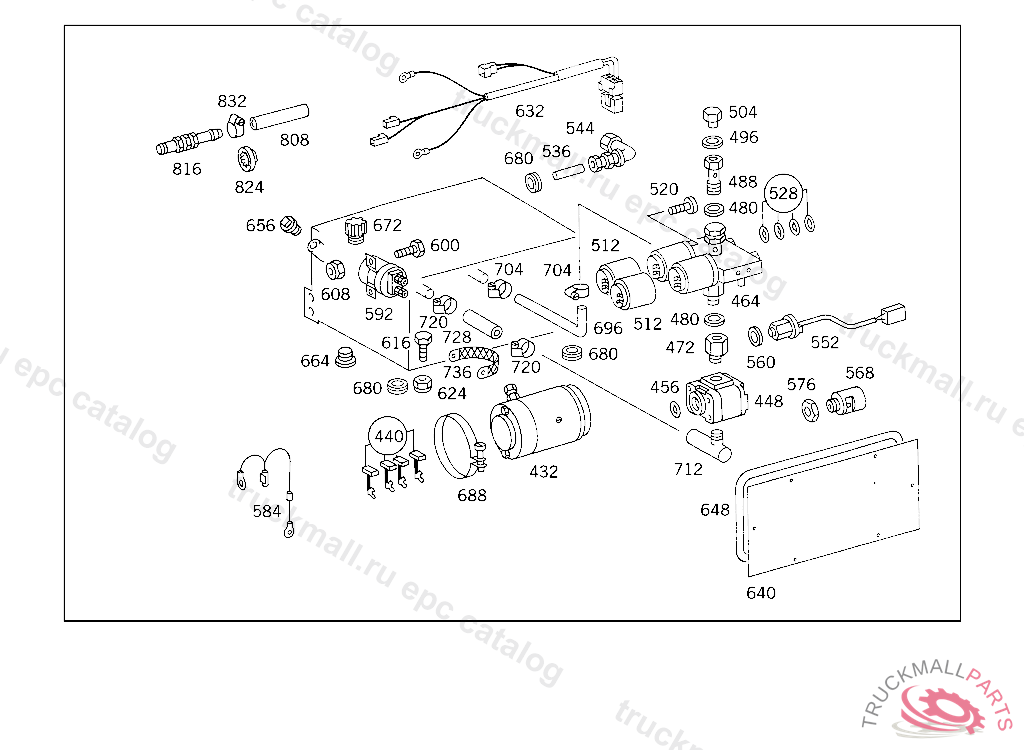

432
MOTORSWE
432
MOTORBOSCH
440
CARBON BRUSH PARTS KIT BOSCH
440
CARBON BRUSH PARTS KIT SWE
448
PUMPBOSCH
448
PUMPSWE
456
SEAL RINGBOSCH
456
SEAL RINGSWE
464
VALVE (CONTROL VALVE)
464
VALVE , Replaced By: A0005505355
464
VALVE , Replaced By: A0005504355
472
VALVE (CHECK VALVE) BOSCH
472
VALVE (CHECK VALVE) SWE
480
SEAL RING VALVE TO VALVE,K 025179
480
SEAL RING , Replaced By: N007603018101
488
HOLLOW SCREW SOLENOID VALVE
496
SEAL RING SOLENOID VALVE
504
SCREW PLUG
504
SCREW , Replaced By: A0019976130
512
MAGNET
520
SCREW
528
SEAL RING PARTS KIT SWE
536
PIPE SOLENOID VALVE
544
SCREW CONNECTION SOLENOID VALVE
552
SWITCH (PRESSURE SWITCH) 140 BAR
552
SWITCH (PRESSURE SWITCH) 70 BAR
560
SEAL RING PRESSURE SWITCH
568
T-FITTING PRESSURE SWITCH
576
NUT PRESSURE SWITCH
584
CONTROL UNIT THERMAL SWE
592
CONTACTOR
600
SCREW IN CASE OF SUBSEQUENT INSTALLATION
608
NUT TWO-WAY VALVE TO BRACKET
616
SCREW COVER PLATE TO COVER PLATE M 6 X 12
616
SCREW , Replaced By: N304017006018
624
NUT , Replaced By: N913004006001
624
NUT PUMP TO BRACKET
632
CABLE HARNESS ELECTRIC
640
COVER SWITCH BOX
640
COVER SWITCH BOX
648
GASKET COVER TO SWITCH BOX
656
SCREW PLUG OIL TANK
664
PLUG OIL TANK
672
FILTER HOUSING OIL TANK
680
GROMMET OIL TANK
688
BRACKET ENGINE
696
HOSE FROM OIL TANK TO SOLENOID VALVE, ORDER BY THE METER
704
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
704
CLAMP , Replaced By: N916017011001
712
LINE OIL TANK SWE
712
LINE OIL TANK BOSCH
720
CLAMP , Replaced By: N000000000667
720
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
728
HOSE
736
GROUND STRAP ENGINE SWE
808
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
816
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
824
LOCK REAR AXLE BRAKE HOSE,K 181360
832
CLAMP HOSE TO FITTING AND TO OIL TANK
999
AXLE SUSPENSION LIFTING DEVICE USED FOR TRAILING AXLE
999
AXLE SUSPENSION , Replaced By: A0003910027, +001A0003900638
999
GREASE NIPPLE PROTECTIVE TUBE
