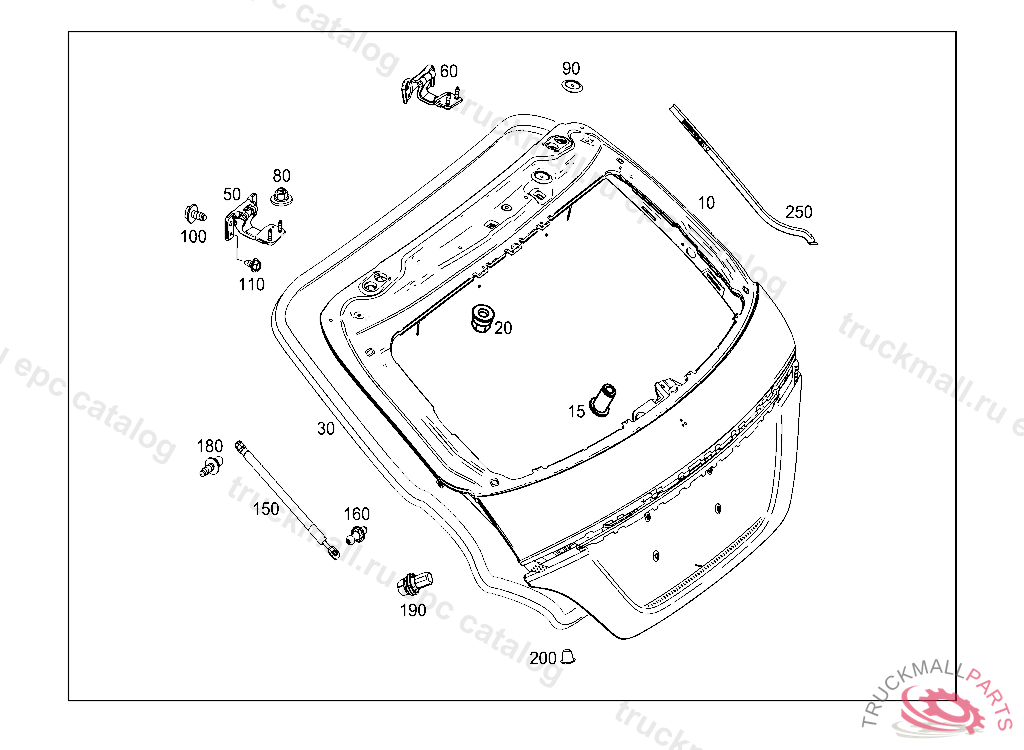

Поз.
Артикул
Описание
10
REAR DOOR
15
RIVETED NUT. RIVET NUT BRACKET TO ORNAMENTAL GRILLE M6X14.5
20
HEXAGON NUT W FLANGE. NUT CROSS MEMBER TO CONSOLE
30
SEALING REAR DOOR REAR PANEL DOOR
50
HINGE REAR PANEL DOOR,LEFT
60
HINGE REAR PANEL DOOR,RIGHT
80
MULTIPLE NUT FOR HINGE TO B-PILLAR AT LEFT M8
90
STOP PLUG E-RECESS CENTER 30 MM
100
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
110
SCREW
150
GAS PRESSURE STRUT REAR PANEL DOOR
160
BALL PIVOT AT REAR PANEL DOOR
180
BALL PIN
190
DOOR RETAINER REAR PANEL DOOR
200
STOP PLUG BATTERY CASE 6.5 MM
250
WATER BAFFLE REAR PANEL DOOR,RIGHT
250
WATER BAFFLE REAR PANEL DOOR,LEFT
